Coatesville, Indiana, located in the Northern Temperate Zone, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the strongest performance at 6.20 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.47 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline to 3.68 kWh per day per kW, while winter presents the most challenging period with just 2.16 kWh per day per kW of installed capacity. This winter output represents less than 40% of the summer peak, highlighting the location's dependence on seasonal weather patterns.

Optimal Installation Configuration

For maximum year-round energy production at Coatesville, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in this Indiana location can significantly impact solar energy generation:

• Frequent cloud cover and overcast conditions, particularly during autumn and winter months
• Snow accumulation on panels during winter, which can block sunlight entirely
• High humidity levels that can reduce solar panel efficiency
• Severe weather events including thunderstorms and potential hail damage

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can help: Installing panels at the recommended 34-degree tilt angle naturally helps snow slide off more easily than flatter installations. Regular cleaning schedules become particularly important during autumn when falling leaves and debris can accumulate on panels. Choosing high-quality panels with anti-reflective coatings can help capture more available light during cloudy periods. Installing micro-inverters or power optimizers rather than string inverters can minimize the impact when individual panels are partially shaded or covered. Proper spacing between panel rows prevents shadowing issues, while selecting panels rated for extreme weather conditions helps ensure longevity. Consider installing monitoring systems to quickly identify and address performance issues caused by weather-related problems. The location's moderate solar potential makes it suitable for solar installation, but property owners should plan for the significant seasonal variation in output and budget accordingly for periods of reduced generation during the darker months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

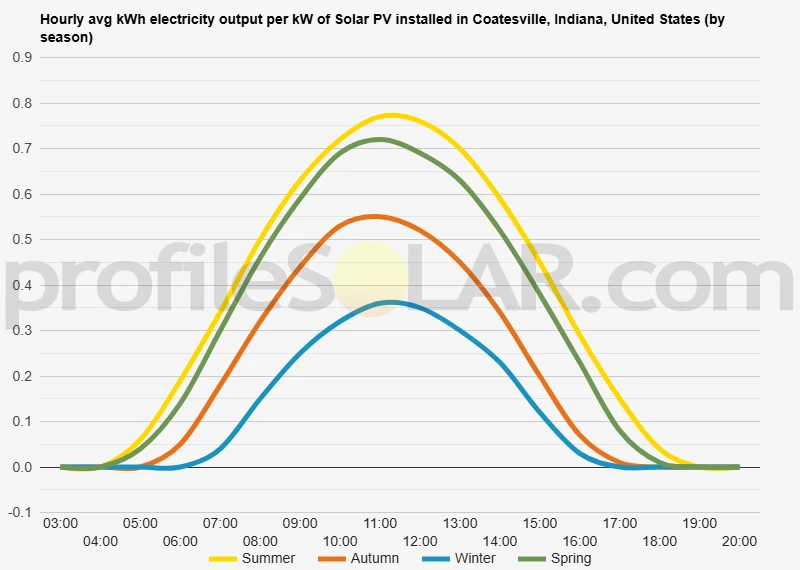

Solar output per kW of installed solar PV by season in Coatesville, Indiana

Seasonal solar PV output for Latitude: 39.6903, Longitude: -86.6682 (Coatesville, Indiana, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Coatesville, Indiana, United States

To maximize your solar PV system's energy output in Coatesville, Indiana, United States (Lat/Long 39.6903, -86.6682) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Coatesville, Indiana, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Coatesville, Indiana, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Coatesville, Indiana, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Coatesville, Indiana, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Coatesville, Indiana, United States

Topographical Features Around Coatesville

The area surrounding Coatesville, located in west-central Indiana, is characterized by gently rolling terrain typical of the broader Midwest agricultural region. The landscape consists primarily of low hills and shallow valleys that were shaped by glacial activity thousands of years ago. Elevation changes throughout the region are generally modest, with most areas ranging between 700 and 900 feet above sea level. The topography features a mix of agricultural farmland interspersed with patches of deciduous woodland. Many fields are relatively flat to gently sloping, having been cultivated for decades and modified through farming practices. Small creeks and drainage channels wind through the landscape, creating minor valleys and depressions that follow natural water flow patterns.

Terrain Characteristics for Solar Development

The rolling nature of the terrain around Coatesville presents both opportunities and considerations for large-scale solar installations. South-facing slopes throughout the region could provide excellent solar exposure, while the gentle gradients make construction and maintenance activities more feasible than in areas with steep topography. The agricultural character of much of the surrounding land means there are extensive open areas with minimal tree coverage. These cleared fields offer substantial space for solar arrays without requiring significant vegetation removal. The relatively stable soil conditions, developed over agricultural use, provide good foundation potential for solar mounting systems.

Most Suitable Areas for Large-Scale Solar

The most promising locations for extensive solar photovoltaic installations would be the larger agricultural fields situated on south-facing gentle slopes. These areas combine optimal solar orientation with practical accessibility for construction equipment and ongoing maintenance operations. Fields that have been in continuous agricultural use typically have established access roads and electrical infrastructure nearby, reducing development costs. Areas with minimal tree coverage and few existing structures would be particularly well-suited for solar development. The gently undulating farmland south and southeast of Coatesville offers some of the best combinations of favorable topography and land availability. These locations benefit from clear sightlines and reduced shading concerns that might affect solar panel performance. Flatter agricultural areas, while not providing the optimal tilt that natural south-facing slopes offer, could accommodate larger continuous installations. These locations might be preferable for developers seeking to install extensive solar farms with consistent panel orientation and simplified maintenance access throughout the installation.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
