Chatsworth, Georgia, located in the Northern Sub Tropics at coordinates 34.7659, -84.7699, offers a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The location shows strong seasonal contrasts in solar energy production. Summer delivers the highest output at 6.27 kWh per day per kW of installed solar capacity, making it the peak production season. Spring follows closely with 5.83 kWh per day per kW, representing nearly equivalent performance to summer months. Autumn production drops to 4.36 kWh per day per kW, while winter shows the most challenging conditions with only 2.69 kWh per day per kW. This winter figure represents less than half the summer production, highlighting the importance of system sizing calculations that account for seasonal variations.

Optimal Installation Configuration

For maximum year-round energy production at this Chatsworth location, solar panels should be installed at a fixed tilt angle of 30 degrees facing south. This angle has been calculated using weighted daily solar elevation angles and NASA solar irradiance data to optimize total annual output across all seasons.

Local Environmental Challenges

Several environmental and weather factors in the Chatsworth area can significantly impact solar production:

• Frequent thunderstorms and severe weather during summer months can reduce solar irradiance and potentially damage equipment
• High humidity levels typical of the Northern Sub Tropics can create haze that reduces solar panel efficiency
• Heavy tree cover common in North Georgia can create shading issues
• Ice storms during winter months can temporarily block panels and potentially cause damage

Preventative Measures for Enhanced Performance

To maximize solar energy production despite these challenges, several installation strategies prove beneficial:

• Install panels with adequate spacing and ventilation to combat humidity-related efficiency losses
• Conduct thorough site surveys to identify and minimize shading from trees and structures
• Use mounting systems rated for high wind loads to withstand severe weather
• Include micro-inverters or power optimizers to minimize impact when individual panels are shaded or soiled
• Plan for regular cleaning schedules, especially after storms or during high-pollen seasons

Regular maintenance becomes particularly important in this climate, including prompt removal of debris after storms and periodic cleaning to remove accumulated pollen, dust, and organic matter that can reduce panel efficiency. Overall, while Chatsworth presents some environmental challenges for solar installations, proper system design and maintenance practices can help ensure reliable energy production throughout the year, with particularly strong performance during the extended spring and summer seasons.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

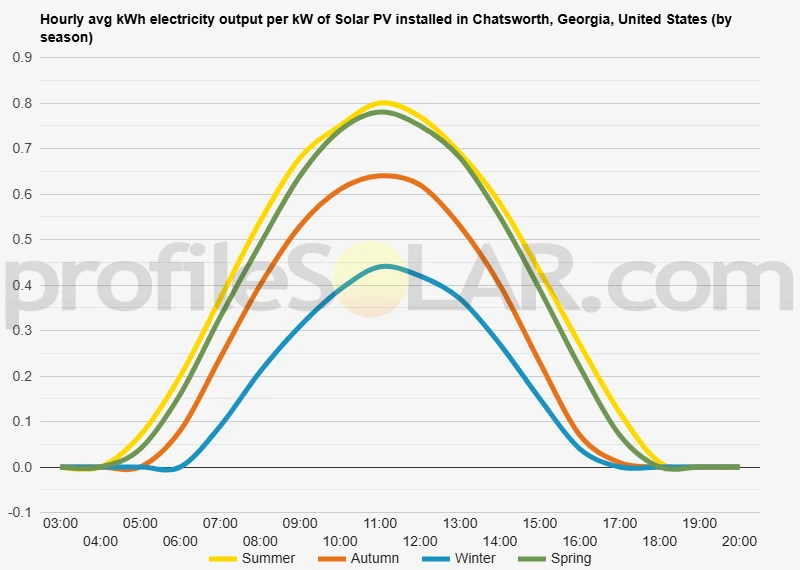

Solar output per kW of installed solar PV by season in Chatsworth, Georgia

Seasonal solar PV output for Latitude: 34.7659, Longitude: -84.7699 (Chatsworth, Georgia, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Chatsworth, Georgia, United States

To maximize your solar PV system's energy output in Chatsworth, Georgia, United States (Lat/Long 34.7659, -84.7699) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chatsworth, Georgia, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chatsworth, Georgia, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° South in Summer	40° South in Autumn	50° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chatsworth, Georgia, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chatsworth, Georgia, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chatsworth, Georgia, United States

Topographical Features Around Chatsworth

Chatsworth sits in the scenic foothills of the North Georgia mountains, positioned within Murray County in the northwestern portion of the state. The landscape around this area represents a transitional zone between the Appalachian Mountains to the north and the rolling Piedmont region to the south. The terrain features a mixture of gentle hills, valleys, and moderately elevated ridgelines that create an undulating topography characteristic of the southern Appalachian foothills.

The elevation around Chatsworth varies considerably, with the town itself positioned at approximately 750 feet above sea level. The surrounding countryside includes numerous ridges and valleys, with some peaks reaching over 1,500 feet in elevation. The Cohutta Mountains lie to the northeast, while Fort Mountain rises prominently to the southeast. These mountainous features create a backdrop of forested hills and create natural drainage patterns that flow generally southward toward the Conasauga River system.

The local topography includes several significant water features, including the Conasauga River which meanders through the valley systems, along with numerous smaller creeks and tributaries. These waterways have carved gentle valleys through the landscape over millennia, creating areas of relatively flat bottomland interspersed with rolling hills and steeper slopes leading up to the ridgelines.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Chatsworth would be found in the broader valley areas and on south-facing slopes with gentle gradients. The bottomlands along the Conasauga River corridor offer some of the most favorable terrain, featuring relatively flat topography that would minimize grading costs and maximize panel efficiency through optimal positioning.

Agricultural areas southwest and southeast of Chatsworth present excellent opportunities for solar development. These locations typically feature cleared land with gentle slopes, existing road access, and proximity to electrical infrastructure. The rolling farmland in these directions provides natural south-facing exposures while maintaining manageable grade changes that work well for solar array installation.

Ridge tops with southern exposures could also serve as viable locations, particularly those that have been previously cleared for agriculture or other development. However, the steeper terrain on many ridgelines would require more extensive site preparation compared to valley locations. Areas with slopes exceeding 15-20 degrees would generally be less economical for large-scale solar development due to increased installation complexity and reduced panel efficiency.

The presence of forested areas throughout much of the region means that suitable sites would likely require some degree of clearing, though many existing agricultural areas could accommodate solar installations with minimal environmental impact. Transportation access via existing county roads and state highways provides good connectivity for construction and maintenance activities, while the relatively stable geology of the region offers solid foundation conditions for solar mounting systems.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
