Antioch, Illinois, located in the Northern Temperate Zone, presents a mixed picture for solar energy generation throughout the year. This location experiences significant seasonal variations in solar output, which impacts the overall efficiency of solar PV systems.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Antioch, with an impressive 6.30 kWh per day output for each kW of installed solar capacity. Spring follows as the second-best season, generating 5.32 kWh per day. However, the colder months see a substantial drop in production, with autumn yielding 3.35 kWh per day and winter falling to a mere 2.29 kWh per day.

These figures highlight the stark contrast between the warm and cold seasons, with summer producing nearly three times the energy of winter. This variation underscores the importance of planning for reduced output during the colder months.

Optimal Panel Placement

To maximize year-round solar production in Antioch, fixed solar panels should be tilted at a 37-degree angle facing south. This optimal angle takes into account the location's latitude and the Earth's elliptical orbit, ensuring the best possible exposure to sunlight throughout the year.

Environmental Considerations

While Antioch's location is generally favorable for solar energy, there are some environmental factors that could impact solar production:

• Snow accumulation in winter can significantly reduce panel efficiency
• Frequent cloud cover, especially during fall and winter months, may decrease solar output

To mitigate these issues, consider installing panels at a steeper angle to encourage snow sliding off and using high-efficiency panels that perform better in low-light conditions. Regular panel cleaning and maintenance can also help ensure optimal performance year-round.

In conclusion, while Antioch experiences substantial seasonal variations in solar output, proper panel placement and preventative measures can help maximize energy production throughout the year. The location is particularly well-suited for solar energy generation during spring and summer months, making it a viable option for those looking to invest in renewable energy.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

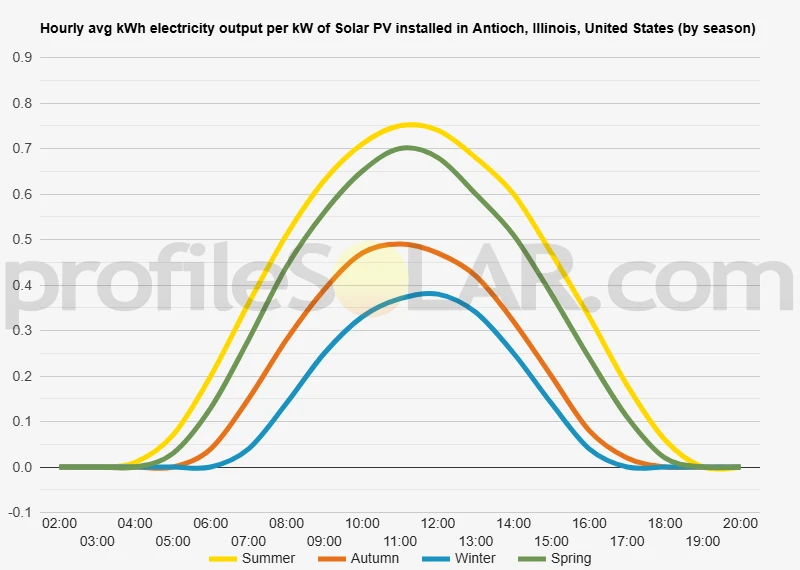

Solar output per kW of installed solar PV by season in Antioch, Illinois

Seasonal solar PV output for Latitude: 42.4772, Longitude: -88.0956 (Antioch, Illinois, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 37° South in Antioch, Illinois, United States

To maximize your solar PV system's energy output in Antioch, Illinois, United States (Lat/Long 42.4772, -88.0956) throughout the year, you should tilt your panels at an angle of 37° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Antioch, Illinois, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Antioch, Illinois, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 37° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Antioch, Illinois, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Antioch, Illinois, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Antioch, Illinois, United States

The topography around Antioch, United States, located at latitude 42.4772 and longitude -88.0956, is characterized by gently rolling terrain typical of the Midwest region. This area, situated in northeastern Illinois near the Wisconsin border, features a mix of low hills, shallow valleys, and flat plains. The landscape has been shaped by glacial activity during the last ice age, resulting in a variety of glacial deposits and formations. The region surrounding Antioch is part of the Chain O'Lakes area, which includes numerous interconnected lakes and wetlands. These water bodies contribute to the area's diverse topography, creating a patchwork of land and water features. The elevation in this region generally ranges from about 700 to 900 feet above sea level, with subtle variations across the landscape.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar PV projects in this region would be relatively flat, open areas with minimal shading from trees or structures. These conditions are more likely to be found in agricultural lands or former farmlands surrounding Antioch. The gently rolling terrain in the area presents both opportunities and challenges for solar development. While some slopes may be suitable for solar panel installation, steeper hillsides would be less ideal due to increased costs and potential shading issues. The flatter areas between hills and in broader valleys would generally be more suitable for large-scale solar projects. It's important to note that the presence of wetlands and lakes in the region may limit the available land for solar development in some areas. However, the agricultural lands to the west and southwest of Antioch could potentially offer suitable sites for large-scale solar PV installations. These areas tend to have more expansive, open spaces with fewer natural obstacles. When selecting specific sites for solar PV projects, developers would need to consider additional factors such as proximity to existing electrical infrastructure, local zoning regulations, and environmental impact assessments. The relatively flat terrain and open spaces in the agricultural areas surrounding Antioch make this region generally favorable for solar energy development, provided other necessary criteria are met.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
