Knoxville, Illinois represents a moderately suitable location for year-round solar energy generation, though it experiences significant seasonal variation typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer provides the strongest performance at 6.34 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.21 kWh per day per kW, offering excellent conditions for solar production. Autumn shows a notable decline to 3.64 kWh per day per kW, while winter presents the most challenging conditions with only 2.28 kWh per day per kW. This represents a nearly three-fold difference between peak summer and winter production, which is typical for locations at this latitude.

Optimal Panel Configuration

For maximum year-round energy production at this Knoxville location, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in this Illinois location can impact solar energy generation:

• Snow accumulation during winter months can block panels and reduce output
• Ice formation on panels creates similar blocking effects
• Midwest weather patterns bring frequent cloud cover and storms
• Agricultural dust and pollen from surrounding farmland can coat panels
• High humidity levels can create haze that reduces solar irradiance

Preventative Measures for Better Performance

Several installation strategies can help maximize solar production despite these challenges:

• Install panels at steeper angles (like the recommended 36 degrees) to encourage snow and ice to slide off naturally
• Ensure adequate spacing between panel rows to prevent shading when snow accumulates
• Choose panels with smooth, anti-reflective coatings that resist dirt and debris buildup
• Plan for regular cleaning schedules, especially during high pollen seasons
• Install monitoring systems to quickly identify performance drops due to weather-related issues

Despite the seasonal challenges, Knoxville's location still provides reasonable solar potential, particularly during the six-month period from spring through early autumn when production levels are quite good. The key to success lies in proper system design and maintenance practices that account for the local climate conditions.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

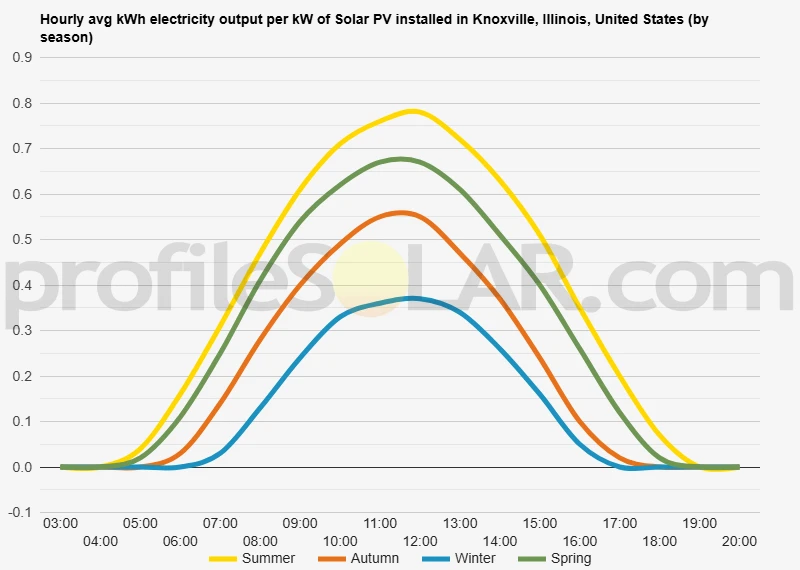

Solar output per kW of installed solar PV by season in Knoxville, Illinois

Seasonal solar PV output for Latitude: 40.9126, Longitude: -90.2845 (Knoxville, Illinois, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Knoxville, Illinois, United States

To maximize your solar PV system's energy output in Knoxville, Illinois, United States (Lat/Long 40.9126, -90.2845) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Knoxville, Illinois, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Knoxville, Illinois, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	55° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Knoxville, Illinois, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Knoxville, Illinois, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Knoxville, Illinois, United States

The topography around Knoxville, Illinois is characterized by gently rolling farmland typical of the American Midwest. This region sits within the Illinois prairie landscape, where the terrain consists primarily of low hills, shallow valleys, and expansive flat areas that were once covered by native grasslands. The elevation changes are generally modest, with gradual slopes that rarely exceed a few degrees of incline. The surrounding countryside features predominantly agricultural land use, with corn and soybean fields dominating the landscape for miles in every direction. These agricultural areas are interspersed with small woodlots, farm buildings, and rural residences connected by a network of county roads and state highways. The terrain is well-drained, with small creeks and drainage ditches managing seasonal water flow across the relatively flat topography.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the extensive flat to gently sloping agricultural areas that surround Knoxville on all sides. These areas offer several advantages for solar development, including minimal grading requirements, excellent accessibility via existing rural road networks, and proximity to electrical transmission infrastructure. The farmland to the south and west of Knoxville presents particularly favorable conditions, as these areas feature some of the flattest terrain in the region with unobstructed southern exposures. The gentle slopes in these areas typically face favorable directions for solar panel orientation, while the open agricultural landscape provides minimal shading concerns from trees or structures. Areas of former prairie land that have been converted to agriculture would also serve well for solar installations. These locations benefit from naturally level terrain that requires little site preparation, reducing development costs. The existing field boundaries and access roads provide convenient infrastructure for construction and maintenance activities. The relatively sparse population density in the rural areas surrounding Knoxville means that large tracts of land could potentially be assembled for utility-scale solar projects without significant residential impacts. The agricultural nature of the land use also suggests that property owners might be receptive to land lease arrangements that could provide alternative income streams while maintaining rural character.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
