Charleston, West Virginia, located in the United States, offers a moderately favorable environment for solar PV energy generation throughout the year. Situated in the Northern Temperate Zone at coordinates 38.3274, -81.669, this location experiences significant seasonal variations in solar energy production.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Charleston, with an impressive average daily output of 6.26 kWh per kW of installed solar capacity. Spring follows closely behind, generating 5.39 kWh/day. Autumn sees a noticeable decrease in production, averaging 3.84 kWh/day. Winter presents the greatest challenge, with output dropping to just 1.92 kWh/day per kW installed.

These figures indicate that solar energy generation in Charleston is most effective from late spring through early fall, with peak performance during the summer months. The substantial difference between summer and winter output highlights the importance of proper system sizing to ensure adequate year-round energy production.

Optimal Panel Installation

For fixed panel installations in Charleston, the ideal tilt angle to maximize year-round solar production is 33 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the location's latitude and the Earth's elliptical orbit.

Environmental and Weather Considerations

While Charleston's location is generally suitable for solar energy production, there are some environmental and weather factors that could impact solar panel efficiency:

1. Cloud cover: The region experiences frequent cloud cover, particularly in winter and early spring, which can reduce solar energy production.
2. Snowfall: Winter snowfall can temporarily cover panels, hindering energy generation.
3. Tree coverage: The area's abundant vegetation may cast shadows on solar installations.

To mitigate these challenges, consider the following preventative measures:

• Install panels at the optimal angle to promote snow sliding off
• Implement regular panel cleaning and maintenance
• Carefully plan panel placement to minimize shading from trees and structures
• Consider using microinverters or power optimizers to reduce the impact of partial shading

By addressing these factors during installation and maintenance, solar energy systems in Charleston can achieve improved efficiency and more consistent energy production throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

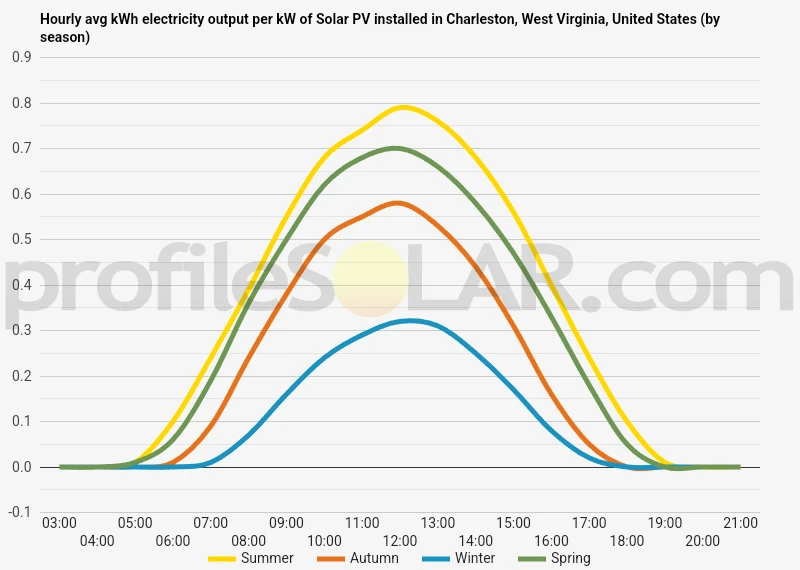

Solar output per kW of installed solar PV by season in Charleston, West Virginia

Seasonal solar PV output for Latitude: 38.3274, Longitude: -81.669 (Charleston, West Virginia, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in Charleston, West Virginia, United States

To maximize your solar PV system's energy output in Charleston, West Virginia, United States (Lat/Long 38.3274, -81.669) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Charleston, West Virginia, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Charleston, West Virginia, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° South in Summer	43° South in Autumn	53° South in Winter	31° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Charleston, West Virginia, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Charleston, West Virginia, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Charleston, West Virginia, United States

Charleston, the capital city of West Virginia, is situated in a unique topographical setting. The city lies in the Kanawha Valley, a wide river valley carved out by the Kanawha River over millions of years. This valley is surrounded by the Appalachian Mountains, creating a picturesque landscape of rolling hills and steep ridges. The immediate area around Charleston is characterized by a mix of flat bottomlands along the river and gently sloping terrain as you move away from the water. The city itself is built on both sides of the Kanawha River, with downtown occupying the relatively flat areas near the riverbanks. As you travel outward from the city center, the land begins to rise more dramatically, forming the characteristic hills of the region.

Surrounding Topography

To the north and south of Charleston, the terrain becomes increasingly rugged, with steep hillsides and narrow valleys typical of the Appalachian region. These areas are often heavily forested, with a mix of deciduous and evergreen trees covering much of the landscape. The elevation changes can be quite significant, with some nearby peaks reaching over 1,000 feet above the valley floor. To the east and west, the Kanawha Valley continues, providing a relatively flat corridor that has historically been important for transportation and development. However, this flatter area is generally confined to a narrow strip along the river, beyond which the terrain quickly becomes more hilly and challenging.

Potential for Solar PV Development

When considering areas nearby that might be suitable for large-scale solar PV installations, there are several factors to consider. The ideal location would have relatively flat or gently sloping land, good sun exposure, and proximity to existing infrastructure. Given the topography of the region, the most promising areas for solar development would likely be found in the wider, flatter portions of the Kanawha Valley, particularly to the northwest and southeast of Charleston. These areas offer more expansive tracts of land with less dramatic elevation changes, which could simplify construction and maximize solar exposure. Former industrial sites or reclaimed mine lands in the surrounding counties might also present opportunities for solar development. These areas often have the advantage of being already cleared and having some existing infrastructure, which could reduce development costs. However, it's important to note that the overall hilly nature of the region and the prevalence of forests pose challenges for large-scale solar installations. Developers would need to carefully balance the need for suitable terrain with other factors such as environmental impact, land availability, and proximity to power transmission infrastructure. In conclusion, while the topography around Charleston presents some challenges for solar PV development, there are still potential areas that could be suitable, particularly in the wider sections of the valley and on previously developed land. Careful site selection and planning would be crucial to successfully implementing large-scale solar projects in this region.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
