Waterloo, Illinois, United States shows moderate solar energy potential for year-round photovoltaic electricity generation, though seasonal variations significantly impact output levels.

Seasonal Solar Performance

The location experiences substantial seasonal differences in solar electricity production. Summer delivers the strongest performance at 6.50 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 5.30 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline to 3.94 kWh per day per kW, while winter presents the most challenging conditions with only 2.37 kWh per day per kW of production. This represents a nearly three-fold difference between peak summer and minimum winter output.

Optimal Panel Configuration

For fixed solar panel installations at this Waterloo location, the ideal tilt angle is 33 degrees facing south to maximize total year-round electricity production. This angle balances seasonal sun positions throughout the year to capture the most solar energy across all four seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors in this Northern Temperate Zone location can impact solar panel performance:

• Snow accumulation during winter months can block panels and reduce output
• Ice formation may create safety hazards and temporary production losses
• Midwest weather patterns bring frequent cloud cover and storms
• High humidity levels can reduce panel efficiency
• Dust and pollen buildup, especially during spring and summer

Preventative Measures for Better Performance

Installing solar panels with proper preventative measures can help maintain consistent energy production despite local challenges. Mounting panels at the recommended 33-degree tilt naturally helps snow slide off more easily, reducing winter accumulation problems. Regular cleaning schedules become important, particularly during pollen season and after dust storms common to the Midwest. Installing panels with adequate spacing allows for proper air circulation, helping combat humidity-related efficiency losses. Choosing high-quality panels rated for temperature fluctuations typical of this climate zone ensures better long-term performance. Professional installation with proper drainage systems prevents ice dam formation that could damage equipment during freeze-thaw cycles. The moderate solar potential at this location makes it reasonably suitable for solar installations, particularly when systems are designed to handle the significant seasonal variation and local weather patterns typical of central Illinois.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

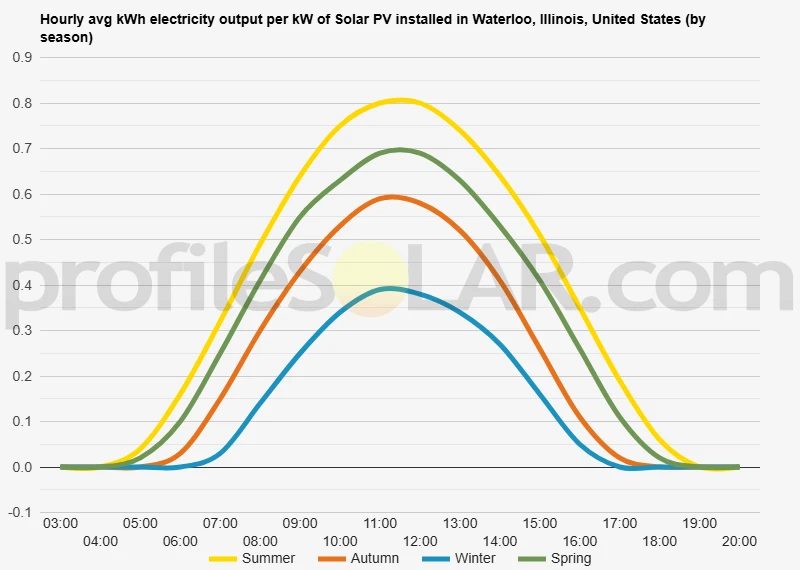

Solar output per kW of installed solar PV by season in Waterloo, Illinois

Seasonal solar PV output for Latitude: 38.3359, Longitude: -90.1498 (Waterloo, Illinois, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in Waterloo, Illinois, United States

To maximize your solar PV system's energy output in Waterloo, Illinois, United States (Lat/Long 38.3359, -90.1498) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Waterloo, Illinois, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Waterloo, Illinois, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° South in Summer	43° South in Autumn	53° South in Winter	31° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Waterloo, Illinois, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Waterloo, Illinois, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Waterloo, Illinois, United States

Topographical Features of the Waterloo Region

The area around Waterloo in Monroe County, Illinois sits within the relatively gentle terrain characteristic of the American Midwest. This region features predominantly rolling hills and broad valleys that were shaped by glacial activity thousands of years ago. The landscape consists of modest elevation changes, with the terrain gently undulating rather than presenting steep slopes or dramatic elevation differences. The Mississippi River lies approximately fifteen miles to the west, creating a broad floodplain that influences the regional topography. Moving eastward from the river valley, the land gradually rises through a series of low ridges and shallow valleys. These ridges typically run in a north-south orientation, following the general geological patterns of southern Illinois. Agricultural fields dominate much of the surrounding landscape, indicating that the terrain is sufficiently level and well-drained to support farming operations. The soil composition consists primarily of prairie soils developed over glacial deposits, creating relatively stable ground conditions. Small creeks and seasonal waterways have carved gentle depressions through the area, but these water features are typically shallow and do not create significant topographical barriers.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader ridge tops and gentle south-facing slopes throughout the region. These elevated areas offer several advantages, including good drainage, reduced risk of flooding, and minimal shading from surrounding terrain features. The agricultural fields on relatively flat or gently sloping ground present excellent opportunities for solar development. These areas typically have already been cleared of trees and other obstructions, reducing initial site preparation costs. The stable soil conditions found throughout much of the region can adequately support the foundation systems required for solar mounting structures. Areas along the higher elevations east of Waterloo would be particularly well-suited for large installations. These locations benefit from being above the influence of river valley fog and moisture, while still maintaining gentle enough slopes to allow for efficient panel arrangement and maintenance access. The broad, open valleys between the low ridges could also accommodate solar facilities, provided they are positioned away from seasonal drainage patterns and flood-prone areas. These valley locations often offer larger contiguous parcels of land, which can be advantageous for utility-scale solar projects that require significant acreage. Sites with southern exposure on the gentle slopes would be preferred, as these orientations maximize solar collection potential throughout the day. The relatively open nature of the agricultural landscape means that most potential sites would have minimal shading from trees or other tall vegetation, though careful site selection would still need to account for any existing windbreaks or farm structures.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
