Solar Energy Potential in Liberty, Missouri

Liberty, Missouri, in the United States demonstrates varying potential for solar PV energy generation throughout the year. This location in the Northern Temperate Zone experiences significant seasonal fluctuations in solar energy production. The summer months provide the most abundant solar energy, with panels capable of generating approximately 6.74kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season, yielding about 5.13kWh/day per kW. Autumn production decreases to 3.94kWh/day, while winter shows the lowest output at only 2.37kWh/day per kW of installed solar. For residents and businesses in Liberty considering fixed solar panel installations, the ideal tilt angle to maximize year-round energy production is 34 degrees facing South. This specific angle has been calculated to optimize solar capture across all seasons based on Liberty's geographical position.

Seasonal Considerations

The substantial difference between summer and winter production (nearly three times more energy in summer) indicates that Liberty experiences a pronounced seasonal cycle for solar generation. This pattern makes the location moderately favorable for solar PV overall, with excellent production during the warmer months but significant drops during winter. The most ideal period for solar generation in Liberty spans from late spring through early fall, with peak production occurring during the summer months of June, July, and August. During these months, longer days and more direct sunlight create optimal conditions for solar energy capture.

Environmental and Weather Challenges

Several environmental factors in Liberty may impact solar production. Winter snowfall can temporarily cover panels, reducing output until the snow melts or is removed. Liberty's location in the Midwest also means it experiences thunderstorms during spring and summer, with potential for hail that could damage panels if severe enough. Tree coverage and building shadows can also reduce production, particularly during winter months when the sun's path is lower in the sky. Additionally, dust and pollen accumulation is common in this region, which can gradually decrease panel efficiency. To mitigate these challenges, solar installations in Liberty should include:

• Snow-shedding panel mounts with sufficient tilt to help snow slide off
• Hail-resistant panels with appropriate certification for the region
• Regular cleaning maintenance, especially after pollen season and dusty periods
• Strategic placement away from trees or structures that cast shadows, particularly considering winter sun angles
• Micro-inverters or power optimizers to minimize the impact of partial shading

With proper installation considerations addressing these regional factors, Liberty residents can maximize their solar energy potential despite the seasonal variations and environmental challenges.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

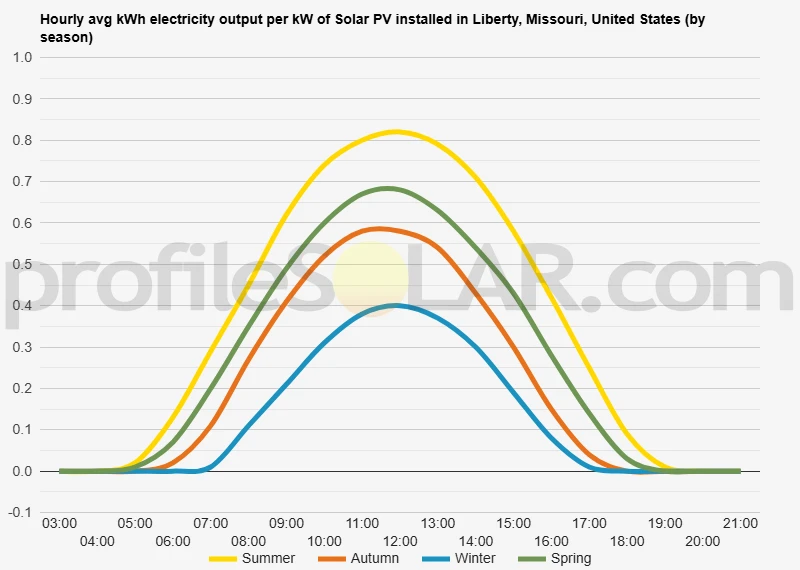

Solar output per kW of installed solar PV by season in Liberty, Missouri

Seasonal solar PV output for Latitude: 39.249, Longitude: -94.4232 (Liberty, Missouri, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Liberty, Missouri, United States

To maximize your solar PV system's energy output in Liberty, Missouri, United States (Lat/Long 39.249, -94.4232) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Liberty, Missouri, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Liberty, Missouri, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	43° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Liberty, Missouri, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Liberty, Missouri, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Liberty, Missouri, United States

The landscape around Liberty, Missouri, situated in the northwestern part of the state near Kansas City, features gently rolling hills characteristic of the Midwestern United States. This area lies within what geographers call the Dissected Till Plains, a region shaped by ancient glacial activity and subsequent erosion. The topography consists of moderately undulating terrain with elevation changes that are noticeable but not dramatic, typically ranging between 800 and 1,000 feet above sea level. Liberty's landscape is marked by a mix of open plains, shallow valleys, and modest ridgelines. The Missouri River flows approximately 10 miles to the west of Liberty, having carved broader valleys in the surrounding region over thousands of years. Smaller waterways like Rush Creek and its tributaries have created minor drainage patterns throughout the area, resulting in subtle variations in the local relief.

Vegetation and Land Use

The natural vegetation around Liberty would historically have been a mixture of tallgrass prairie and oak-hickory forest, though much of this has been converted to agricultural use or urban development. The remaining undeveloped areas typically feature a patchwork of fields, woodland patches, and riparian corridors along streams.

Potential Solar PV Sites

For large-scale solar photovoltaic installations near Liberty, the most suitable areas would be found on relatively flat, south-facing terrain with minimal shading from trees or structures. The gently sloping agricultural lands to the north and east of Liberty present promising opportunities, as these areas combine favorable topography with existing cleared land that minimizes the need for site preparation. The rural areas of Clay County surrounding Liberty offer numerous potential sites where the combination of open space, appropriate slope orientation, and proximity to existing electrical infrastructure creates ideal conditions for solar development. Particularly promising are the areas northeast of Liberty where the terrain flattens somewhat and larger tracts of agricultural land are present. Areas to avoid would include the more steeply sloped sections along creek valleys, heavily wooded areas that would require significant clearing, and flood-prone lowlands near waterways. Additionally, the more densely populated areas immediately surrounding Liberty itself would present challenges due to land availability and potential shading issues. The rolling nature of the landscape means that site-specific assessment is crucial, as even within generally suitable areas, there can be significant local variations in slope, aspect, and shading that affect solar productivity. However, the overall topography of the region is conducive to solar development, with ample areas of gently sloping or flat terrain that receive good sun exposure throughout the year.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
