Newcastle, California, located in the Northern Temperate Zone, offers a relatively favorable environment for solar energy generation throughout the year. The location's solar potential varies significantly across seasons, with peak production occurring during the summer months.

Seasonal Solar Performance

Summer stands out as the most productive season, with an impressive daily output of 8.49 kWh per kW of installed solar capacity. Spring follows closely behind, generating 7.50 kWh/day. These seasons provide excellent opportunities for maximizing solar energy production.

Autumn sees a noticeable decline in solar output, dropping to 4.66 kWh/day. Winter experiences the lowest production, with only 2.82 kWh/day. Despite this seasonal variation, Newcastle's location still allows for year-round solar energy generation, albeit with reduced efficiency during the colder months.

Optimal Panel Positioning

For fixed panel installations in Newcastle, the ideal tilt angle to maximize year-round solar production is 33 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.

Environmental Considerations

While Newcastle generally provides a suitable environment for solar energy production, there are a few factors that could potentially impact efficiency:

• Wildfire smoke: California's increasing wildfire activity can temporarily reduce solar output due to atmospheric particulates.
• Fog and low clouds: Occasional marine layer intrusion from the Pacific can affect morning production, especially in summer.

To mitigate these issues, consider installing high-efficiency panels that perform well in diffuse light conditions. Regular panel cleaning and maintenance can also help offset the impact of particulate matter accumulation. Additionally, incorporating energy storage solutions can help balance out production fluctuations caused by these environmental factors.

Overall, Newcastle's location provides a good balance of solar potential throughout the year, with particularly strong performance during spring and summer months. While there are some environmental challenges, they are not severe enough to significantly impede the viability of solar energy production in this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

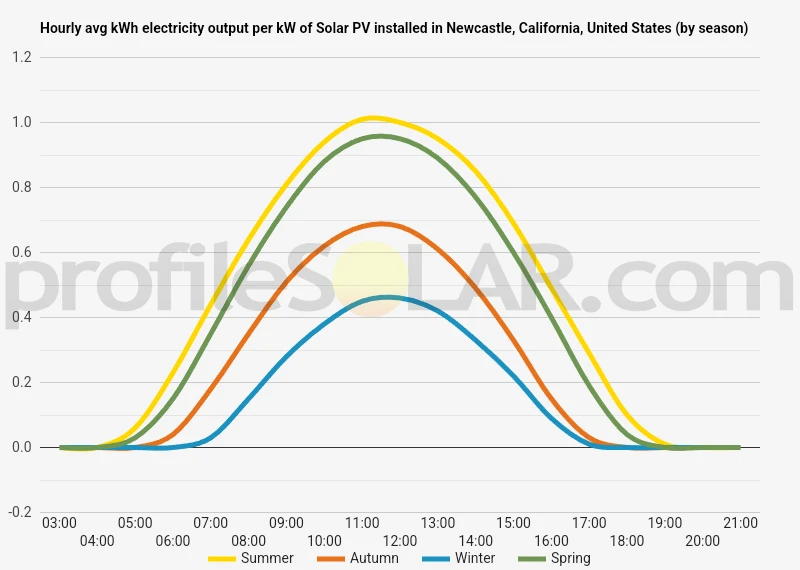

Solar output per kW of installed solar PV by season in Newcastle, California

Seasonal solar PV output for Latitude: 38.8735, Longitude: -121.1439 (Newcastle, California, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 33° South in Newcastle, California, United States

To maximize your solar PV system's energy output in Newcastle, California, United States (Lat/Long 38.8735, -121.1439) throughout the year, you should tilt your panels at an angle of 33° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Newcastle, California, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Newcastle, California, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 33° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
22° South in Summer	43° South in Autumn	53° South in Winter	31° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Newcastle, California, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Newcastle, California, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Newcastle, California, United States

The topography around Newcastle, United States, located at latitude 38.8735 and longitude -121.1439, is characterized by gently rolling hills and valleys typical of the western foothills of the Sierra Nevada mountain range. This area, situated in Placer County, California, features a diverse landscape with elevations ranging from around 200 to 1,000 feet above sea level. The terrain surrounding Newcastle is a mix of open grasslands, oak woodlands, and scattered coniferous forests. The landscape is punctuated by numerous small streams and creeks that flow westward towards the Sacramento Valley. These waterways have carved shallow valleys and ravines into the terrain over time, creating a patchwork of undulating hills and flatlands.

Potential Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would be relatively flat, open areas with minimal shading from trees or hills, and good access to existing infrastructure. The gently sloping grasslands to the west and southwest of Newcastle offer promising potential for solar PV development. These areas typically have fewer trees and more consistent exposure to sunlight throughout the day. The gradual slopes in this direction also provide natural drainage, which can be beneficial for maintaining solar installations. Areas to the east of Newcastle, where the terrain begins to rise more steeply into the foothills, may be less suitable due to increased shading from hills and denser vegetation. However, some of the flatter ridgetops or plateaus in this direction could still be viable options if they offer sufficient open space and solar exposure. It's worth noting that the region around Newcastle experiences a Mediterranean climate with hot, dry summers and mild, wet winters. This climate is generally favorable for solar energy production, with abundant sunshine during the peak energy demand months. Any large-scale solar PV project in this area would need to carefully consider local zoning regulations, environmental impacts, and grid connection possibilities. The proximity to existing power infrastructure and the capacity of local substations would also play a crucial role in determining the most suitable locations for such developments.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
