Marion, Indiana is a moderately suitable location for year-round solar energy generation, though it experiences significant seasonal variation typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at Marion shows a clear seasonal pattern that reflects the area's continental climate. Summer provides the strongest performance at 6.36 kWh per day per kW of installed capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 5.47 kWh per day per kW, offering excellent solar production as daylight hours increase and weather conditions improve. Autumn sees a notable decline to 3.55 kWh per day per kW as the region transitions into cooler months with more variable weather. Winter presents the most challenging conditions for solar generation, dropping to just 2.24 kWh per day per kW, which is typical for northern temperate locations during this season.

Optimal Panel Configuration

For maximum year-round energy production at Marion, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle is calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting for the solar potential at this specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in Marion can impact solar energy generation:

• Snow accumulation during winter months can block panels and significantly reduce output
• Ice formation on panels during freeze-thaw cycles common in Indiana winters
• Frequent cloud cover and overcast skies, particularly during autumn and winter
• Potential for severe weather including hail storms during spring and summer
• High humidity levels that can create atmospheric haze reducing solar irradiance

Preventative Measures for Better Performance

Several installation strategies can help maximize solar production despite these challenges:

• Install panels with adequate tilt (like the recommended 35 degrees) to promote natural snow shedding
• Use anti-reflective coatings and hydrophobic treatments to minimize ice buildup and improve cleaning
• Implement robust mounting systems designed to withstand high winds and hail
• Consider micro-inverters or power optimizers to minimize impact when individual panels are partially shaded or snow-covered
• Plan for regular maintenance access to safely remove snow and debris when necessary

Despite these seasonal challenges, Marion's location still provides viable solar energy potential, particularly during the productive spring and summer months when solar generation peaks.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

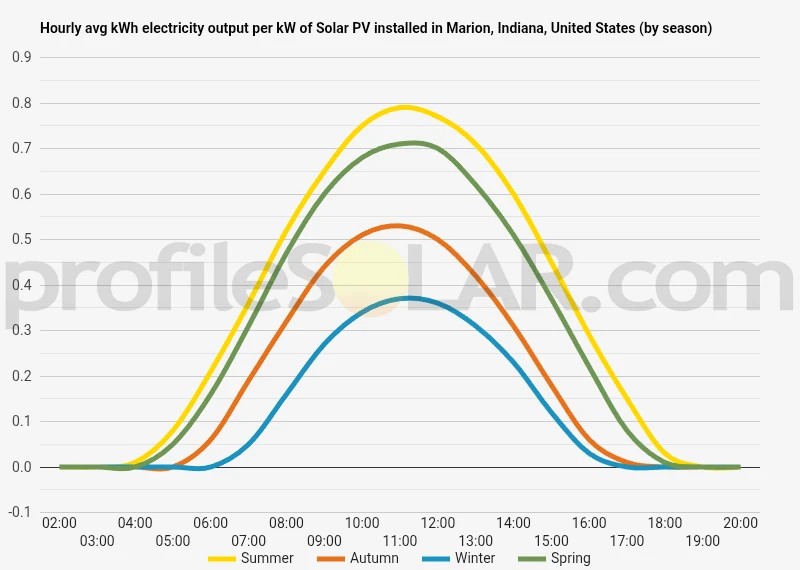

Solar output per kW of installed solar PV by season in Marion, Indiana

Seasonal solar PV output for Latitude: 40.5366, Longitude: -85.6579 (Marion, Indiana, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Marion, Indiana, United States

To maximize your solar PV system's energy output in Marion, Indiana, United States (Lat/Long 40.5366, -85.6579) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Marion, Indiana, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Marion, Indiana, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	54° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Marion, Indiana, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Marion, Indiana, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Marion, Indiana, United States

Topographical Features Around Marion, Indiana

Marion, Indiana sits within the relatively flat agricultural landscape of Grant County in the east-central portion of the state. The terrain around Marion is characterized by gently rolling plains that were shaped by glacial activity thousands of years ago. The elevation in the immediate vicinity typically ranges from approximately 800 to 900 feet above sea level, with very modest variations across the landscape.

The topography consists primarily of till plains, which are broad, relatively level areas composed of glacial deposits. These plains are interrupted occasionally by low, rolling hills and shallow valleys carved by small streams and drainage ways. The Mississinewa River flows roughly east to west through the southern portion of the area, creating a modest river valley that represents one of the more significant topographical features in the region.

The land surface generally slopes very gradually toward the northwest, following the broader drainage pattern of the Wabash River basin. Small creeks and agricultural drainage ditches create minor undulations in the otherwise fairly uniform terrain. Most slopes in the area are gentle, typically ranging from one to three percent grade, making this landscape quite manageable for various land uses.

Optimal Areas for Large-Scale Solar Development

The topographical characteristics around Marion present several favorable conditions for large-scale solar photovoltaic installations. The extensive flat to gently rolling agricultural lands that dominate the landscape provide ideal conditions for solar arrays, as they minimize the need for extensive grading and allow for efficient panel placement and maintenance access.

Areas located on the higher elevation till plains, particularly those northwest and southwest of Marion, would be most suitable for major solar developments. These locations offer relatively level terrain with good drainage characteristics, reducing concerns about water accumulation around solar equipment. The gentle slopes in these areas can actually be beneficial for solar installations, as they can improve panel drainage and reduce the risk of snow accumulation during winter months.

The agricultural fields that extend in all directions from Marion represent prime candidates for solar development due to their large, unobstructed expanses. These areas typically have minimal tree cover and few topographical obstacles that could create shading issues for solar panels. The existing agricultural road network in these areas also provides good infrastructure for construction and maintenance access.

Areas closer to the Mississinewa River valley might be less optimal due to potentially higher moisture levels and the possibility of seasonal flooding in low-lying sections. However, the elevated terraces adjacent to the river valley could still present viable options for solar development, particularly where they offer good southern exposure and adequate distance from wetland areas.

The relatively uniform topography means that most locations within a ten to fifteen mile radius of Marion could potentially accommodate large solar installations with minimal site preparation. The key considerations would be proximity to electrical transmission infrastructure, land availability, and local zoning regulations rather than significant topographical constraints.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
