Madison, Connecticut, located in the Northern Temperate Zone, offers a moderately favorable environment for solar PV energy generation throughout the year. The town's geographical position at latitude 41.2795 and longitude -72.5984 provides varying levels of solar potential across different seasons.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Madison, with an average daily output of 5.81 kWh per kW of installed solar capacity. This high yield is due to longer daylight hours and the sun's higher position in the sky. Spring follows closely behind summer in terms of solar productivity, generating an average of 5.58 kWh per day per kW installed. This season benefits from increasingly longer days and clearer skies as winter transitions into summer. Autumn sees a noticeable decrease in solar output, with an average daily production of 3.45 kWh per kW installed. This reduction is attributed to shorter days and the sun's lower position in the sky. Winter presents the greatest challenge for solar energy production in Madison, with an average daily output of only 2.01 kWh per kW installed. The combination of shorter days, lower sun angles, and potential snow cover contributes to this reduced performance.

Optimal Panel Installation

To maximize year-round solar energy production in Madison, fixed solar panels should be installed at a tilt angle of 36 degrees facing south. This angle is calculated to optimize the panels' exposure to sunlight throughout the year, taking into account the town's latitude and seasonal variations in sun position.

Environmental and Weather Considerations

While Madison's location is generally favorable for solar energy production, there are some environmental and weather factors that could impact solar panel efficiency: 1. Snow accumulation in winter can temporarily reduce panel output, but this can be mitigated by installing panels at the recommended angle to promote snow sliding off. 2. Coastal fog, common in this area, may occasionally reduce solar irradiance, particularly in the morning hours. To address these factors, consider the following preventative measures: - Use high-quality, durable panels that can withstand local weather conditions. - Implement a regular cleaning schedule to remove any debris or snow from panels. - Consider installing a monitoring system to track performance and quickly identify any issues. Overall, Madison's location provides a good opportunity for solar energy production, with peak performance during spring and summer months. While winter presents challenges, proper installation and maintenance can help ensure consistent energy generation throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

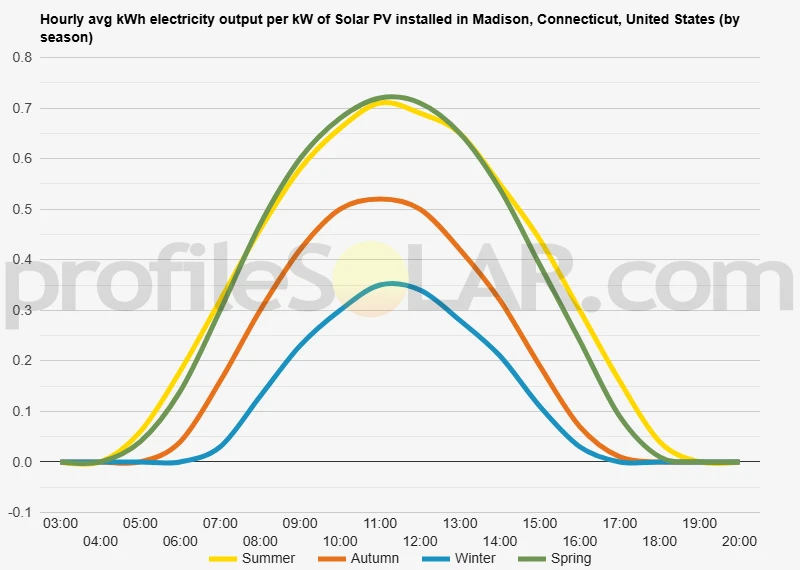

Solar output per kW of installed solar PV by season in Madison, Connecticut

Seasonal solar PV output for Latitude: 41.2795, Longitude: -72.5984 (Madison, Connecticut, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Madison, Connecticut, United States

To maximize your solar PV system's energy output in Madison, Connecticut, United States (Lat/Long 41.2795, -72.5984) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Madison, Connecticut, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Madison, Connecticut, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	46° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Madison, Connecticut, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Madison, Connecticut, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Madison, Connecticut, United States

The area around Madison, Connecticut, located at coordinates 41.2795°N, 72.5984°W, features a diverse and picturesque topography typical of the New England coastal region. This charming town is situated along the Long Island Sound, offering a blend of coastal lowlands and gently rolling hills as you move inland. Along the shoreline, Madison boasts beautiful beaches and rocky outcrops, with the land gradually rising as you head north. The coastal plain is relatively flat, with some small streams and wetlands dotting the landscape. As you move further inland, the terrain becomes more varied, with low hills and shallow valleys creating a gentle, undulating landscape. The area is characterized by a mix of forested lands, open fields, and suburban developments. Many of the hills in the region are covered with dense deciduous forests, while the lowlands often feature a combination of residential areas, small farms, and protected natural habitats.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would be relatively flat, open areas with good sun exposure and minimal shading from trees or buildings. Some of the most promising areas for solar development in the vicinity of Madison would likely be found slightly inland, away from the immediate coastal zone. The gently rolling hills and open fields to the north and northwest of Madison could provide suitable sites for solar farms. These areas often have fewer trees and less dense development, allowing for better solar exposure. Former agricultural lands or brownfield sites in neighboring towns like Guilford, Clinton, or Killingworth might also offer potential for large-scale solar installations. These locations typically provide the necessary space and sun exposure while minimizing the impact on natural habitats or residential areas. It's important to note that any large-scale solar development would need to carefully consider local zoning regulations, environmental impacts, and community concerns. The scenic nature of the region and its importance for tourism and recreation means that careful planning and community engagement would be crucial for any significant solar projects in the area.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
