Eureka, Illinois, situated in the Northern Temperate Zone at latitude 40.7174 and longitude -89.2635, presents varying conditions for solar PV energy generation throughout the year. The location experiences significant seasonal fluctuations in solar energy production.

Seasonal Solar Production

Solar panels in Eureka produce their highest output during summer months, generating approximately 6.34kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.27kWh/day. Production decreases considerably during autumn (3.60kWh/day) and reaches its lowest point in winter (2.23kWh/day).

This seasonal pattern creates a substantial difference between summer and winter production, with summer generating nearly three times more energy than winter months. This variation is typical for locations in the Northern Temperate Zone where seasonal daylight and sun angle changes are pronounced.

Optimal Panel Installation

For fixed solar panel installations in Eureka, the ideal tilt angle to maximize year-round production is 35 degrees facing South. This angle provides the best compromise between summer and winter solar collection, accounting for the Earth's elliptical orbit and the location's specific latitude.

Environmental and Weather Considerations

Several factors could potentially impact solar production in Eureka:

• Snow accumulation during winter months can significantly reduce output if panels become covered, requiring periodic clearing or the installation of panels at steeper angles to promote natural snow shedding
• Occasional severe weather including thunderstorms and potential tornado activity in the region may necessitate sturdy mounting systems designed to withstand high winds
• Tree coverage and building shadows should be carefully evaluated during installation planning to minimize shading issues, particularly during lower-sun winter months

Preventative measures such as installing micro-inverters or power optimizers can help minimize production losses from partial shading. Additionally, regular maintenance including cleaning panels of dust, pollen, and other debris will help maintain optimal production levels throughout the year.

Overall, while Eureka experiences substantial seasonal variation in solar production, proper system design accounting for the local conditions can still make solar PV a viable energy solution for this location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

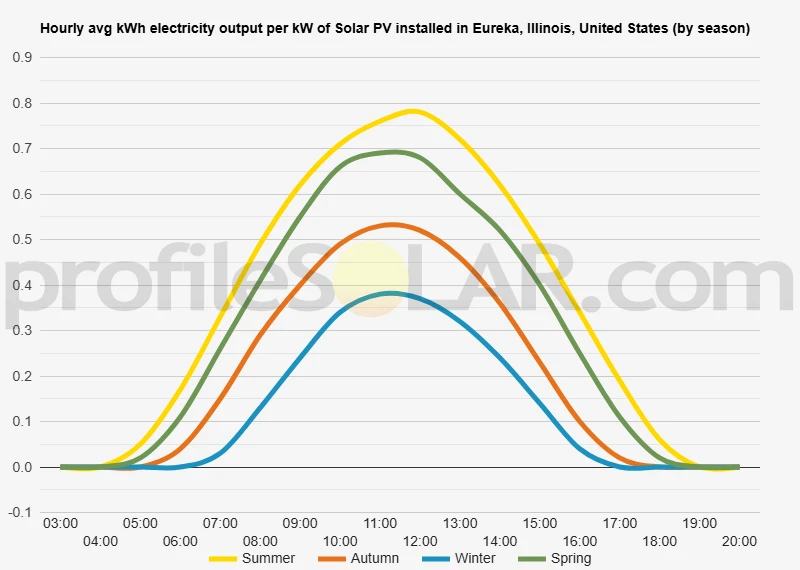

Solar output per kW of installed solar PV by season in Eureka, Illinois

Seasonal solar PV output for Latitude: 40.7174, Longitude: -89.2635 (Eureka, Illinois, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Eureka, Illinois, United States

To maximize your solar PV system's energy output in Eureka, Illinois, United States (Lat/Long 40.7174, -89.2635) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Eureka, Illinois, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Eureka, Illinois, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Eureka, Illinois, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Eureka, Illinois, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Eureka, Illinois, United States

The topography around Eureka, Illinois, located in Woodford County, is characterized by gently rolling terrain typical of the Midwestern United States. Situated in the heart of Illinois, this area features predominantly rural landscapes that were shaped by glacial activity during the last ice age. The region sits within the Till Plains section of the Central Lowland Province, resulting in a landscape of subtle hills, shallow valleys, and fertile plains. Eureka itself sits at an elevation of approximately 750 feet above sea level. The surrounding countryside displays modest variations in elevation, with gradual slopes rather than steep inclines. This rolling topography creates a patchwork of agricultural fields, small woodlots, and stream corridors. The Mackinaw River, a significant waterway in the region, flows several miles south of Eureka, carving a shallow valley through the landscape.

Soil and Land Characteristics

The soils around Eureka are predominantly rich, dark mollisols - highly fertile soils that developed under prairie vegetation. This soil type, combined with the relatively flat terrain, has made the region ideal for agricultural production, particularly corn and soybeans, which dominate the local landscape. The area features a mix of open farmland interspersed with small stands of deciduous forest and riparian corridors along streams and drainage ways.

Potential Areas for Solar Development

For large-scale solar PV development, several characteristics of the surrounding topography would be advantageous. The gently rolling terrain offers many south-facing slopes that could optimize solar exposure throughout the day. Areas north and east of Eureka feature particularly suitable topography, with gradual inclines that could maximize solar collection while minimizing installation challenges. The relatively open agricultural landscape provides numerous potential sites with minimal shading from natural features like mountains or dense forests. Former agricultural fields or marginal farmland would be particularly suitable for solar development, offering large, contiguous parcels with minimal vegetation clearing requirements. Areas to avoid would include the floodplains of the Mackinaw River and its tributaries, as well as any steeply eroded ravines or heavily wooded sections that would require significant clearing. Additionally, the prime agricultural land might face regulatory or community resistance to conversion for solar use, so focusing on less productive farmland might be advisable. The northwestern quadrant of Woodford County shows promise for solar development, with its combination of appropriate slope aspects, reasonable proximity to transmission infrastructure, and areas of land that might be available for non-agricultural development. Similarly, areas to the southeast of Eureka, approaching the Tazewell County line, offer topographical conditions conducive to efficient solar collection. In conclusion, while the entire region around Eureka features relatively favorable topography for solar development, the most suitable areas would be those combining gentle south-facing slopes, existing cleared land, proximity to electrical infrastructure, and lower-quality agricultural soils. These characteristics can be found in patches throughout the region, particularly in the northwestern and southeastern sectors relative to Eureka.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
