Madisonville, Kentucky presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows substantial differences throughout the year. Summer provides the strongest performance at 6.53 kWh per day per kilowatt of installed solar capacity, making it the peak season for energy generation. Spring follows as the second-best season with 5.63 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline to 4.05 kWh per day per kW, while winter presents the most challenging conditions with only 2.33 kWh per day per kW. This winter figure represents less than half the summer output, highlighting the importance of proper system sizing for year-round energy needs.

Optimal Panel Configuration

For maximum year-round energy production at this Madisonville location, solar panels should be installed at a fixed tilt angle of 32 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Environmental Challenges

Several environmental and weather factors in the Madisonville area can impact solar energy production:

• High humidity and frequent cloud cover, particularly during spring and summer months when thunderstorms are common
• Potential ice and snow accumulation during winter months that can block panels
• Dust and pollen buildup, especially during spring when regional vegetation is most active
• Occasional severe weather including hail storms and high winds

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove beneficial. Panels should be mounted with adequate spacing to allow air circulation, which helps reduce moisture-related issues and improves cooling efficiency. Installing panels at the recommended 32-degree tilt naturally helps with snow shedding and rain runoff, reducing accumulation problems. Regular maintenance scheduling becomes particularly important in this climate. Installing accessible mounting systems allows for easier cleaning of panels to remove dust, pollen, and debris. Consider impact-resistant panels and secure mounting systems to withstand severe weather events common to the region. Proper electrical grounding and surge protection systems are essential given the area's thunderstorm activity. Additionally, choosing panels with good low-light performance can help maintain energy generation during the frequently overcast conditions typical of Kentucky's climate. Overall, while Madisonville offers decent solar potential, the significant seasonal variation and local weather patterns require careful system design and maintenance planning to achieve optimal performance throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

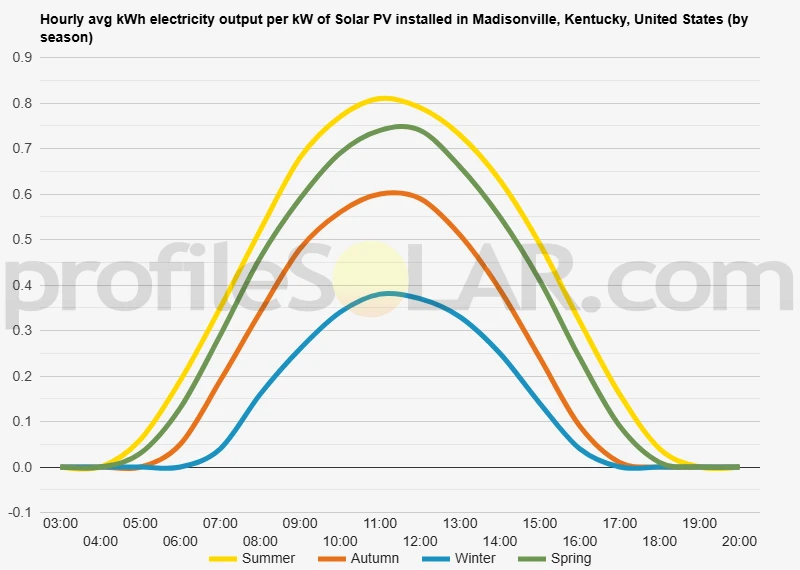

Solar output per kW of installed solar PV by season in Madisonville, Kentucky

Seasonal solar PV output for Latitude: 37.3268, Longitude: -87.4958 (Madisonville, Kentucky, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Madisonville, Kentucky, United States

To maximize your solar PV system's energy output in Madisonville, Kentucky, United States (Lat/Long 37.3268, -87.4958) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Madisonville, Kentucky, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Madisonville, Kentucky, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	42° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Madisonville, Kentucky, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Madisonville, Kentucky, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Madisonville, Kentucky, United States

Topographical Features of the Madisonville Region

The area surrounding Madisonville, Kentucky sits within the Western Kentucky Coal Field region, characterized by gently rolling hills and relatively modest elevation changes. This landscape represents part of the Interior Low Plateaus physiographic province, where the terrain consists primarily of dissected uplands with broad, rounded ridges separated by shallow valleys. The elevation in and around Madisonville typically ranges from about 400 to 600 feet above sea level, creating a moderately undulating topography that lacks dramatic slopes or steep inclines. The region's geological foundation consists largely of sedimentary rock formations, including sandstone, shale, and limestone layers that have been shaped by millions of years of erosion. This has resulted in a landscape of gentle hills with fairly stable soil conditions. The area features numerous small creeks and streams that have carved shallow valleys through the terrain, creating a dendritic drainage pattern that flows generally toward the larger river systems in the region. Coal mining activities have significantly modified portions of the local landscape over the past century. Surface mining operations have created both excavated areas and constructed hills from overburden materials. Some former mining sites have been reclaimed and now present relatively flat or gently sloping terrain that differs from the natural topography.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Madisonville area would be the flatter ridge tops and broad plateau areas that characterize much of the surrounding landscape. These elevated areas typically offer good southern exposure while avoiding the shading issues that can occur in valley bottoms. The gentle slopes found on many of these ridges, particularly those facing south or southwest, would be ideal for solar panel placement as they naturally optimize sun exposure angles. Reclaimed surface mining sites present particularly attractive opportunities for solar development. These areas often feature large, relatively flat expanses of land that have already been cleared and graded. The soil compaction and altered drainage patterns at these sites, while potentially challenging for agriculture or forestry, pose fewer obstacles for solar installations. Many of these reclaimed areas offer substantial acreage in single parcels, which is advantageous for large-scale solar projects. The broad hilltops and ridge systems extending in various directions from Madisonville provide additional suitable terrain. These areas typically have minimal tree cover compared to the valleys and offer good accessibility for construction and maintenance activities. The stable geological conditions underlying most of the region support the foundation requirements for solar mounting systems. Areas to avoid would include the narrow valley bottoms where seasonal flooding might occur, heavily forested slopes that would require extensive clearing, and any remaining active or abandoned mining areas with unstable ground conditions. The steeper hillsides, while not extremely challenging, would be less economical for solar development due to increased installation complexity and potential shading from adjacent terrain features.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
