Midlothian, Texas offers reasonably good conditions for solar energy generation throughout the year, though like most locations in the Northern Sub Tropics, it experiences significant seasonal variation in solar output.

Seasonal Solar Performance

Summer provides the peak solar generation period at this location, producing 6.85 kWh per day for each kilowatt of installed solar capacity. This represents the optimal time for solar energy production when the sun is highest in the sky and daylight hours are longest. Spring follows as the second-best season with 5.30 kWh per day per kW, making it another excellent period for solar generation. The combination of increasing sun angles and generally clear weather conditions contributes to strong performance during this time. Autumn sees a notable decrease to 4.89 kWh per day per kW as the sun angle begins to lower and weather patterns shift. While still producing decent amounts of energy, this marks the beginning of the lower-production period. Winter represents the challenging season for solar generation, dropping to just 3.00 kWh per day per kW. This significant reduction is typical for locations at this latitude due to lower sun angles and shorter days.

Optimal Panel Installation

For maximum year-round energy production at this Midlothian location, solar panels should be installed at a fixed tilt angle of 29 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for actual solar energy potential.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Midlothian area can impact solar energy generation:

• Severe thunderstorms and hail: Texas is prone to intense storms that can damage solar panels
• High summer temperatures: Extreme heat can reduce panel efficiency
• Dust and pollen accumulation: The region's agricultural activity and seasonal pollen can coat panels
• Occasional ice storms: Winter weather events can temporarily reduce production

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Impact-resistant panels: Choose panels rated for hail resistance to withstand severe weather
• Proper ventilation: Ensure adequate airflow behind panels to reduce heat buildup during hot summers
• Regular cleaning schedule: Plan for periodic panel cleaning to remove dust, pollen, and debris
• Quality mounting systems: Use robust mounting hardware designed for high wind loads
• Strategic positioning: Avoid installation in areas prone to shading from trees or structures

Overall, Midlothian's location provides good solar potential, particularly during the warmer months, making it a viable location for solar energy generation when proper installation practices are followed.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

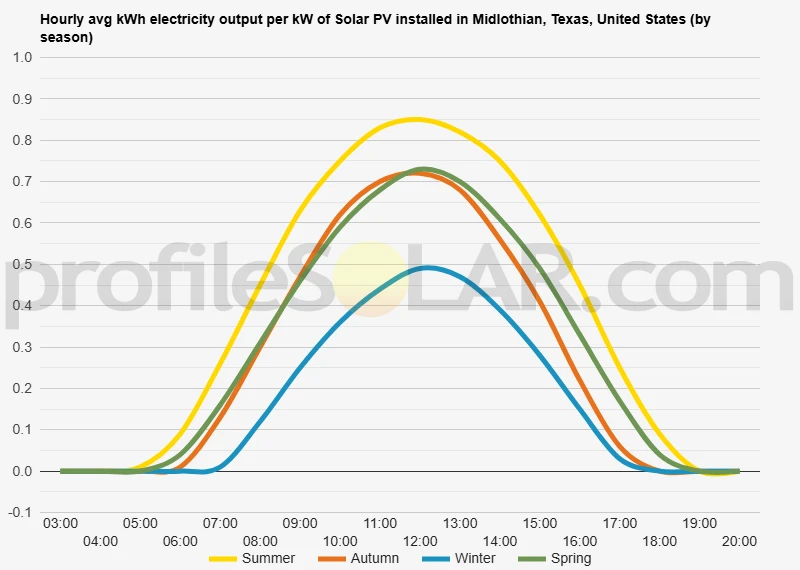

Solar output per kW of installed solar PV by season in Midlothian, Texas

Seasonal solar PV output for Latitude: 32.48, Longitude: -96.9905 (Midlothian, Texas, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Midlothian, Texas, United States

To maximize your solar PV system's energy output in Midlothian, Texas, United States (Lat/Long 32.48, -96.9905) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Midlothian, Texas, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Midlothian, Texas, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Midlothian, Texas, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Midlothian, Texas, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Midlothian, Texas, United States

Topographical Features Around Midlothian

The topography surrounding Midlothian in north-central Texas is characterized by gently rolling hills and relatively flat terrain typical of the North Central Plains region. This area sits within the transition zone between the eastern forests and western prairies of Texas, creating a landscape of modest elevation changes and open spaces. The terrain generally slopes from northwest to southeast, with elevations ranging from approximately 500 to 800 feet above sea level. The landscape features broad, shallow valleys carved by small creeks and tributaries that eventually drain into larger waterways. These waterways have created subtle undulations in the otherwise fairly level terrain, but the overall topography remains quite manageable for development purposes. The soil composition consists primarily of clay and sandy loam, with areas of limestone bedrock closer to the surface in some locations.

Vegetation and Land Use Patterns

The natural vegetation in this region consists of mixed grasslands with scattered oak trees and mesquite. Much of the original prairie has been converted to agricultural use or suburban development, creating a patchwork of cultivated fields, pastureland, and residential areas. The remaining native vegetation tends to concentrate along creek beds and in areas less suitable for farming or development. Agricultural land use predominantly features cattle ranching and hay production, with some crop cultivation in the more fertile bottomland areas. The combination of agricultural use and the region's natural topography has resulted in large expanses of relatively open land with minimal tree coverage.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Midlothian area would be the expansive agricultural fields and pasturelands that dominate the landscape south and west of the city. These areas offer several advantages including relatively flat terrain that minimizes grading requirements, minimal tree coverage that could create shading issues, and existing road infrastructure that facilitates construction and maintenance access. The gently rolling hills to the north and east of Midlothian, while still feasible for solar development, would require more careful site planning to optimize panel orientation and minimize the impact of topographical variations. However, these areas often provide good drainage characteristics that can be beneficial for solar installations. Agricultural lands currently used for hay production or cattle grazing represent particularly attractive opportunities, as these properties typically feature large contiguous parcels with minimal existing infrastructure that would need to be relocated. The clay-based soils, while presenting some challenges for foundation work, provide stable ground conditions once properly prepared. Areas closer to existing electrical transmission infrastructure would be especially valuable for large-scale solar development, as they would minimize the costs and complexity associated with connecting solar installations to the electrical grid. The relatively open terrain throughout much of the region surrounding Midlothian provides flexibility in siting solar facilities to take advantage of existing utility infrastructure.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
