Madison, Tennessee is a reasonably good location for year-round solar energy generation, though it experiences significant seasonal variation typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer provides the highest production at 6.43 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.62 kWh per day per kW, offering strong solar potential as daylight hours increase and weather conditions improve. Autumn production drops to 4.01 kWh per day per kW as the sun angle decreases and weather patterns change. Winter presents the most challenging conditions, with output falling to just 2.46 kWh per day per kW of installed capacity, representing less than 40% of summer production levels. For fixed panel installations at Madison, Tennessee, the optimal tilt angle is 31 degrees facing south to maximize total year-round energy production. This angle is calculated based on the location's latitude and weighted solar irradiance data throughout the year.

Local Factors Affecting Solar Production

Several environmental and weather factors in Madison, Tennessee can impact solar energy generation:

• High humidity and frequent cloud cover during summer months can reduce solar irradiance despite longer days
• Ice storms and snow accumulation in winter can block panels and reduce production
• Severe thunderstorms common in spring and summer may cause temporary shading from storm clouds
• Atmospheric haze and pollution from nearby Nashville metropolitan area can scatter sunlight
• Dense tree coverage typical of Tennessee's landscape can create shading issues

Preventative Measures for Better Performance

To maximize solar energy production in Madison, Tennessee, several installation strategies can help overcome local challenges:

• Install panels with adequate spacing and smooth surfaces to allow snow and ice to slide off naturally
• Choose mounting systems that allow for safe cleaning and maintenance access
• Conduct thorough shade analysis before installation to avoid tree coverage throughout different seasons
• Consider microinverters or power optimizers to minimize impact when individual panels are shaded
• Ensure proper ventilation behind panels to reduce efficiency losses from high humidity and heat

Regular maintenance including cleaning panels of pollen, dust, and debris will help maintain optimal performance year-round. The location's moderate climate means solar installations can be productive throughout most of the year, with summer and spring offering the best generation potential.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

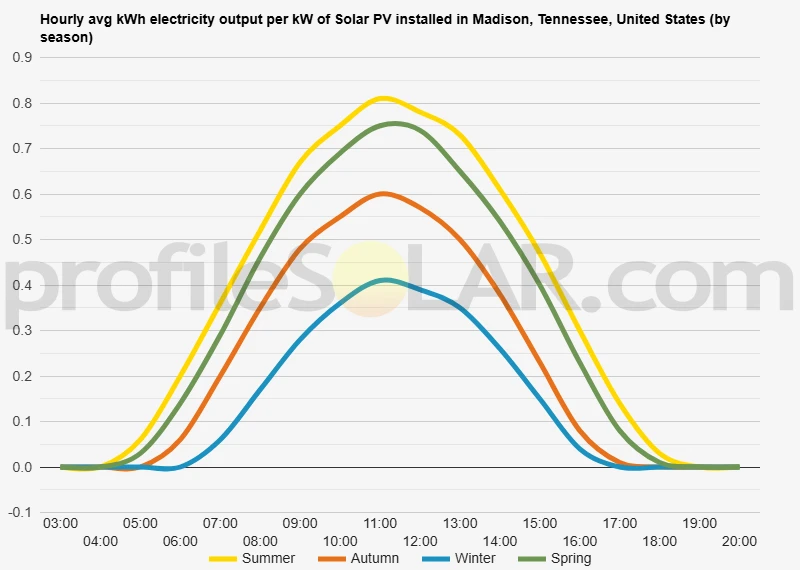

Solar output per kW of installed solar PV by season in Madison, Tennessee

Seasonal solar PV output for Latitude: 36.2646, Longitude: -86.702 (Madison, Tennessee, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Madison, Tennessee, United States

To maximize your solar PV system's energy output in Madison, Tennessee, United States (Lat/Long 36.2646, -86.702) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Madison, Tennessee, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Madison, Tennessee, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	41° South in Autumn	52° South in Winter	29° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Madison, Tennessee, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Madison, Tennessee, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Madison, Tennessee, United States

Topographical Features Around Madison

Madison sits in the rolling hills of north-central Tennessee, positioned within the Cumberland River valley system. The terrain around this area is characterized by gently undulating landscape typical of the Nashville Basin region. The elevation varies moderately across the vicinity, with most areas ranging from approximately 400 to 600 feet above sea level. The topography consists of broad, rounded ridges separated by shallow valleys, creating a landscape that is neither completely flat nor dramatically mountainous.

The immediate surroundings feature a mix of agricultural fields, suburban developments, and patches of deciduous forest. Small creeks and tributaries weave through the terrain, creating minor drainage patterns that have carved gentle depressions in the landscape over time. The soil composition includes limestone bedrock beneath layers of clay and loam, which contributes to the region's relatively stable ground conditions.

Slope Characteristics and Land Use

Most slopes in the Madison area are gentle to moderate, typically ranging from 2 to 15 degrees across the majority of available land. Steeper inclines exist along creek beds and ridge edges, but these represent a small fraction of the total landscape. The predominant land use includes residential neighborhoods, commercial corridors along major roads, and significant portions of undeveloped or agricultural land that could potentially accommodate large infrastructure projects.

The natural drainage patterns generally flow toward the Cumberland River, which lies several miles to the south and west. This drainage creates a series of gentle ridgelines running roughly northeast to southwest, with intervening valleys that tend to be broad and relatively flat-bottomed.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader ridgetops and the flatter portions of the intervening valleys. These areas offer several advantages including relatively level terrain that minimizes grading requirements, good accessibility via existing road networks, and sufficient open space to accommodate large arrays without significant tree clearing.

Agricultural fields located on the gentler slopes and valley floors present particularly attractive opportunities, as they are already cleared of vegetation and often have established access roads. The areas northeast and southeast of Madison contain substantial tracts of such land, where the topography provides natural south-facing slopes that could enhance solar collection efficiency.

Ridge areas running parallel to the natural terrain contours offer another promising option, particularly those with southern exposures. These elevated positions often have fewer drainage issues and can provide better air circulation around solar equipment, which helps maintain optimal operating temperatures.

The western and southwestern portions of the region contain some of the most favorable combinations of gentle slopes, existing cleared land, and proximity to electrical infrastructure. These areas benefit from the natural topographical features while avoiding the steeper terrain found along some of the creek valleys and ridge edges.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
