Jackson, Michigan, United States, located in the Northern Temperate Zone, offers varying potential for solar energy generation throughout the year. The location experiences significant seasonal fluctuations in solar production, which is typical for northern states in the US.

Seasonal Solar Performance

The solar energy output at this location shows a clear seasonal pattern. Summer is the most productive season, with panels generating approximately 6.37kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.37kWh/day. Production drops considerably in autumn to 3.08kWh/day, while winter sees the lowest output at just 1.93kWh/day per kW installed.

This pattern creates a roughly 3:1 ratio between summer and winter production, which is significant but not extreme compared to locations further north. The substantial spring production is a positive factor, effectively extending the high-production period beyond just the summer months.

Optimal Panel Installation

For fixed solar panel installations in Jackson, the ideal tilt angle to maximize year-round energy production is 36 degrees facing South. This angle has been calculated by analyzing daily solar elevation patterns at this latitude, weighted according to the daily photovoltaic potential based on NASA's solar irradiance data, and accounting for Earth's elliptical orbit.

Environmental and Weather Considerations

Several factors in Jackson may affect solar production throughout the year:

• Snow accumulation in winter can significantly reduce output if panels become covered, requiring either manual clearing or steep enough tilting to promote snow sliding
• Cloud cover is relatively high in the Great Lakes region, particularly during late autumn and winter months
• Potential for ice storms which can damage equipment if not properly rated for local conditions
• Tree cover and shading may be issues in residential areas of Jackson, requiring careful site assessment

Preventative Measures

To maximize production despite these challenges, consider installing panels with micro-inverters or power optimizers that minimize the impact when some panels are shaded or snow-covered. The 36-degree tilt also helps with snow shedding compared to flatter installations. Additionally, regular maintenance inspections, particularly before winter, can help ensure the system operates at peak efficiency year-round.

Overall, Jackson provides moderate to good conditions for solar PV generation, with excellent summer and spring production compensating somewhat for the reduced winter output. With proper installation techniques and equipment selection, solar can be a viable energy source at this location despite seasonal variations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

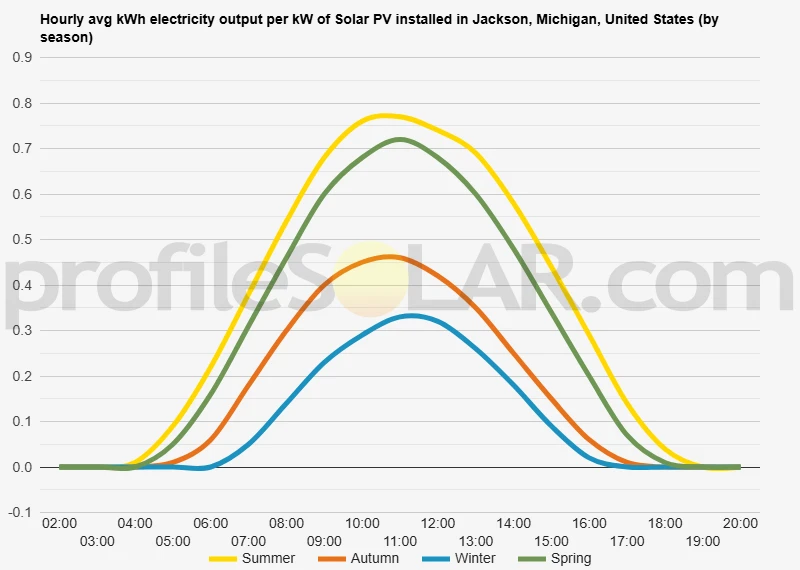

Solar output per kW of installed solar PV by season in Jackson, Michigan

Seasonal solar PV output for Latitude: 42.229, Longitude: -84.4132 (Jackson, Michigan, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Jackson, Michigan, United States

To maximize your solar PV system's energy output in Jackson, Michigan, United States (Lat/Long 42.229, -84.4132) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jackson, Michigan, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jackson, Michigan, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jackson, Michigan, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jackson, Michigan, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jackson, Michigan, United States

The topography around Jackson, Michigan is characterized by gently rolling hills and plains typical of the Midwest region. Located in south-central Michigan, Jackson sits in what geologists refer to as the Central Lowlands physiographic province. The landscape was primarily shaped by glacial activity during the last ice age, leaving behind a mix of moraines, till plains, and glacial outwash features. The elevation in Jackson averages around 1,000 feet (305 meters) above sea level, with modest variations throughout the surrounding area. The terrain consists of subtle rises and shallow valleys rather than dramatic elevation changes. This relatively flat to moderately undulating landscape is punctuated by numerous small lakes, wetlands, and river systems, including the Grand River which flows through the city.

Surrounding Terrain Features

To the north and east of Jackson, the topography gradually becomes more pronounced with slightly higher elevations and more defined glacial features. These areas contain more pronounced hills and ridges formed by terminal moraines - debris left at the edges of ancient glaciers. The southern and western portions of the Jackson area tend to be flatter, with more extensive plains and fewer significant elevation changes. These areas were shaped by glacial outwash, where meltwater from retreating glaciers deposited sediments in broad, flat plains. Throughout the region, the soil composition varies from sandy loams to clay, reflecting the glacial origins of the landscape. This variation in soil types influences drainage patterns and land use capabilities across the area.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, the most suitable areas around Jackson would be the flatter, open terrain primarily found to the south and southwest of the city. These areas offer several advantages for solar development: The relatively flat terrain requires minimal grading and site preparation, reducing construction costs and environmental disruption. These areas also tend to have fewer natural obstructions like tall trees or steep slopes that might cast shadows on solar arrays. Agricultural lands in the southern portions of Jackson County present opportunities for solar development, particularly on less productive farmland. These areas typically have existing access roads and are often already cleared of vegetation. The slightly elevated plateaus found in some parts of the region can be advantageous for solar installations as they may receive less snow accumulation in winter months and experience better air circulation, which helps maintain optimal panel temperatures. Areas near existing electrical infrastructure, particularly around the outskirts of Jackson where transmission lines are present but population density is lower, would minimize interconnection costs while avoiding highly developed urban centers. The glacial outwash plains to the southwest, with their well-drained soils and open aspects, represent some of the most promising terrain for large-scale solar development. These areas combine favorable topography with practical considerations like accessibility and grid connectivity. It's worth noting that while the modest hills in the region don't present significant obstacles for solar development, south-facing slopes offer natural advantages for maximizing solar exposure throughout the year in this northern latitude location.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
