New Castle, Indiana, United States, located at coordinates 39.9213, -85.3782, presents a varied landscape for solar energy production throughout the year. This northern temperate zone location experiences significant seasonal fluctuations in solar energy potential, which is important to consider when planning a solar PV installation.

Seasonal Solar Production

Solar panels in New Castle generate their highest output during summer months, producing an average of 6.22kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.47kWh/day. Energy production drops considerably during autumn to 3.68kWh/day, while winter represents the lowest production period with just 2.14kWh/day per installed kilowatt.

This seasonal pattern creates a production ratio where summer generates nearly three times the electricity of winter months. The substantial difference highlights that New Castle is not an ideal year-round solar location, but rather one with distinct high and low production seasons.

Optimal Installation Angle

For fixed solar panel installations in New Castle, the ideal tilt angle to maximize year-round energy production is 34 degrees facing South. This specific angle has been calculated to optimize annual solar capture by accounting for the location's latitude and seasonal solar paths.

Environmental Considerations

Several environmental factors in New Castle can impact solar production:

• Snow accumulation during winter months can temporarily reduce output unless panels are installed at steeper angles to promote snow shedding
• Occasional severe weather including thunderstorms and potential tornado activity in spring and summer may require robust mounting systems
• Deciduous tree coverage is common in the region and can cause seasonal shading issues if not properly addressed during installation planning

Preventative Measures

To maximize solar production in New Castle despite these challenges, several preventative measures are recommended:

• Install panels with adequate spacing from trees and structures to minimize shading, particularly on the southern exposure
• Use mounting systems rated for local wind conditions and secure against potential storm damage
• Consider snow guards or slightly steeper installation angles in areas prone to heavy snowfall
• Implement a regular cleaning schedule to remove dust, pollen, and other debris that accumulates seasonally

While not ideal year-round, New Castle's location can still provide effective solar energy production, particularly from late spring through early fall when daily output averages exceed 5kWh per installed kilowatt.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

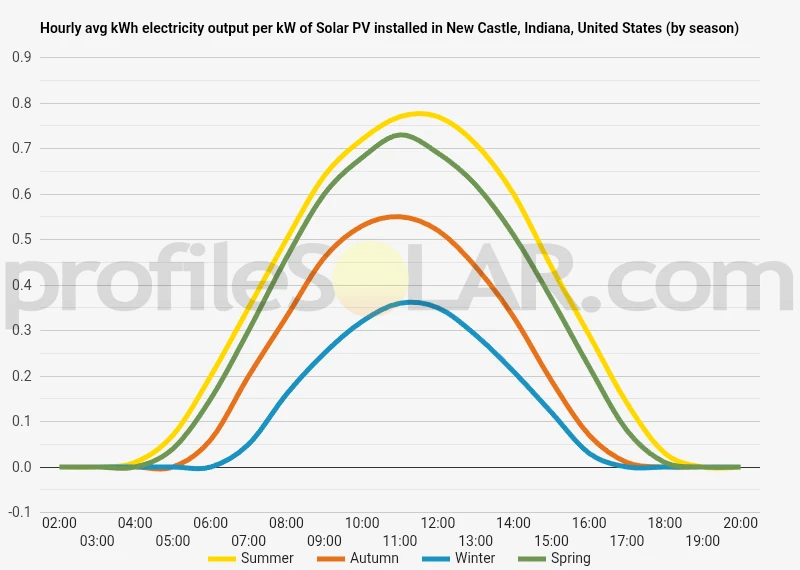

Solar output per kW of installed solar PV by season in New Castle, Indiana

Seasonal solar PV output for Latitude: 39.9213, Longitude: -85.3782 (New Castle, Indiana, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in New Castle, Indiana, United States

To maximize your solar PV system's energy output in New Castle, Indiana, United States (Lat/Long 39.9213, -85.3782) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for New Castle, Indiana, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in New Castle, Indiana, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	54° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in New Castle, Indiana, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in New Castle, Indiana, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around New Castle, Indiana, United States

The landscape around New Castle, Indiana presents a predominantly flat to gently rolling topography, characteristic of the Central Till Plain region of the Midwestern United States. This area was shaped primarily by glacial activity during the last ice age, resulting in a relatively level terrain with subtle undulations. The elevation in New Castle hovers around 1,050 feet (320 meters) above sea level, with minimal dramatic changes in elevation throughout the immediate vicinity. The surrounding countryside features open agricultural fields interspersed with small woodlots and riparian corridors along streams. The Big Blue River and its tributaries have carved shallow valleys through the otherwise level landscape, creating some of the only notable topographic relief in the area. These waterways generally flow in a southwesterly direction across the region.

Soil and Surface Characteristics

The soils around New Castle are predominantly fertile silt loams and clay loams derived from glacial till deposits. These soils have historically supported extensive agricultural development, with much of the natural vegetation having been cleared for farming. The flat terrain has minimal natural impediments to development, making large portions of land potentially suitable for various uses including renewable energy installations.

Optimal Areas for Solar Development

For large-scale solar photovoltaic installations, the most suitable areas near New Castle would be the extensive agricultural lands that feature minimal slope, good drainage, and unobstructed southern exposure. Specifically, the flat farmlands extending south and east of New Castle offer particularly promising conditions for solar development. These areas combine favorable topographic characteristics with proximity to existing electrical infrastructure and transportation networks. The agricultural plains between New Castle and Spiceland to the south, as well as the level terrain extending toward Millville and Blountsville to the east, present minimal shading concerns and have sufficient contiguous acreage to support commercial-scale solar installations. These locations also benefit from being situated away from flood-prone areas along the Big Blue River, reducing potential environmental complications. Areas with gentle south-facing slopes, though less common in this relatively flat region, would provide marginally enhanced solar exposure compared to perfectly level ground. Some such terrain can be found in the subtle rises northeast of New Castle.

Topographic Limitations

While generally favorable, certain areas around New Castle present challenges for large-scale solar development. The riparian zones along the Big Blue River and its tributaries feature more varied topography and potential flooding concerns, making them less ideal for solar installations. Additionally, the scattered woodlots and residential developments, particularly to the west and northwest of New Castle, would require clearing or present fragmented land availability that could complicate large-scale development. The few areas with steeper slopes, primarily associated with stream valleys, would require more extensive grading work, potentially increasing development costs and environmental impacts. However, these steeper areas represent a relatively small percentage of the overall landscape around New Castle.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
