Celina, Texas, located in the Northern Sub Tropics at coordinates 33.3246, -96.7844, presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations in output.

Seasonal Solar Performance

The solar energy production at this location shows significant seasonal fluctuation. Summer delivers the highest output at 6.89 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best performing season with 5.27 kWh per day per kW, while autumn drops to 4.86 kWh per day per kW. Winter presents the most challenging conditions with only 2.97 kWh per day per kW of production. This seasonal pattern means that summer and spring are the ideal times for solar generation at this location, producing more than double the energy output compared to winter months. The substantial difference between peak summer and winter production highlights the importance of proper system sizing and energy storage considerations for year-round energy needs.

Optimal Panel Installation

For fixed panel installations at this Celina location, the ideal angle to tilt panels for maximum total year-round production is 29 degrees facing South. This calculation accounts for the site's latitude, daily solar elevation angles throughout the year, and weights these angles by daily photovoltaic potential using solar irradiance data, including Earth's elliptical orbit variations.

Local Environmental and Weather Factors

Several significant environmental and weather factors in the North Texas region can impact solar production at this location:

• Severe Weather Events: Celina experiences frequent thunderstorms, occasional tornadoes, and hailstorms that can damage solar panels and reduce production
• High Summer Temperatures: Extreme heat common in Texas summers can reduce panel efficiency, as solar panels typically lose efficiency as temperatures rise above optimal operating ranges
• Dust and Pollen: The area's agricultural surroundings and seasonal pollen can accumulate on panels, reducing light transmission and energy output
• Humidity and Moisture: High humidity levels can affect electrical connections and create condensation issues

Preventative Measures for Enhanced Production

To maximize solar energy production despite these challenges, several preventative measures should be implemented:

• Impact-Resistant Panels: Install solar panels rated for hail impact and high wind speeds to withstand severe weather common in North Texas
• Proper Ventilation: Ensure adequate airflow beneath panels to help manage high summer temperatures and maintain efficiency
• Regular Cleaning Schedule: Implement routine panel cleaning to remove dust, pollen, and debris, particularly during high-pollen seasons in spring
• Quality Mounting Systems: Use robust mounting systems designed for high wind loads and thermal expansion in extreme temperature variations
• Microinverters or Power Optimizers: Consider panel-level power electronics to minimize production losses from partial shading or individual panel issues

Despite these environmental challenges, Celina's location offers decent solar potential, particularly during the warmer months. With proper installation techniques and preventative measures, solar installations can perform effectively year-round while withstanding the region's weather extremes.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

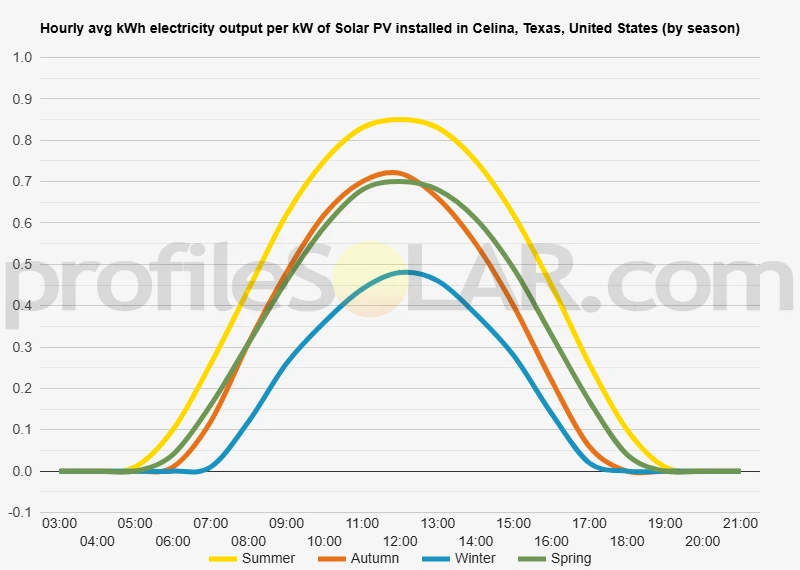

Solar output per kW of installed solar PV by season in Celina, Texas

Seasonal solar PV output for Latitude: 33.3246, Longitude: -96.7844 (Celina, Texas, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Celina, Texas, United States

To maximize your solar PV system's energy output in Celina, Texas, United States (Lat/Long 33.3246, -96.7844) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Celina, Texas, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Celina, Texas, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	38° South in Autumn	49° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Celina, Texas, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Celina, Texas, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Celina, Texas, United States

Topographical Features Around Celina

The topography surrounding Celina, Texas is characterized by gently rolling terrain typical of the North Texas region. This area sits within the Eastern Cross Timbers ecoregion, where the landscape consists of low hills and broad valleys with relatively modest elevation changes. The terrain generally slopes from northwest to southeast, with elevations ranging from approximately 500 to 700 feet above sea level across the broader region.

The local landscape features a mix of prairie grasslands interspersed with clusters of oak woodlands, creating a mosaic pattern across the countryside. Small creeks and tributaries flow through the area, including parts of the Elm Fork Trinity River watershed, which has carved shallow valleys and drainage channels throughout the region. These waterways create minor undulations in the otherwise relatively flat to gently rolling topography.

The soil composition in this area consists primarily of clay and sandy loam, with some areas featuring more rocky outcrops where limestone bedrock lies closer to the surface. The terrain is generally well-drained, though some lower-lying areas near creek bottoms may experience seasonal flooding during heavy rainfall events.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Celina would be the broad, relatively flat agricultural areas that extend to the east and southeast of the town. These expanses of farmland offer several advantages for solar development, including minimal topographical obstacles, existing cleared land, and good accessibility for construction and maintenance equipment.

The gently sloping terrain in these agricultural areas provides natural drainage while maintaining relatively consistent elevation, which helps minimize grading costs and installation complexity. The southeast-facing slopes in particular would be beneficial for solar panel orientation, as they can be positioned to maximize exposure to the sun throughout the day.

Areas to the west and northwest of Celina, while still potentially viable, present more challenges due to increased tree coverage from the Cross Timbers forest ecosystem and slightly more varied topography. The wooded areas would require significant clearing, which increases development costs and environmental impact considerations.

The flat to gently rolling agricultural lands extending toward the communities of Prosper and Frisco to the south offer excellent potential for solar development. These areas benefit from existing rural road infrastructure for access while maintaining the open, unobstructed terrain ideal for large solar arrays. The minimal elevation changes across these agricultural zones would allow for efficient installation of tracking systems if desired, while the generally stable soil conditions provide good foundation support for mounting systems.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
