Solar Energy Potential at Norsup, Malampa, Vanuatu

Norsup, Malampa, Vanuatu, located at latitude -16.0667 and longitude 167.3833, offers a promising location for solar PV installations with some seasonal variations in energy production. This tropical location experiences relatively consistent sunlight throughout the year, with weather patterns characterized more by wet and dry periods than by temperature extremes. Solar energy production in Norsup shows moderate seasonal fluctuation. Summer months yield the highest output at 6.70 kWh per day for each kilowatt of installed capacity. Spring follows with a solid 6.06 kWh/day per kW. Production decreases somewhat during autumn (5.29 kWh/day) and reaches its lowest point in winter (4.81 kWh/day). For maximizing year-round solar energy production in Norsup, Malampa, fixed solar panels should be installed at a 14-degree tilt facing North. This specific angle has been calculated to optimize annual energy capture based on the location's position relative to the sun's path throughout the year.

Environmental Considerations

Several environmental factors could impact solar production in Norsup:

• Tropical cyclones pose a significant risk, as Vanuatu lies within a highly active cyclone belt. These powerful storms typically occur between November and April, bringing destructive winds that can damage solar installations.
• Heavy rainfall during the wet season (November to April) can reduce solar efficiency through cloud cover and direct precipitation on panels.
• High humidity levels year-round may accelerate corrosion of mounting hardware and electrical components.
• Volcanic ash from occasional eruptions can coat panels and reduce efficiency.

Preventative Measures

To mitigate these environmental challenges, several installation precautions are recommended: Use cyclone-rated mounting systems with reinforced foundations that can withstand high wind loads up to 250 km/h. Panels should be installed with minimal gaps between the mounting surface to reduce wind uplift. Select marine-grade stainless steel hardware and corrosion-resistant components specifically designed for tropical coastal environments. Additional protective coatings on metal components can further extend system longevity. Implement a regular cleaning schedule, especially during dry periods when dust accumulation is highest. Consider automated cleaning systems or hydrophobic panel coatings to minimize manual maintenance requirements. Install micro-inverters or power optimizers rather than string inverters, as these allow each panel to operate independently, minimizing the impact of partial shading or damage to individual panels. Despite these challenges, Norsup's location offers sufficient solar irradiance throughout the year to make solar PV a viable energy solution when properly implemented with these environmental considerations in mind.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3 locations across Vanuatu. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Vanuatu by location

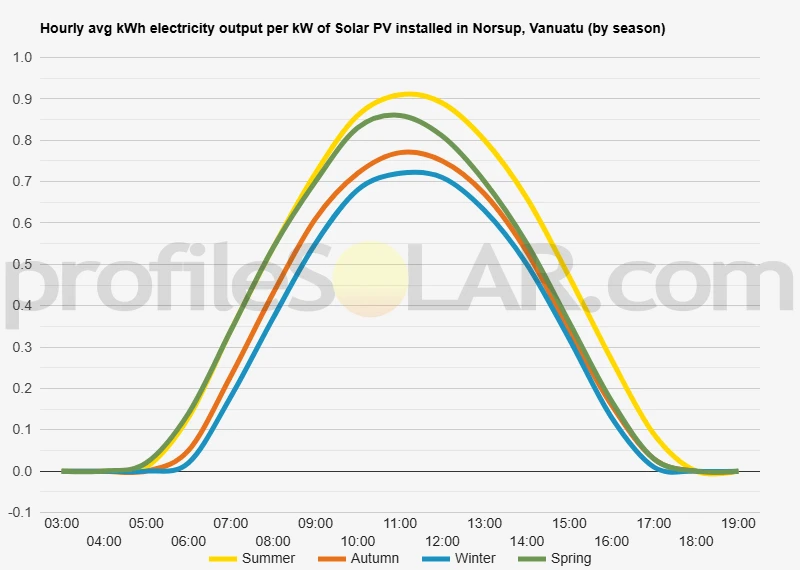

Solar output per kW of installed solar PV by season in Norsup

Seasonal solar PV output for Latitude: -16.0667, Longitude: 167.3833 (Norsup, Vanuatu), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 14° North in Norsup, Vanuatu

To maximize your solar PV system's energy output in Norsup, Vanuatu (Lat/Long -16.0667, 167.3833) throughout the year, you should tilt your panels at an angle of 14° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Norsup, Vanuatu

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Norsup, Vanuatu. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 14° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
0° in Summer	22° North in Autumn	32° North in Winter	10° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Norsup, Vanuatu

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Norsup, Vanuatu.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Norsup, Vanuatu

The topography around Norsup, Vanuatu presents a diverse landscape characteristic of many islands in the Melanesian archipelago. Norsup is situated on Malekula, Vanuatu's second-largest island, which features a varied terrain of coastal plains transitioning to rolling hills and eventually rising to more mountainous regions in the interior.

Coastal Features

The immediate area around Norsup consists primarily of relatively flat coastal plains. These lowlands extend from the shoreline inward for several kilometers before the terrain begins to rise more noticeably. The northeastern coast of Malekula where Norsup is located faces the Coral Sea and features numerous small bays and inlets. The coastal areas are typically covered with tropical vegetation, including coconut palms and various other native flora.

Interior Highlands

Moving inland from Norsup, the landscape gradually transforms into rolling hills that become increasingly steep. The central part of Malekula island contains more pronounced mountains, with some peaks reaching elevations of approximately 800 meters above sea level. These highlands are generally covered in dense tropical rainforest, with steep slopes and numerous small streams flowing toward the coast.

Volcanic Origins

Like much of Vanuatu, Malekula's topography has been shaped by volcanic activity. Though not currently active on Malekula itself, the island's foundation is volcanic in origin, contributing to the fertile soil and distinctive terrain features. This volcanic heritage has created a landscape of varying elevations, with some areas featuring exposed rock formations amidst the vegetation cover.

Suitable Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most appropriate terrain would be found in the flatter coastal plains surrounding Norsup. These areas offer several advantages: The relatively level ground reduces construction complexity and cost for large arrays. The northeastern coastal plains receive consistent solar exposure without significant shadowing from mountains. These regions typically have less dense forest cover compared to the highlands, reducing the environmental impact of clearing. Specifically, the coastal plains extending south and southeast of Norsup present promising locations for solar development. These areas combine favorable topographical characteristics with proximity to existing infrastructure and population centers. The gently sloping terrain in these locations would facilitate drainage while maintaining good solar exposure. The highlands, while offering some plateaus that could potentially accommodate solar installations, generally present more challenges due to their steeper slopes, denser vegetation, and increased cloud cover at higher elevations. Additionally, the more remote nature of these areas would complicate access for construction and maintenance. Any large-scale solar development would need to account for the region's susceptibility to tropical cyclones, which can impact Vanuatu seasonally. Installations would require robust anchoring systems to withstand potential high winds, particularly in more exposed coastal locations.
