Ndola, Copperbelt, Zambia, situated at latitude -12.9662 and longitude 28.6305, presents a promising location for solar energy generation. This tropical setting offers consistent sunlight throughout the year, with seasons primarily characterized by wet and dry periods rather than temperature extremes.

The solar energy potential in Ndola is remarkably stable across seasons, with only slight variations in daily electricity output. Spring stands out as the most productive season, generating an impressive 7.01 kWh per day for each kilowatt of installed solar capacity. Summer sees a slight dip to 5.93 kWh/day, while both autumn and winter maintain a steady 6.13 kWh/day.

These figures indicate that Ndola is an excellent location for year-round solar energy production. The minimal seasonal fluctuations ensure a reliable power supply throughout the year, with spring offering a notable boost in energy generation.

Optimal Panel Installation

To maximize solar energy capture in Ndola, Copperbelt, fixed solar panels should be tilted at an angle of 13 degrees facing North. This optimal angle takes into account the city's latitude and the sun's position throughout the year, ensuring the panels receive the most direct sunlight possible across all seasons.

Environmental Considerations

While Ndola's climate is generally favorable for solar energy production, there are a few environmental factors to consider:

1. Dust and particulate matter: Zambia's dry seasons can lead to increased dust in the air, which may accumulate on solar panels and reduce their efficiency.
2. Heavy rainfall: During the wet season, frequent and intense rains could temporarily reduce solar output.

To mitigate these issues, regular cleaning and maintenance of solar panels is crucial. Installing panels at a slight angle (as recommended) can help with natural cleaning during rainfall. Additionally, using high-quality, weather-resistant panels and implementing a robust cleaning schedule during dry periods can help maintain optimal energy production throughout the year.

In conclusion, Ndola's location offers excellent potential for solar energy generation, with consistent output across seasons and particularly high productivity in spring. With proper installation and maintenance, solar PV systems in this area can provide a reliable and sustainable source of electricity year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 8 locations across Zambia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Zambia by location

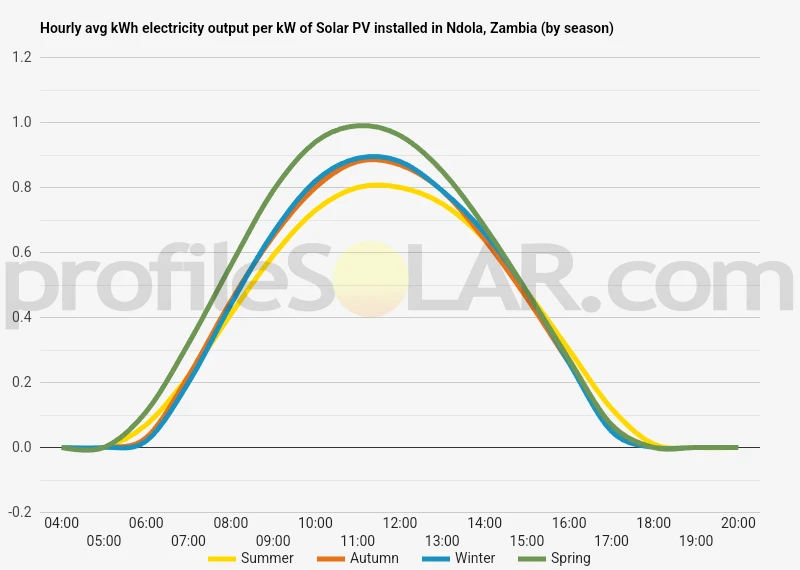

Solar output per kW of installed solar PV by season in Ndola

Seasonal solar PV output for Latitude: -12.9662, Longitude: 28.6305 (Ndola, Zambia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.93kWh/day in Summer.

Average 6.13kWh/day in Autumn.

Average 6.13kWh/day in Winter.

Average 7.01kWh/day in Spring.

Ideally tilt fixed solar panels 13° North in Ndola, Zambia

To maximize your solar PV system's energy output in Ndola, Zambia (Lat/Long -12.9662, 28.6305) throughout the year, you should tilt your panels at an angle of 13° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: -12.9662, Longitude: 28.6305, the ideal angle to tilt panels is 13° North

Seasonally adjusted solar panel tilt angles for Ndola, Zambia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ndola, Zambia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° North tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ndola, Zambia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ndola, Zambia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ndola, Zambia

The topography around Ndola, Zambia is generally characterized by a gently rolling landscape with moderate elevation changes. Ndola sits on the Copperbelt Plateau, which is part of the larger Central African Plateau. The area has an average elevation of about 1,200 to 1,300 meters (3,900 to 4,300 feet) above sea level.

The terrain surrounding Ndola consists of open grasslands, scattered woodlands, and some areas of miombo forest. The landscape is punctuated by occasional hills and shallow valleys, but there are no major mountains or steep cliffs in the immediate vicinity. The Kafubu River flows near the city, creating some low-lying areas and contributing to the region's gentle undulations.

For large-scale solar PV installations, the areas most suited would be the open, flat to gently sloping lands surrounding Ndola. These areas offer several advantages for solar energy production:

1. The relatively flat terrain makes construction and maintenance of solar arrays easier and more cost-effective.
2. Open grasslands provide ample space for large installations without the need for extensive land clearing.
3. The elevation of the Copperbelt Plateau means these areas receive good sun exposure throughout the year.

Specifically, the regions to the east and southeast of Ndola would likely be most suitable for large-scale solar PV projects. These areas tend to have fewer trees and more open space, reducing potential shading issues. Additionally, they are generally flatter and have good road access, which is important for the transportation of equipment and ongoing maintenance.

It's worth noting that while the topography is favorable, other factors such as proximity to power infrastructure, land ownership, and environmental considerations would also play crucial roles in determining the best locations for solar PV installations. A detailed site survey and environmental impact assessment would be necessary before embarking on any large-scale solar project in the region.
