Kunduz, Afghanistan, situated at 36.7239° North, 68.8573° East in the Northern Temperate Zone, presents a variable environment for solar PV energy generation throughout the year. The location experiences significant seasonal fluctuations in solar energy production.

Seasonal Solar Production

Solar panels in Kunduz generate their highest output during summer months, producing approximately 8.78kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.54kWh/day, while autumn yields a moderate 5.19kWh/day. Winter performance drops considerably to just 3.16kWh/day per kW installed.

This seasonal pattern creates a more than 2.7-fold difference between the best and worst producing seasons, with summer generating nearly three times the electricity of winter months. The significant drop during winter months means that supplementary power sources might be necessary during this period if consistent energy supply is required.

Optimal Installation Configuration

For fixed solar panel installations in Kunduz, the ideal tilt angle to maximize year-round energy production is 31 degrees facing South. This specific angle optimizes the annual solar harvest by balancing seasonal variations and accounting for the Earth's elliptical orbit.

Environmental Challenges

Several significant environmental factors can impede solar production in Kunduz:

• Dust storms and airborne particulates are common in this arid region, potentially reducing panel efficiency by coating surfaces and blocking sunlight
• Extreme temperature variations between seasons can affect panel efficiency, as photovoltaic cells typically lose efficiency at very high temperatures
• Occasional snowfall in winter months may temporarily cover panels, halting production until the snow melts or is removed

Preventative Measures

To mitigate these environmental challenges, several preventative measures can be implemented:

• Regular cleaning protocols to remove dust accumulation, potentially including automated cleaning systems for larger installations
• Installing panels with sufficient elevation from the ground to reduce dust accumulation and allow snow to slide off more easily
• Using panels with anti-reflective coatings and high temperature tolerance ratings suitable for the local climate
• Implementing tracking systems rather than fixed installations could increase overall production, though this adds complexity and maintenance requirements
• Building protective windbreaks around installations to reduce dust deposition during storms

With proper system design accounting for these local factors, Kunduz can still be a viable location for solar energy production, particularly capitalizing on the excellent summer and spring generation potential.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 7 locations across Afghanistan. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Afghanistan by location

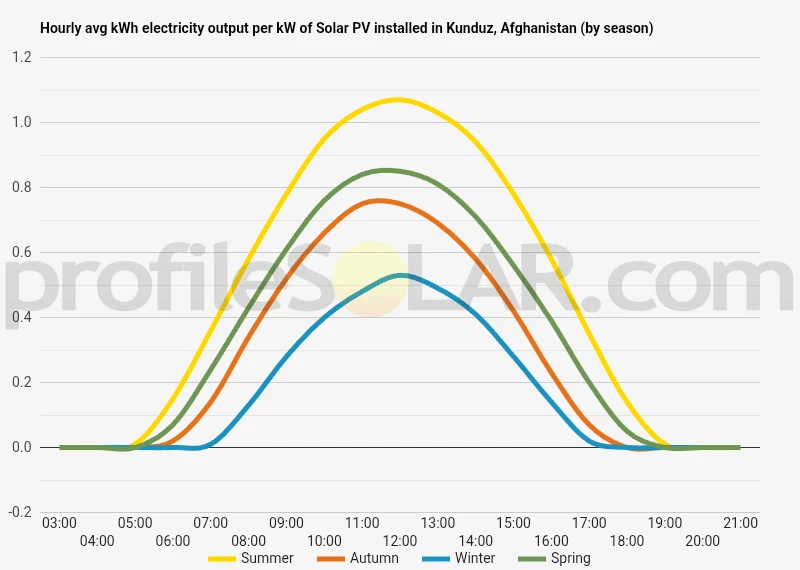

Solar output per kW of installed solar PV by season in Kunduz

Seasonal solar PV output for Latitude: 36.7239, Longitude: 68.8573 (Kunduz, Afghanistan), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Kunduz, Afghanistan

To maximize your solar PV system's energy output in Kunduz, Afghanistan (Lat/Long 36.7239, 68.8573) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kunduz, Afghanistan

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kunduz, Afghanistan. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	40° South in Autumn	51° South in Winter	28° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kunduz, Afghanistan

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kunduz, Afghanistan.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kunduz, Afghanistan

Kunduz, situated in northern Afghanistan, lies within a region characterized by diverse topographical features. The city itself is nestled in a relatively flat plain at an elevation of approximately 400 meters above sea level. This plain forms part of the broader Kunduz River valley, which provides fertile agricultural land that has been cultivated for centuries. The immediate surroundings of Kunduz consist primarily of flat to gently rolling terrain, with the Kunduz River flowing through the area. This river is a tributary of the Amu Darya (historically known as the Oxus), which forms part of Afghanistan's northern border with neighboring countries.

Surrounding Mountain Ranges

While Kunduz itself occupies a lowland position, the broader regional landscape is defined by the Hindu Kush mountain range that dominates much of Afghanistan's topography. These mountains lie primarily to the south and east of Kunduz, creating a dramatic backdrop visible from the city on clear days. The Hindu Kush rises dramatically from the plains, with peaks reaching several thousand meters in altitude. To the north and northeast, the terrain gradually transitions into the Central Asian steppe, extending toward Tajikistan. This area features increasingly arid conditions with sparse vegetation typical of semi-desert environments.

Potential Areas for Solar PV Development

The flat plains surrounding Kunduz present promising opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the non-agricultural lands to the north and northwest of the city, where relatively level terrain would minimize construction costs and maximize solar exposure. These northern plains offer several advantages for solar development. First, the flat topography requires minimal land preparation and allows for efficient array configurations. Second, these areas experience less agricultural activity than the fertile river valley, reducing potential land-use conflicts. Third, the natural elevation provides good drainage, which helps prevent flooding that could damage solar infrastructure.

Topographical Considerations for Solar Development

The gently sloping areas to the east of Kunduz, where the plains begin to rise toward the foothills, could also accommodate solar installations. These slight inclines can be advantageous for solar placement, as they can be oriented to optimize sun exposure throughout the day. Areas to avoid would include the flood-prone zones immediately adjacent to the Kunduz River and its tributaries. Although these locations offer flat terrain, the risk of seasonal flooding makes them less suitable for permanent infrastructure investments. The semi-arid regions to the north, transitioning toward the Central Asian steppe, represent perhaps the most promising locations for large-scale solar development. These areas combine favorable topography with minimal competing land uses and reduced vegetation that might otherwise obstruct solar panels or require extensive clearance. In summary, the topographical characteristics of the Kunduz region provide several viable options for solar PV development, with the northern plains and eastern gentle slopes offering the most favorable conditions when considering terrain, existing land use, and proximity to the existing power infrastructure of Kunduz city.
