El Calafate, Santa Cruz, Argentina presents significant challenges for year-round solar energy generation due to its extreme southern latitude and harsh Patagonian climate conditions.

Solar Energy Production Potential

The solar energy output at El Calafate varies dramatically throughout the year, making it a less than ideal location for consistent solar power generation. Summer months deliver the strongest performance at 7.28 kWh per day per kW of installed capacity, while spring also shows respectable output at 5.65 kWh per day per kW. However, the location faces severe limitations during colder months. Autumn production drops significantly to 2.83 kWh per day per kW, and winter performance becomes extremely poor at just 1.28 kWh per day per kW of installed solar capacity. For fixed panel installations at this location, the optimal tilt angle is 42 degrees facing north to maximize total year-round solar production. This angle helps capture the maximum available sunlight throughout the seasonal variations.

Environmental and Weather Challenges

El Calafate's location in Patagonia presents several significant environmental factors that can impede solar energy production:

• Extreme winds: The region experiences frequent high-velocity winds that can damage solar panels and mounting systems
• Snow and ice accumulation: Winter weather can cover panels, blocking sunlight and reducing efficiency
• Temperature fluctuations: Rapid temperature changes can stress panel materials and reduce their lifespan
• Dust and debris: Strong winds carry particles that accumulate on panel surfaces, reducing light transmission
• Hail storms: Occasional severe weather can physically damage solar installations

Preventative Installation Measures

Several strategies can help maximize solar energy production despite these challenging conditions. Installing reinforced mounting systems designed for high wind loads is essential, using materials rated for the extreme weather conditions typical of Patagonia. Regular maintenance becomes crucial in this environment. Installing panels at steeper angles can help snow slide off naturally, while ensuring easy access for cleaning accumulated dust and debris will maintain optimal performance. Protective measures such as impact-resistant glass and robust panel frames can help withstand hail and wind-borne debris. Additionally, installing heating elements or automated cleaning systems can prevent ice buildup during winter months. The location would benefit most from solar installations designed as seasonal supplements rather than primary energy sources, given the dramatic variation between summer peak performance and winter minimal output.

Note: The Southern Temperate Zone extends from -35° latitude South down to -66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 519 locations across Argentina. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Argentina by location

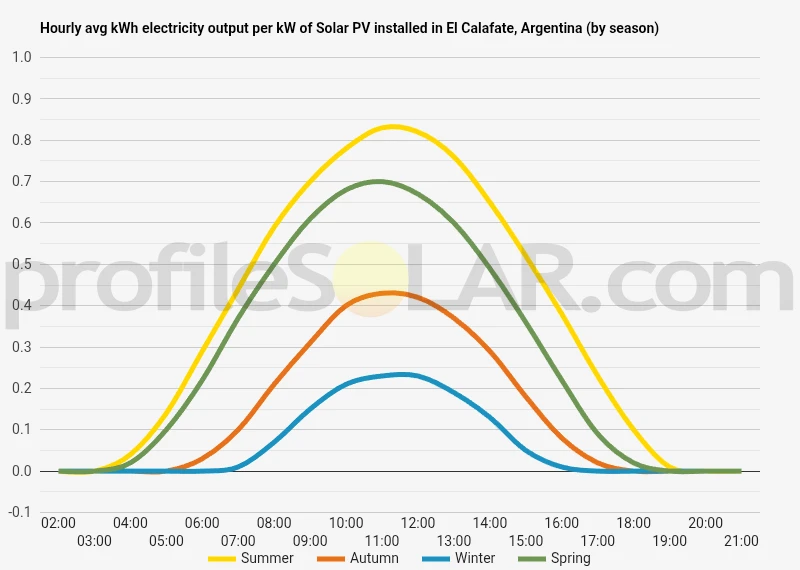

Solar output per kW of installed solar PV by season in El Calafate

Seasonal solar PV output for Latitude: -50.4086, Longitude: -71.8269 (El Calafate, Argentina), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 42° North in El Calafate, Argentina

To maximize your solar PV system's energy output in El Calafate, Argentina (Lat/Long -50.4086, -71.8269) throughout the year, you should tilt your panels at an angle of 42° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Calafate, Argentina

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Calafate, Argentina. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 42° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
34° North in Summer	53° North in Autumn	65° North in Winter	42° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Calafate, Argentina

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Calafate, Argentina.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Calafate, Argentina

Topography Around El Calafate

El Calafate sits in the heart of Patagonia's dramatic landscape, positioned on the southern shore of Lago Argentino in Santa Cruz Province. The town occupies a relatively flat plain at approximately 200 meters above sea level, nestled between the expansive waters of Argentina's largest lake and the rising foothills of the Andes Mountains to the west. This location places it within the Patagonian steppe, a vast semi-arid plateau that stretches across much of southern Argentina. The immediate surroundings of El Calafate are characterized by gently rolling terrain with sparse vegetation typical of the Patagonian environment. The landscape consists primarily of grasslands and scrubland, with scattered bushes and hardy grasses adapted to the region's harsh climate. To the west, the terrain gradually rises toward the Andes, where the famous Perito Moreno Glacier and other ice formations of the Southern Patagonian Ice Field can be found approximately 80 kilometers away. The eastern and northern areas around El Calafate feature more consistent flat to gently undulating terrain, extending into the broader Patagonian plateau. This region is marked by wide open spaces with minimal natural obstacles, creating expansive views across the steppe landscape. The soil composition is generally rocky and sandy, with patches of more fertile ground near water sources.

Areas Suitable for Large-Scale Solar PV Development

The most promising locations for large-scale solar photovoltaic installations around El Calafate lie primarily to the east and northeast of the town, where the Patagonian plateau offers extensive flat terrain with minimal topographical constraints. These areas benefit from consistent elevation and gentle gradients that would require minimal site preparation and grading work for solar panel installation. The eastern plains extending toward the Atlantic coast provide particularly favorable conditions, with vast unobstructed spaces that would allow for optimal panel spacing and minimal shading issues. The terrain in these areas is relatively stable, with good drainage characteristics that would help prevent water accumulation around solar installations during the brief summer months when some precipitation occurs. Areas to the north and northwest of El Calafate also present good opportunities, particularly where the land remains flat before beginning its gradual rise toward the Andes. These locations would benefit from being somewhat sheltered from the strongest westerly winds while still maintaining the open exposure necessary for solar collection. The sparse vegetation in these areas would require minimal clearing, reducing environmental impact and installation costs. The southern areas near Lago Argentino, while scenic, would be less suitable due to potential issues with moisture from the lake and slightly more variable terrain. The western approaches toward the mountains should generally be avoided for large installations due to increasing elevation changes, potential wind exposure, and the greater likelihood of cloud cover and weather systems moving in from the Andes.

Argentina solar PV Stats as a country

Argentina ranks 43rd in the world for cumulative solar PV capacity, with 1,071 total MW's of solar PV installed. This means that 1.50% of Argentina's total energy as a country comes from solar PV (that's 35th in the world). Each year Argentina is generating 24 Watts from solar PV per capita (Argentina ranks 63rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Argentina?

Yes, there are several incentives for businesses wanting to install solar energy in Argentina. The government offers a range of tax credits and subsidies for businesses that invest in renewable energy projects. Additionally, the country has implemented a net metering system which allows businesses to sell excess electricity generated from their solar installations back to the grid at a premium rate. Finally, the government also provides access to low-interest loans and grants for businesses looking to invest in solar energy projects.

Do you have more up to date information than this on incentives towards solar PV projects in Argentina? Please reach out to us and help us keep this information current. Thanks!
