Location estimate

Pocito

San Juan · Argentina

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

8.24

kWh/day

Autumn

5.09

kWh/day

Winter

4.30

kWh/day

Spring

7.92

kWh/day

Shared scale: 0–9.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Pocito, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 8.24 8.24 × 1 kWp = 8.24 kWh/day
Autumn 5.09 5.09 × 1 kWp = 5.09 kWh/day
Winter 4.30 4.30 × 1 kWp = 4.30 kWh/day
Spring 7.92 7.92 × 1 kWp = 7.92 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
8.24
Autumn · kWh/day
5.09
Winter · kWh/day
4.30
Spring · kWh/day
7.92

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 28 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
28°
Facing direction
North

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Dec, Jan, Feb
16°North
Autumn
Mar, Apr, May
37°North
Winter
Jun, Jul, Aug
47°North
Spring
Sep, Oct, Nov
25°North

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Pocito, San Juan, Argentina.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 16 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

16° tilt · North

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 37 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

37° tilt · North

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 47 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

47° tilt · North

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 25 degrees above horizontal; facing North. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

25° tilt · North

Illustrative direction; exact azimuth not recorded.

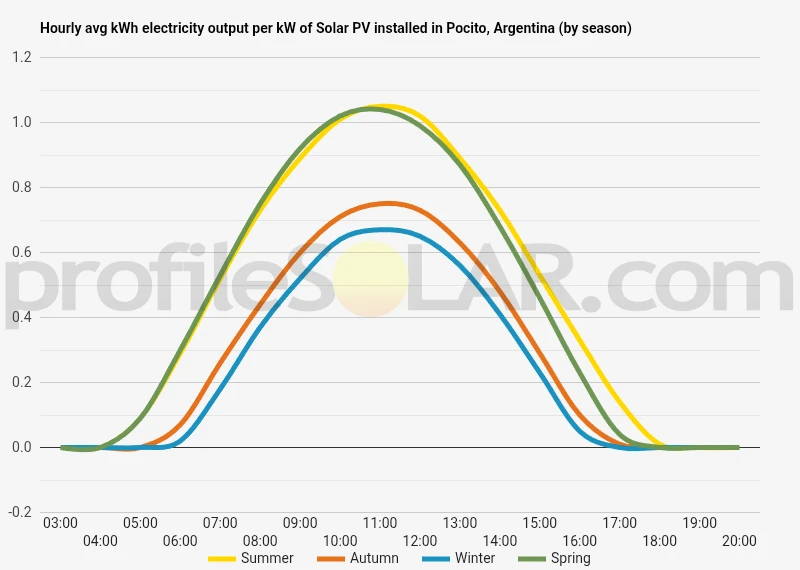

Historical hourly-by-season solar output chart for Pocito, Argentina. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Pocito, Argentina

Hourly profiles by season — Pocito, Argentina · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Pocito, Argentina · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Pocito

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 3.11 m

Proportional side viewDesign sun: ≈ 34.9° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 1.35 m
Added margin
≈ 0 m
Gap including margin
≈ 1.35 m
Panel horizontal footprint
≈ 1.77 m
Panel vertical rise
≈ 0.94 m
Pitch before margin
≈ 3.11 m

Simplified level ground, equator-facing cross-section. Approximate Southern Hemisphere winter solstice at solar noon (day 172). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
28°
Added margin
0 m
Latitude from the catalogue
-31.647800000000000000° (Southern Hemisphere)
Panel horizontal footprint
1.765895185717854 m
Panel vertical rise
0.9389431255717816 m
Calculated clear gap
1.3458224074591298 m
Pitch before margin
3.1117175931769836 m
Gap including margin
1.3458224074591298 m
Row pitch including margin
3.1117175931769836 m
Design solar elevation
34.90241715318635°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Pocito

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Pocito belongs to San Juan's Tulum Valley landscape, where cultivated and developed ground meets the piedmont of the Sierra Chica de Zonda. That contrast between an irrigated valley and rising, drier terrain is more useful for understanding a local solar proposal than treating the whole area as empty desert.

Read the full article

Our estimated daily electricity for each 1 kW of rated panel capacity averages 8.24 kWh/day in summer, 7.92 kWh/day in spring, 5.09 kWh/day in autumn and 4.30 kWh/day in winter. Spring is close to summer, while winter's daily average is about 52% of summer's. The summer-to-winter ratio is about 1.9 to one. This describes the seasonal spread without establishing a particular system's reliability or annual financial return. The year-round fixed-panel reference is 28° up from horizontal facing North. It provides an orientation to compare with the mounting surface and the actual skyline. The energy figures are not a demonstration that every installation at that angle achieves a maximum or that changing tilt produces a stated gain. For a Pocito site, follow irrigation, existing cultivation and drainage as carefully as the view towards higher ground. Alluvial surfaces can look open and gently sloping while still having distinct channels, land uses and ground conditions. Local measurements and operating experience should guide cleaning and equipment decisions; the catalogue does not support assigning a 5–15% dust loss to an individual installation. The valley-and-piedmont setting keeps the investigation focused on this part of San Juan without declaring its eastern land ideal or agriculturally expendable.

Topography around Pocito

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Pocito forms part of the Tulum Valley in San Juan. Its physical setting includes the Sierra Chica de Zonda, the adjoining piedmont and valley surfaces associated with alluvial deposits. The departmental territorial plan identifies these as distinct landscape units.

Read the full topography description

Regional research describes the western Tulum margin as a transition from mountain relief through sloping piedmont to the San Juan River's alluvial fan. Irrigation and cultivation form another important part of the wider valley landscape. These descriptions provide regional context; the detailed findings of a particular engineering study elsewhere in the valley do not establish Pocito's individual soil or foundation conditions. For solar assessment, follow the actual terrain and water-management features across the proposed footprint. A dry channel needs to remain visible in the survey, and cultivated ground cannot be assumed to have little agricultural value. Higher surfaces do not automatically have less dust or fewer shadows. Pocito's valley, piedmont and mountain backdrop offer a specific local framework while ground stability, drainage, land availability and the horizon of a particular array remain matters for site investigation.

Technical location reference

Approximate map point used for Pocito, Argentina

This coordinate is the calculation reference for Pocito, Argentina. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
-31.647800000000000000, -68.584800000000000000
Originally displayed coordinate
lat-31.6478 / long-68.5848

How the estimate works

How this Pocito estimate was calculated

Here is how I calculated the location estimate for Pocito, Argentina.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Pocito Location estimate includes and leaves out

Use the Pocito figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
