Rafaela, Santa Fe, Argentina presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations typical of its Southern Sub Tropics climate zone at coordinates -31.2655, -61.4816.

Seasonal Solar Performance

The location shows strong seasonal differences in solar energy production. Summer delivers the highest output at 7.96 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best performing season with 6.92 kWh per day per kW, offering excellent production levels. Autumn sees a significant drop to 4.55 kWh per day per kW, while winter represents the lowest production period at just 3.83 kWh per day per kW. This winter figure is less than half the summer output, reflecting the substantial seasonal variation typical of this latitude.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle is 27 degrees facing North to maximize total year-round solar production. This angle has been calculated using weighted daily solar elevation angles and NASA solar irradiance data to account for Earth's elliptical orbit and seasonal variations.

Local Environmental Factors

Several environmental and weather factors in the Rafaela region can potentially impact solar energy production:

• Dust accumulation from agricultural activities in this farming region
• Seasonal rainfall patterns that may cause temporary shading from cloud cover
• Potential hail damage during severe weather events
• High humidity levels that can affect panel efficiency

Preventative Measures for Enhanced Production

To mitigate these local challenges and ensure optimal energy production, several installation strategies are recommended:

• Install panels with adequate spacing for air circulation to reduce humidity effects
• Implement regular cleaning schedules, particularly during dry agricultural seasons
• Use tempered glass panels rated for hail resistance
• Consider micro-inverters or power optimizers to minimize impact from partial shading
• Install monitoring systems to quickly identify performance issues

Despite these considerations, Rafaela's location offers reasonable solar potential, particularly during the warmer months when energy demand for cooling is typically highest.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 519 locations across Argentina. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Argentina by location

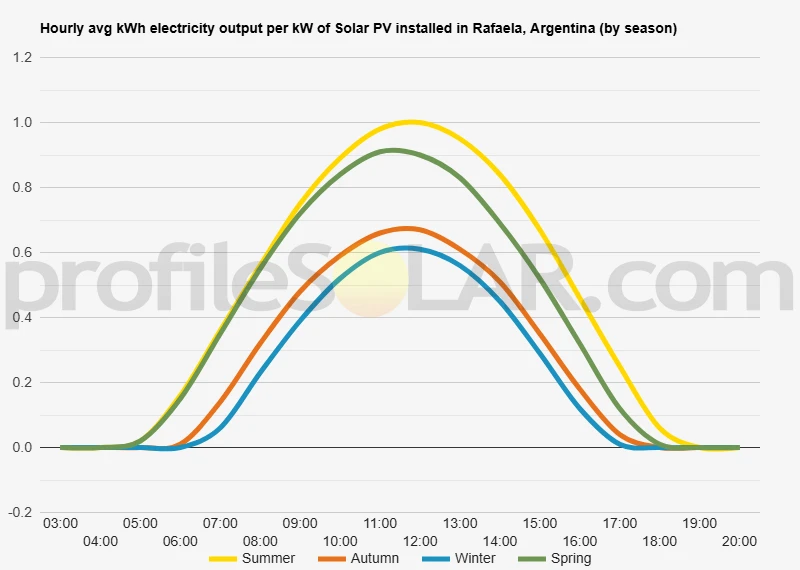

Solar output per kW of installed solar PV by season in Rafaela

Seasonal solar PV output for Latitude: -31.2655, Longitude: -61.4816 (Rafaela, Argentina), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° North in Rafaela, Argentina

To maximize your solar PV system's energy output in Rafaela, Argentina (Lat/Long -31.2655, -61.4816) throughout the year, you should tilt your panels at an angle of 27° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Rafaela, Argentina

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Rafaela, Argentina. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° North in Summer	37° North in Autumn	46° North in Winter	24° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Rafaela, Argentina

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Rafaela, Argentina.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Rafaela, Argentina

Topographical Features Around Rafaela

The landscape surrounding Rafaela in Argentina presents a distinctly flat and gently undulating terrain characteristic of the central Pampas region. This area sits within the vast Argentine plains, where the topography consists primarily of low-lying grasslands with minimal elevation changes across extensive distances. The terrain gradually slopes from west to east at an almost imperceptible grade, creating an expansive, open landscape that stretches toward the horizon in all directions. The region features predominantly fertile agricultural land with scattered gentle rises and shallow depressions that rarely exceed a few meters in height difference. These subtle variations in elevation are remnants of ancient geological processes and seasonal water flow patterns. The area lacks significant hills, mountains, or deep valleys, instead presenting a remarkably consistent elevation profile that varies by only modest amounts across large areas. Seasonal water courses and small streams create minor topographical features in the landscape, though these typically involve shallow channels rather than dramatic elevation changes. The terrain includes occasional slight ridges and broad, gentle swales that direct surface water flow during periods of precipitation, but these features remain quite subtle within the overall flat character of the region.

Optimal Areas for Large-Scale Solar Development

The expansive flat terrain surrounding Rafaela provides excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas lie to the west and southwest of the city, where the land maintains consistent gentle slopes with minimal topographical obstacles. These areas offer the advantage of unrestricted southern exposure across vast tracts of land, allowing for optimal panel orientation and spacing without interference from terrain features. The agricultural plains extending northward from Rafaela also present exceptional potential for solar development. The consistent elevation and lack of significant terrain variations mean that large solar arrays can be constructed with minimal grading or site preparation requirements. The open nature of this landscape ensures that panels installed in these areas would experience minimal shading from topographical features throughout the day and across seasons. Areas to the east of Rafaela, while equally flat, may require more careful consideration of existing agricultural infrastructure and drainage patterns. However, the gentle eastward slope of the terrain in some locations could actually provide slight advantages for panel positioning and natural drainage around solar installations. The region's topographical uniformity means that site selection for solar projects can focus primarily on factors such as grid connectivity, land availability, and agricultural considerations rather than being constrained by challenging terrain features. The lack of significant elevation changes across the landscape allows for flexible project sizing and design, making it possible to develop solar installations ranging from moderate-scale facilities to extensive utility-scale projects spanning multiple square kilometers.

Argentina solar PV Stats as a country

Argentina ranks 43rd in the world for cumulative solar PV capacity, with 1,071 total MW's of solar PV installed. This means that 1.50% of Argentina's total energy as a country comes from solar PV (that's 35th in the world). Each year Argentina is generating 24 Watts from solar PV per capita (Argentina ranks 63rd in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Argentina?

Yes, there are several incentives for businesses wanting to install solar energy in Argentina. The government offers a range of tax credits and subsidies for businesses that invest in renewable energy projects. Additionally, the country has implemented a net metering system which allows businesses to sell excess electricity generated from their solar installations back to the grid at a premium rate. Finally, the government also provides access to low-interest loans and grants for businesses looking to invest in solar energy projects.
