Habiganj, Sylhet Division, Bangladesh presents a moderately favorable location for year-round solar photovoltaic energy generation, with some seasonal variations that make certain times of the year more productive than others.

Seasonal Solar Performance

The solar energy output at this Northern Sub Tropical location varies significantly throughout the year. Spring emerges as the most productive season, generating 6.08kWh per day for each kilowatt of installed solar capacity. This represents the peak performance period when solar panels operate at their highest efficiency. Autumn follows as the second-best season with 5.11kWh/day per kW, making it another excellent time for solar energy production. Summer produces 4.58kWh/day per kW, while winter shows the lowest output at 4.42kWh/day per kW, though this still represents reasonable solar generation potential.

Optimal Panel Configuration

For maximum year-round energy production at Habiganj, Sylhet Division, solar panels should be installed at a fixed tilt angle of 23 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors in Habiganj could potentially impact solar energy production and require careful consideration during installation:

• Monsoon Season: Bangladesh experiences heavy monsoon rains, particularly during summer months, which can reduce solar irradiance and create prolonged cloudy conditions
• High Humidity: The subtropical climate brings persistent high humidity levels that can affect panel efficiency and promote corrosion
• Dust and Particulate Matter: Agricultural activities and general atmospheric dust can accumulate on panel surfaces, reducing light transmission
• Cyclones and Severe Weather: The region is susceptible to tropical cyclones and severe storms that could damage solar installations

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several protective measures should be implemented:

• Robust Mounting Systems: Install panels with reinforced mounting structures designed to withstand high winds and storm conditions
• Regular Cleaning Schedule: Establish frequent panel cleaning routines, especially during dusty periods, to maintain optimal light absorption
• Corrosion-Resistant Materials: Use marine-grade aluminum frames and stainless steel hardware to combat humidity-related corrosion
• Proper Drainage: Design installations with adequate drainage to prevent water accumulation during heavy rains
• Elevated Positioning: Mount panels at sufficient height to avoid flood damage and improve air circulation for cooling

Despite these environmental challenges, Habiganj's solar potential remains viable for year-round energy generation, particularly when proper installation techniques and maintenance practices are followed. The spring and autumn seasons offer especially strong performance that can help offset the reduced output during monsoon-affected periods.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 88 locations across Bangladesh. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Bangladesh by location

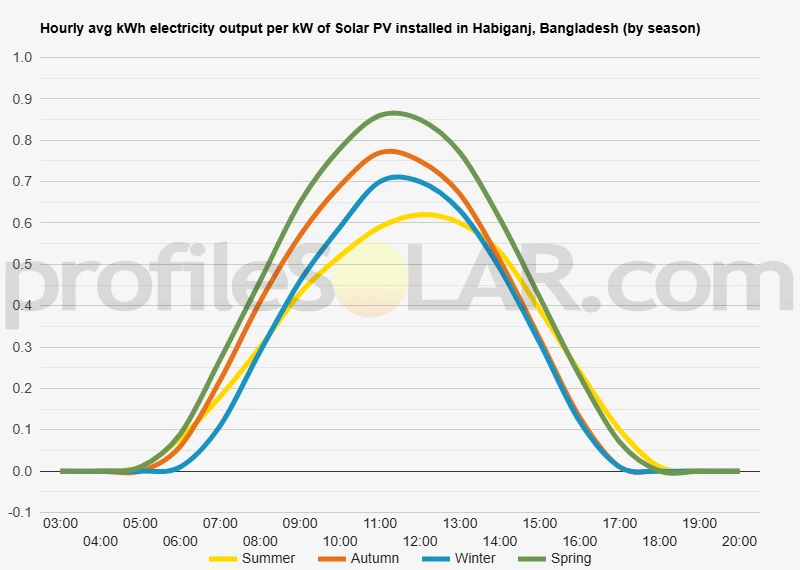

Solar output per kW of installed solar PV by season in Habiganj

Seasonal solar PV output for Latitude: 24.3327, Longitude: 91.4312 (Habiganj, Bangladesh), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° South in Habiganj, Bangladesh

To maximize your solar PV system's energy output in Habiganj, Bangladesh (Lat/Long 24.3327, 91.4312) throughout the year, you should tilt your panels at an angle of 23° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Habiganj, Bangladesh

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Habiganj, Bangladesh. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	30° South in Autumn	40° South in Winter	18° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Habiganj, Bangladesh

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Habiganj, Bangladesh.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Habiganj, Bangladesh

Topographical Features of Habiganj Region

The topography around Habiganj in northeastern Bangladesh is characterized by gently rolling hills and relatively flat plains that form part of the greater Sylhet region. This area sits within the Surma Valley, which creates a landscape of low-lying terrain interspersed with small hillocks and undulating ground. The elevation varies modestly across the region, with most areas sitting between 10 to 50 meters above sea level, though some higher ground can reach up to 100 meters in certain locations.

The terrain features numerous water bodies including rivers, streams, and seasonal wetlands that are typical of this part of Bangladesh. The Khowai River flows through the area, along with several smaller tributaries that create a network of waterways across the landscape. During monsoon seasons, many low-lying areas become temporarily flooded, which is a natural characteristic of the regional hydrology.

The soil composition consists primarily of alluvial deposits brought down from the surrounding hills over thousands of years. This has created fertile plains that support agriculture, but also means the ground can be quite soft and prone to waterlogging in certain areas. The landscape is dotted with small villages, agricultural fields, and patches of natural vegetation.

Optimal Areas for Large-Scale Solar Development

For large-scale solar photovoltaic installations around Habiganj, the most suitable areas would be the elevated plateaus and gently sloping hillsides that offer good drainage and stable ground conditions. These higher elevation zones, particularly those ranging from 30 to 80 meters above sea level, would provide the best foundation for solar infrastructure while minimizing flood risk.

The areas to the north and northeast of Habiganj town center present particularly favorable conditions, where the terrain becomes more undulating and better drained. These locations offer sufficient flat or gently sloping land that could accommodate large solar arrays without the complications of steep gradients or unstable soil conditions.

Agricultural land that is not prone to seasonal flooding would also represent viable options for solar development, especially areas that are currently used for rain-fed crops rather than irrigated rice cultivation. Such locations typically have better soil stability and are less likely to experience the waterlogging issues common in lower-lying agricultural zones.

Areas to avoid would include the immediate floodplains of the Khowai River and other waterways, as well as the lowest-lying agricultural lands that regularly experience seasonal inundation. The marshy areas and permanent wetlands scattered throughout the region would also be unsuitable due to their soft ground conditions and ecological importance.

The key consideration for solar development in this region is identifying locations that combine adequate elevation for flood protection, stable soil conditions for equipment installation, and sufficient contiguous land area to make large-scale development economically viable. The gently rolling nature of much of the terrain around Habiganj provides numerous such opportunities when properly surveyed and assessed.

Bangladesh solar PV Stats as a country

Bangladesh ranks 63rd in the world for cumulative solar PV capacity, with 329 total MW's of solar PV installed. Each year Bangladesh is generating 2 Watts from solar PV per capita (Bangladesh ranks 87th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Bangladesh?

Yes, there are incentives for businesses wanting to install solar energy in Bangladesh. The government of Bangladesh has implemented a number of policies and programs to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has set up a Renewable Energy Fund which provides grants to support research and development activities related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Bangladesh? Please reach out to us and help us keep this information current. Thanks!
