Madhyapara, Chittagong, Bangladesh is located in a tropical region where solar energy generation shows good potential throughout the year, with some seasonal variations that make certain times more productive than others.

Solar Energy Production Potential

The location demonstrates solid solar energy generation capabilities across all seasons. Winter months produce the lowest output at 4.01 kWh per day per kW of installed solar capacity, while summer and autumn maintain moderate production levels at 4.53 kWh and 4.72 kWh respectively. Spring emerges as the most productive season, generating an impressive 5.98 kWh per day per kW of installed capacity. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 22 degrees facing south. This angle maximizes the total annual solar output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several significant factors in Madhyapara could impact solar panel performance and require careful consideration during installation: Monsoon and Heavy Rainfall: Bangladesh experiences intense monsoon seasons with heavy rainfall that can reduce solar irradiance and create flooding risks. The substantial difference between spring production (5.98 kWh) and winter production (4.01 kWh) suggests weather patterns significantly affect solar generation during certain periods. High Humidity and Heat: The tropical climate brings consistently high humidity and temperatures, which can reduce solar panel efficiency and accelerate equipment degradation over time. Dust and Debris Accumulation: Tropical environments often experience dust storms, agricultural debris, and organic matter that can accumulate on panel surfaces, blocking sunlight and reducing energy output.

Preventative Installation Measures

To maximize solar energy production despite these challenges, several protective measures should be implemented:

• Install panels with adequate drainage systems and slightly steeper mounting angles to prevent water accumulation during heavy rains
• Use corrosion-resistant mounting hardware and electrical components designed for high-humidity tropical environments
• Implement regular cleaning schedules and consider self-cleaning panel technologies to combat dust and debris buildup
• Ensure proper ventilation behind panels to reduce heat buildup and maintain efficiency
• Install surge protection and weatherproof electrical enclosures to protect against monsoon-related electrical issues

Despite these environmental challenges, Madhyapara's consistent tropical sunlight and strong spring season performance make it a viable location for solar energy generation when proper installation and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 88 locations across Bangladesh. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Bangladesh by location

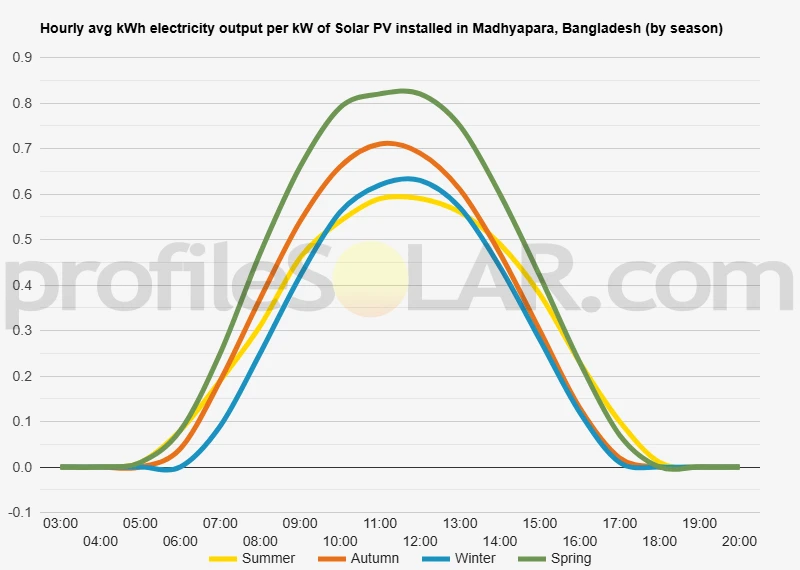

Solar output per kW of installed solar PV by season in Madhyapara

Seasonal solar PV output for Latitude: 23.1088, Longitude: 90.9083 (Madhyapara, Bangladesh), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° South in Madhyapara, Bangladesh

To maximize your solar PV system's energy output in Madhyapara, Bangladesh (Lat/Long 23.1088, 90.9083) throughout the year, you should tilt your panels at an angle of 22° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Madhyapara, Bangladesh

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Madhyapara, Bangladesh. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° South in Summer	29° South in Autumn	38° South in Winter	16° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Madhyapara, Bangladesh

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Madhyapara, Bangladesh.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Madhyapara, Bangladesh

Topography Around Madhyapara

The area surrounding Madhyapara in Bangladesh is characterized by relatively flat, low-lying terrain typical of the greater Bengal delta region. This location sits within the northern central part of the country, where the landscape consists primarily of alluvial plains formed by centuries of river deposits. The elevation remains fairly consistent across the region, with gentle undulations rather than dramatic changes in height.

The topography features a network of seasonal waterways, small rivers, and drainage channels that crisscross the landscape. During monsoon periods, some of these lower-lying areas experience temporary flooding, while the slightly elevated sections remain above water level. The soil composition is predominantly clay and silt, deposited by the extensive river systems that have shaped this region over millennia.

Agricultural land dominates the surrounding area, with rice paddies, crop fields, and small settlements scattered throughout the landscape. The terrain lacks significant hills, ridges, or mountainous features, creating an expansive view across the plains. Small ponds and water bodies dot the countryside, serving both agricultural and domestic purposes for local communities.

Optimal Areas for Large-Scale Solar Development

The flat topography around Madhyapara presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable areas would be the elevated agricultural lands that remain consistently above flood level throughout the year. These slightly higher sections of the plains offer stable ground conditions and reduced risk of water damage to solar infrastructure.

Areas located away from the immediate vicinity of rivers and seasonal waterways would be particularly well-suited for solar development. The consistent, level terrain minimizes the need for extensive ground preparation and reduces installation costs compared to more challenging topographical conditions. The absence of significant hills or ridges also means that shading from natural features would not be a concern across large installations.

Former agricultural land that has been consolidated into larger parcels would be ideal for solar farms, as this eliminates the complexity of dealing with fragmented small plots. The existing rural road network provides reasonable access for construction and maintenance activities, though some infrastructure improvements might be necessary for larger installations.

The relatively stable soil conditions in the elevated areas provide good foundations for solar mounting systems, though proper drainage systems would need to be incorporated into any large-scale design to manage monsoon rainfall effectively. Areas with good connectivity to the electrical grid infrastructure would be particularly attractive for commercial solar development.

Bangladesh solar PV Stats as a country

Bangladesh ranks 63rd in the world for cumulative solar PV capacity, with 329 total MW's of solar PV installed. Each year Bangladesh is generating 2 Watts from solar PV per capita (Bangladesh ranks 87th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Bangladesh?

Yes, there are incentives for businesses wanting to install solar energy in Bangladesh. The government of Bangladesh has implemented a number of policies and programs to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has set up a Renewable Energy Fund which provides grants to support research and development activities related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Bangladesh? Please reach out to us and help us keep this information current. Thanks!
