Magura District in Bangladesh presents a moderately favorable location for year-round solar energy generation. Located in the tropical zone at coordinates 23.3807°N, 89.4573°E, this region benefits from consistent sunlight throughout most of the year, with seasons typically defined by wet and dry periods rather than significant temperature variations.

Solar Energy Production Potential

The solar energy output at Magura District varies notably across seasons. Spring emerges as the most productive period, generating 5.98 kWh per day for each kW of installed solar capacity. Summer and autumn show similar moderate performance at 4.66 kWh/day and 4.72 kWh/day respectively, while winter represents the least productive season at 4.03 kWh/day per kW installed. For optimal year-round energy production, solar panels should be installed at a fixed tilt angle of 22 degrees facing south. This angle maximizes total annual solar output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several significant local factors can impede solar energy production in Magura District and require careful consideration during installation planning. The monsoon season presents the most substantial challenge to solar generation. Bangladesh experiences intense monsoon rains typically from June to October, which can dramatically reduce solar irradiance due to heavy cloud cover and frequent storms. During peak monsoon periods, solar output can drop significantly below seasonal averages. High humidity levels throughout much of the year create additional concerns. Persistent moisture in the air can lead to accelerated corrosion of metal components, reduced efficiency due to moisture buildup on panel surfaces, and potential electrical safety issues if proper sealing isn't maintained. Tropical cyclones pose another serious threat to the region. These powerful storms can generate extremely high winds and heavy rainfall that may damage solar installations if not properly secured and designed to withstand severe weather conditions.

Preventative Installation Measures

Several strategic measures can help maximize solar energy production despite these environmental challenges:

• Install robust mounting systems designed to withstand cyclone-force winds, using reinforced anchoring and aerodynamic panel positioning
• Apply anti-corrosion treatments and use marine-grade materials for all metal components to combat humidity effects
• Implement proper drainage systems around installations to prevent water accumulation during heavy rains
• Use high-quality weatherproof sealing for all electrical connections and junction boxes
• Install panels with self-cleaning surfaces or easy-access designs for regular maintenance during dry periods

Regular maintenance schedules become particularly important in this climate. Panel cleaning should be prioritized during dry seasons to remove accumulated dust and debris, while electrical connections require frequent inspection to ensure moisture hasn't compromised system integrity. Despite these challenges, Magura District's tropical location provides reasonable solar energy potential, particularly during spring months when weather conditions are most favorable for consistent solar generation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 88 locations across Bangladesh. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Bangladesh by location

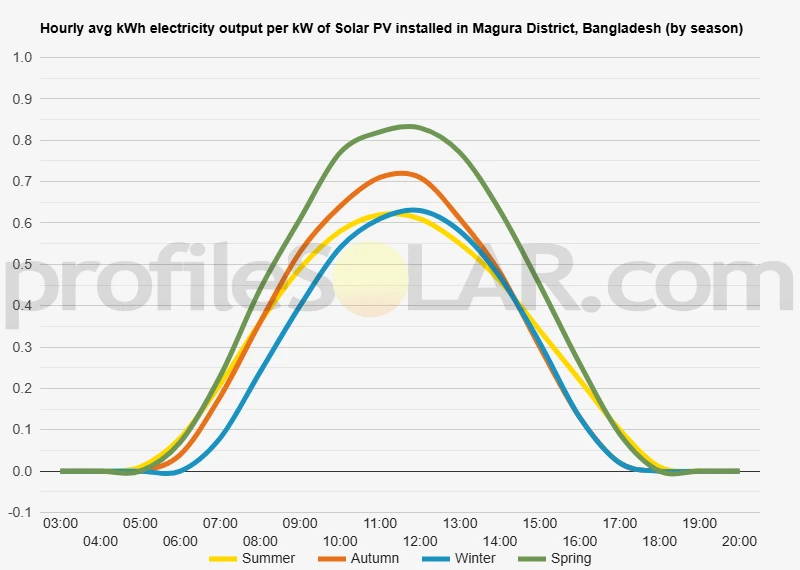

Solar output per kW of installed solar PV by season in Magura District

Seasonal solar PV output for Latitude: 23.3807, Longitude: 89.4573 (Magura District, Bangladesh), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° South in Magura District, Bangladesh

To maximize your solar PV system's energy output in Magura District, Bangladesh (Lat/Long 23.3807, 89.4573) throughout the year, you should tilt your panels at an angle of 22° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Magura District, Bangladesh

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Magura District, Bangladesh. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	29° South in Autumn	39° South in Winter	17° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Magura District, Bangladesh

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Magura District, Bangladesh.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Magura District, Bangladesh

Topographical Features of Magura District

Magura District sits within the vast deltaic plains of southwestern Bangladesh, characterized by remarkably flat terrain that forms part of the greater Ganges-Brahmaputra delta system. The landscape consists primarily of low-lying alluvial plains with minimal elevation changes, creating an expansive area of fertile agricultural land. The region experiences a gentle slope from north to south, though the gradient is so subtle that it appears virtually level to the naked eye. The district is intersected by numerous rivers and waterways, including tributaries of the Padma River system. These waterways create a network of natural drainage channels that snake through the otherwise uniform landscape. During monsoon seasons, many of these areas become temporarily inundated, contributing to the region's agricultural productivity but also creating seasonal variations in land availability.

Land Use Patterns and Agricultural Dominance

The topography has given rise to extensive agricultural development, with rice paddies, jute fields, and various crop cultivation dominating the visual landscape. Villages and settlements are typically situated on slightly elevated areas or along embankments near water bodies, following traditional flood-avoidance patterns that have developed over centuries. The flat nature of the terrain means that most land parcels are easily accessible and relatively uniform in their physical characteristics. Tree coverage is generally sparse except along waterways and around settlements, where fruit trees and bamboo groves provide natural windbreaks and shade.

Optimal Areas for Large-Scale Solar Development

The consistently flat topography throughout Magura District creates favorable conditions for solar photovoltaic installations across most of the region. Areas located on slightly higher ground, particularly those that remain above flood levels during monsoon periods, would be most suitable for permanent solar infrastructure. These elevated zones, while still very low by conventional standards, provide the stability needed for long-term installations. Agricultural land that lies fallow during certain seasons could potentially accommodate solar installations, particularly in areas where dual land use might be feasible. The northern portions of the district, which tend to be marginally higher and experience less frequent flooding, would be particularly well-suited for large-scale solar development. Areas near existing electrical infrastructure and transportation networks would offer additional advantages for solar projects, as the flat terrain makes construction and maintenance activities relatively straightforward. The minimal shading from natural features across most of the district means that solar panels could operate with consistent exposure throughout the day, making nearly any sufficiently elevated location technically viable for solar energy generation.

Bangladesh solar PV Stats as a country

Bangladesh ranks 63rd in the world for cumulative solar PV capacity, with 329 total MW's of solar PV installed. Each year Bangladesh is generating 2 Watts from solar PV per capita (Bangladesh ranks 87th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Bangladesh?

Yes, there are incentives for businesses wanting to install solar energy in Bangladesh. The government of Bangladesh has implemented a number of policies and programs to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has set up a Renewable Energy Fund which provides grants to support research and development activities related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Bangladesh? Please reach out to us and help us keep this information current. Thanks!
