Agudo, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics at coordinates -29.623, -53.2244, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variation in output.

Seasonal Solar Performance

The solar energy production at this location varies considerably throughout the year. Summer delivers the highest output at 7.56 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best performing season with 5.97 kWh per day per kW, while autumn drops to 4.78 kWh per day per kW. Winter presents the most challenging conditions with only 3.39 kWh per day per kW of production. This seasonal pattern means that solar installations at Agudo will generate more than twice as much electricity during peak summer months compared to winter. The best solar generation period extends from late spring through summer and into early autumn.

Optimal Panel Configuration

For maximum year-round solar production at this location, fixed solar panels should be tilted at 25 degrees facing North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel tilts for each day, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Southern Sub Tropics region around Agudo can impact solar energy production:

• Humidity and moisture: The subtropical climate brings high humidity levels that can reduce solar panel efficiency and create more frequent condensation on panel surfaces
• Seasonal rainfall: Extended periods of cloud cover during rainy seasons can significantly reduce solar output, particularly during autumn and winter months
• Temperature effects: High summer temperatures, while providing more sunlight, can reduce panel efficiency as photovoltaic cells perform less effectively in extreme heat
• Dust and debris accumulation: Agricultural activities and seasonal weather patterns can lead to dust buildup on panels, reducing light transmission

Preventative Measures for Enhanced Production

To maximize solar energy production despite these local challenges, several installation strategies should be considered:

• Improved ventilation: Install panels with adequate spacing behind them to allow air circulation, reducing heat buildup and improving efficiency during hot summer months
• Regular cleaning systems: Implement automated cleaning systems or establish regular maintenance schedules to remove dust, debris, and moisture buildup from panel surfaces
• Quality mounting systems: Use corrosion-resistant mounting hardware designed for humid subtropical conditions to ensure long-term structural integrity
• Drainage considerations: Ensure proper water drainage around installations to prevent standing water and potential electrical issues during heavy rainfall periods
• Panel selection: Choose solar panels with better temperature coefficients that maintain higher efficiency in hot weather conditions typical of the region

Despite these challenges, Agudo's location still offers reasonable solar potential, particularly during the warmer months when energy demand for cooling is typically highest.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

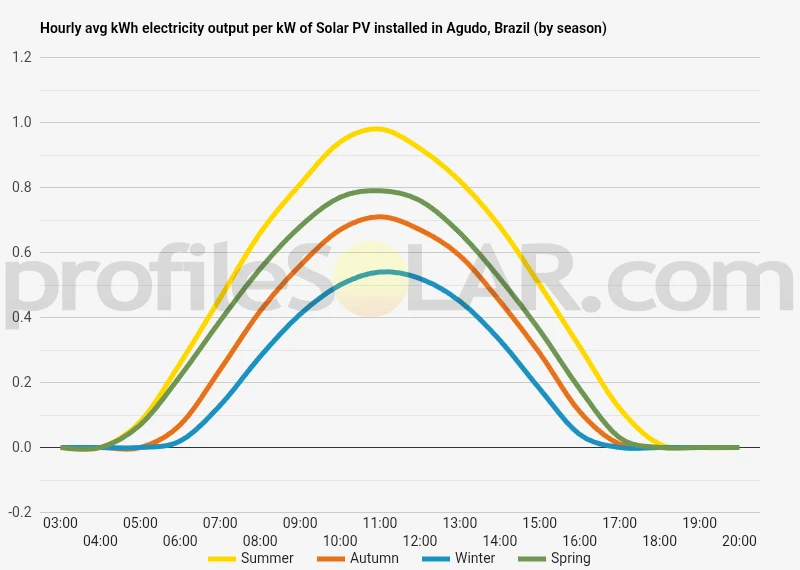

Solar output per kW of installed solar PV by season in Agudo

Seasonal solar PV output for Latitude: -29.623, Longitude: -53.2244 (Agudo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Agudo, Brazil

To maximize your solar PV system's energy output in Agudo, Brazil (Lat/Long -29.623, -53.2244) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Agudo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Agudo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Agudo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Agudo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Agudo, Brazil

Topography and Landscape Features

The region around Agudo in Rio Grande do Sul, Brazil, is characterized by gently rolling hills and relatively modest elevation changes typical of the southern Brazilian highlands. This area sits within the broader context of the Serra Geral formation, though at a more subdued elevation compared to the dramatic escarpments found further east. The landscape consists primarily of undulating terrain with gradual slopes, interspersed with river valleys that have carved shallow depressions through the countryside over millennia.

The local topography is dominated by sedimentary rock formations that create a stable foundation for the region. Small streams and tributaries flow through the area, eventually feeding into larger waterways, creating a network of gentle valleys and low ridges. The elevation changes are generally moderate, with hills rising and falling in smooth transitions rather than sharp peaks or deep gorges. This creates a landscape that is both visually appealing and practically accessible for development.

Agricultural land use has shaped much of the visible landscape, with cleared fields and pastures occupying the flatter areas and gentler slopes. The natural vegetation in undeveloped areas consists of mixed grasslands and scattered woodland, typical of the transition zone between the Atlantic Forest and the Pampas biomes. The climate supports lush vegetation growth during favorable seasons, contributing to the region's agricultural productivity.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Agudo vicinity would be the extensive flat to gently sloping areas that dominate the landscape. These areas offer several key advantages for solar development, including minimal grading requirements, reduced installation costs, and optimal panel positioning for maximum energy capture throughout the day.

The broad, open agricultural fields present excellent opportunities for utility-scale solar farms. These areas typically have minimal tree cover, reducing shading concerns and eliminating the need for extensive land clearing. The gentle slopes found throughout the region can actually benefit solar installations by providing natural drainage and allowing for optimal panel tilt angles without requiring extensive earthwork or specialized mounting systems.

Areas with southern exposure on mild slopes would be particularly advantageous, as they would naturally orient solar panels toward the path of the sun throughout the day. The stable geological foundation provided by the underlying sedimentary rock formations ensures that large-scale mounting systems would have reliable support, reducing long-term maintenance concerns and structural risks.

The existing agricultural infrastructure in the region, including access roads and proximity to electrical transmission lines, makes many of these flat and gently rolling areas even more attractive for solar development. The relatively low population density means that large contiguous parcels of suitable land are likely available without the complications of dense residential or commercial development that might create shading issues or limit expansion possibilities.

Valley floors and the broader flat areas between hill systems would provide the most cost-effective locations for installation and maintenance access. These areas typically offer the most consistent terrain conditions across large areas, which is essential for the standardized installation processes that make utility-scale solar projects economically viable.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
