Solar Energy Generation in Alegrete, Rio Grande do Sul, Brazil

Alegrete, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, presents a variable but generally favorable location for solar PV energy generation throughout the year. The seasonal pattern shows significant fluctuations in potential electricity output that prospective solar installers should consider. The location experiences its peak solar production during summer months, generating an impressive 7.85kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.23kWh/day per kW installed. Production decreases considerably during autumn (4.79kWh/day) and reaches its lowest point in winter with only 3.46kWh/day per kW installed. This seasonal variation creates more than a 2:1 ratio between the best and worst production periods, which is important for planning purposes. Summer and spring combined offer significantly better solar generation potential than autumn and winter.

Optimal Panel Installation

For fixed solar panel installations in Alegrete, Rio Grande do Sul, the ideal tilt angle to maximize year-round production is 26 degrees facing North. This specific angle has been calculated to optimize annual electricity generation based on the location's position in the Southern Hemisphere, taking into account the Earth's elliptical orbit and seasonal solar paths.

Environmental Considerations

Several environmental factors could potentially impact solar production in Alegrete:

• Dust and agricultural particulate matter: The region's agricultural activities may generate dust that can accumulate on panels, reducing efficiency by 5-15% if not regularly cleaned.
• Seasonal flooding: Parts of Alegrete experience periodic flooding which could threaten ground-mounted systems if not properly elevated.
• Occasional hailstorms: While not extremely common, the region does experience hailstorms that could damage panels not rated for impact resistance.

Preventative Measures

To maximize energy production despite these challenges, several preventative measures are recommended:

• Implement regular cleaning schedules, particularly before peak production seasons
• Install panels at least 1 meter above historical flood levels for ground-mounted systems
• Select hail-resistant panels with appropriate certification for the region
• Consider a small overcapacity installation to compensate for the significant winter production drop
• Utilize anti-soiling coatings on panels to reduce dust accumulation and maintenance needs

With proper planning and these preventative measures, Alegrete can be a viable location for solar PV installations, though users should be prepared for the significant seasonal variation in energy production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

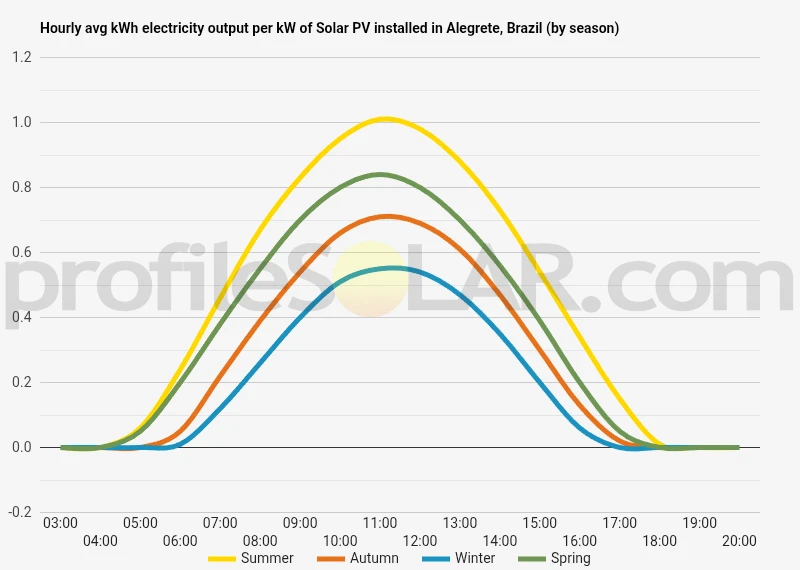

Solar output per kW of installed solar PV by season in Alegrete

Seasonal solar PV output for Latitude: -29.7839, Longitude: -55.7907 (Alegrete, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Alegrete, Brazil

To maximize your solar PV system's energy output in Alegrete, Brazil (Lat/Long -29.7839, -55.7907) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Alegrete, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Alegrete, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Alegrete, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Alegrete, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Alegrete, Brazil

The topography around Alegrete, Brazil presents a distinctive landscape characterized by gently rolling hills and expansive plains typical of the Pampas region in southern Brazil. Located in the western portion of Rio Grande do Sul state, Alegrete sits in an area where the terrain gradually transitions from the more rugged highlands to the north and the flatter grasslands that extend into neighboring Uruguay and Argentina. The region features an undulating landscape with moderate elevation changes, typically ranging between 70 and 150 meters above sea level. The Rio Ibirapuitã flows through the area, creating natural valleys and occasional floodplains that break up the otherwise consistent topography. This river and its tributaries have shaped much of the local landscape over time, carving shallow valleys and creating natural drainage systems.

Topographical Features

The predominant topographical feature around Alegrete is the vast expanse of rolling grasslands that characterize the Pampas biome. These open plains offer minimal obstruction to the sky, with scattered hills providing gentle elevation changes rather than dramatic relief. The soil composition tends to be relatively fertile, supporting extensive cattle ranching and agriculture which dominate land use in the region. To the north and northeast of Alegrete, the terrain becomes slightly more varied, with increased elevation and occasional rocky outcroppings. These areas represent the southern reaches of the Southern Brazilian Plateau, which gradually gives way to the more level Pampas that dominate the immediate vicinity of Alegrete and areas to the south and west.

Optimal Areas for Solar PV Development

Several characteristics make specific areas around Alegrete particularly suitable for large-scale solar photovoltaic installations. The relatively flat plains to the south and southwest of Alegrete offer ideal conditions for solar development. These areas benefit from minimal topographical shading, good drainage characteristics, and extensive open spaces with limited competing land uses beyond cattle grazing. The slightly elevated plateaus located approximately 15-20 kilometers to the west of Alegrete present another promising zone for solar development. These areas combine favorable orientation toward the sun's path with sufficient elevation to minimize morning fog effects that can occasionally develop in the lowest-lying areas along the river valleys. Areas to avoid would include the immediate floodplains of the Rio Ibirapuitã and its tributaries, which, despite their flatness, present flood risks and often harbor more diverse ecosystems that might raise environmental concerns during development. The gently sloping terrain approximately 10-12 kilometers to the south of Alegrete offers particularly favorable conditions, combining good drainage, minimal erosion risk, and excellent exposure to the sun throughout the day. The consistent grade of these areas also simplifies construction requirements for large-scale installations, reducing development costs and environmental impact. Additionally, the sparsely vegetated grasslands that dominate much of the region present fewer clearing requirements compared to more densely forested regions elsewhere in Brazil, further enhancing the area's suitability for solar development from both economic and environmental perspectives.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
