Solar Energy Potential in Alfenas, Minas Gerais, Brazil

Alfenas, Minas Gerais, Brazil, located in the tropical region at latitude -21.392 and longitude -45.9974, offers promising conditions for solar energy generation throughout the year. This location benefits from the typical tropical characteristic of relatively consistent sunlight across seasons, with weather patterns defined more by wet and dry periods rather than dramatic temperature fluctuations. The solar electricity generation potential shows moderate seasonal variation. During summer, solar panels can produce approximately 6.53 kWh per day for each kilowatt of installed capacity, representing the peak production period. Spring follows as the second most productive season with 5.97 kWh/day, while autumn yields about 5.70 kWh/day. Winter shows the lowest output at 5.08 kWh/day per kilowatt installed, though this reduction is not as dramatic as seen in locations farther from the equator. For optimal year-round electricity generation at this Alfenas location, fixed solar panels should be tilted at 20 degrees facing North. This specific angle maximizes annual energy harvest by optimally capturing the sun's rays throughout the year, accounting for the location's position in the Southern Hemisphere.

Seasonal Considerations

The relatively small variance between seasonal production values (approximately 1.45 kWh/day difference between summer and winter) indicates that Alfenas offers reasonably consistent solar generation potential throughout the year. This consistency is advantageous for solar projects as it allows for more reliable energy planning compared to locations with extreme seasonal fluctuations. Summer and spring represent the ideal periods for solar energy generation in Alfenas, Minas Gerais, with higher daily production rates that coincide with the region's typically drier months. While winter shows reduced output, the 5.08 kWh/day figure remains substantial enough to maintain worthwhile energy production even during this less optimal season.

Environmental and Weather Factors

The primary environmental factor that could impact solar production in Alfenas is the region's wet season, typically occurring during summer months (December to March). Heavy rainfall and increased cloud cover during this period can temporarily reduce panel efficiency despite summer having the highest potential output. Ironically, the season with the highest theoretical production may experience the most weather-related interruptions. Dust accumulation represents another consideration in this agricultural region. The combination of dry periods followed by occasional rain can create mud deposits on panels, potentially reducing efficiency by 5-15% if not addressed.

Preventative Measures

To maximize solar energy production in Alfenas, Minas Gerais, several preventative measures are recommended:

• Install panels with adequate drainage systems and slight additional tilt (beyond the optimal 20 degrees) to promote natural cleaning during rainfall events
• Implement a regular cleaning schedule, particularly during the transition between wet and dry seasons when mud deposits are most likely
• Consider microinverter or power optimizer technology to minimize the impact of partial shading from clouds during the wet season
• Use high-efficiency panels with better performance in diffuse light conditions to maintain production during cloudy periods
• Install lightning protection systems, as the region can experience thunderstorms during the wet season

With these considerations addressed, Alfenas represents a favorable location for solar PV installation, offering good year-round production with relatively modest seasonal variation compared to locations at higher latitudes.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

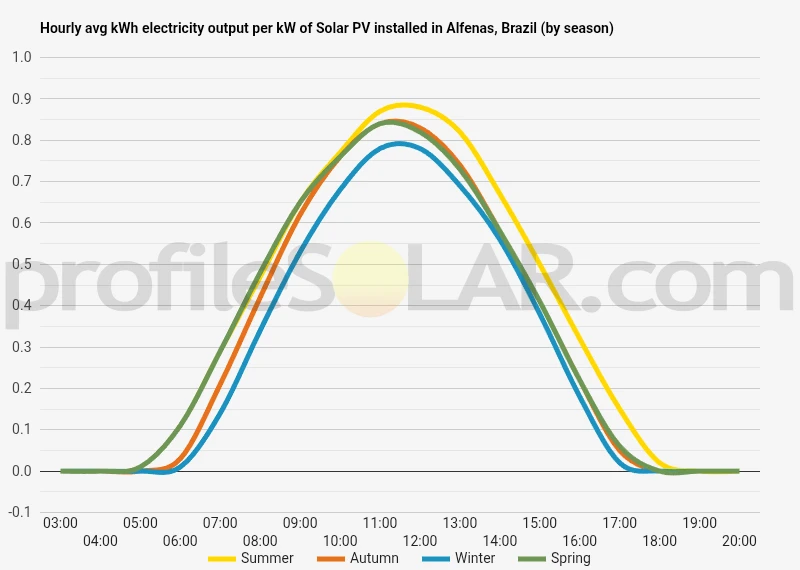

Solar output per kW of installed solar PV by season in Alfenas

Seasonal solar PV output for Latitude: -21.392, Longitude: -45.9974 (Alfenas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Alfenas, Brazil

To maximize your solar PV system's energy output in Alfenas, Brazil (Lat/Long -21.392, -45.9974) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Alfenas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Alfenas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Alfenas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Alfenas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Alfenas, Brazil

The region surrounding Alfenas, Brazil, located in the southern part of the state of Minas Gerais, features a diverse topography characterized by rolling hills, plateaus, and valleys. This landscape is part of the broader Brazilian Highlands, which dominate much of southeastern Brazil. The terrain around Alfenas typically ranges from approximately 700 to 900 meters above sea level, creating a moderately elevated region with significant topographical variation. Alfenas sits within what is known as the "Mar de Morros" or "Sea of Hills" - a distinctive geomorphological feature consisting of rounded hills separated by valleys with watercourses. These hills, formed over millions of years through erosion processes, create a gently undulating landscape rather than sharp, dramatic elevations. The region's topography has been shaped by the weathering of ancient crystalline rocks, primarily composed of granite and gneiss.

Hydrography and Its Influence on Topography

The area's topography is significantly influenced by its hydrography. Alfenas is situated near the Furnas Reservoir, one of Brazil's largest artificial lakes, created by the damming of the Rio Grande. This massive water body has transformed the local landscape and created numerous peninsulas, bays, and islands. The reservoir's presence has not only altered the visual aspect of the region but also affects the local microclimate. Numerous smaller rivers and streams cut through the landscape, creating natural valleys and drainage systems. These waterways have carved their paths through the softer rock formations over time, contributing to the undulating nature of the terrain. The Sapucaí River basin also influences the regional topography, with its tributaries creating natural divisions in the landscape.

Soil and Vegetation Aspects

The soils around Alfenas are predominantly latosols (oxisols), which are deeply weathered, well-drained soils typical of tropical regions. These soils support the natural vegetation of the area, which historically consisted of Atlantic Forest and cerrado (tropical savanna) ecosystems. Today, much of the natural vegetation has been replaced by agricultural land, particularly coffee plantations, which thrive in the region's hilly terrain and climate conditions.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas near Alfenas present favorable conditions based on topographical considerations. The most suitable locations would be: The gently sloping plateaus to the east and northeast of Alfenas offer excellent potential for solar PV development. These areas typically feature more consistent elevations with gradual slopes facing north (which, in the Southern Hemisphere, optimizes solar exposure). The reduced shadowing effect from hills in these plateau regions would maximize solar capture throughout the day. The more elevated areas surrounding the Furnas Reservoir, particularly on its northern shores, present another opportunity. These locations combine favorable topography with proximity to existing electrical infrastructure associated with the hydroelectric dam. The higher elevations also tend to experience less fog and mist than the valleys, ensuring more consistent solar radiation. Agricultural lands to the southwest of Alfenas, where the terrain flattens somewhat compared to other areas, could also be repurposed for solar development. These areas already feature reduced vegetation and established access routes, making development potentially less disruptive to natural ecosystems. It's worth noting that while the rolling topography presents some challenges for very large installations, it also offers advantages. The varied terrain allows for strategic placement of solar arrays on north-facing slopes, which can increase efficiency compared to completely flat terrain at this latitude. Additionally, the moderate elevation of the region means clearer air and potentially less atmospheric interference with solar radiation. The presence of the Furnas Reservoir nearby also creates possibilities for hybrid energy systems that could combine solar power with the existing hydroelectric infrastructure, though careful environmental assessment would be necessary given the ecological importance of the reservoir region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
