Alto do Rodrigues, Brazil presents an excellent location for year-round solar PV energy generation. Located in the tropics at coordinates -5.3476, -36.7958, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Output Performance

The solar energy output data shows strong and consistent performance across all seasons. Spring emerges as the most productive season, generating 7.52kWh per day per kW of installed solar capacity. Summer follows closely with 6.69kWh/day, while autumn produces 6.37kWh/day. Even winter, the least productive season, still delivers a robust 6.06kWh/day per kW installed. This seasonal variation of only 1.46kWh between the highest and lowest producing seasons demonstrates the location's reliability for solar energy generation. The consistently high output levels throughout the year make Alto do Rodrigues an ideal location for solar PV installations.

Optimal Installation Configuration

For maximum year-round solar production at this location, fixed solar panels should be tilted at 5 degrees North. This optimal angle is calculated by analyzing daily solar elevation angles at the specific latitude, determining daily optimal panel tilt angles, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production at Alto do Rodrigues, though the strong output numbers suggest these are manageable:

• Tropical rainfall and humidity: The wet season brings heavy rainfall and high humidity levels that can reduce solar panel efficiency and create water spotting on panels
• Dust and particulate matter: Dry seasons may lead to dust accumulation on solar panels, reducing light transmission and energy output
• High temperatures: Consistent tropical heat can reduce photovoltaic cell efficiency, as solar panels typically perform better in cooler conditions

Preventative Measures for Optimal Performance

Several installation strategies can help maximize energy production despite these environmental challenges:

• Regular cleaning systems: Install automated cleaning systems or establish regular manual cleaning schedules to remove dust, dirt, and water spots from panel surfaces
• Proper ventilation design: Ensure adequate airflow around and beneath panels to help dissipate heat and maintain optimal operating temperatures
• Quality mounting systems: Use corrosion-resistant mounting hardware designed for tropical climates to withstand high humidity and rainfall
• Drainage considerations: Design installations with proper water drainage to prevent standing water during heavy rainfall periods

Despite these potential challenges, the consistently high energy output levels throughout all seasons indicate that Alto do Rodrigues remains an exceptionally favorable location for solar PV installations when proper preventative measures are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

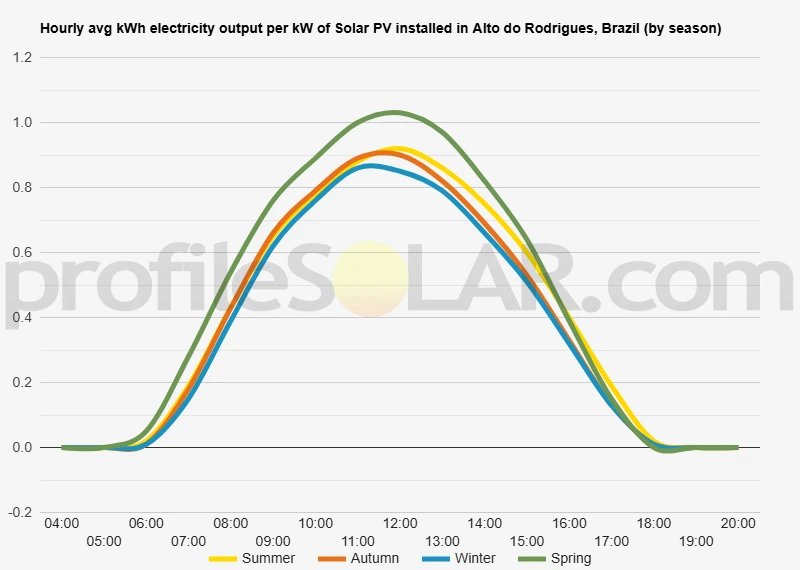

Solar output per kW of installed solar PV by season in Alto Do Rodrigues

Seasonal solar PV output for Latitude: -5.3476, Longitude: -36.7958 (Alto Do Rodrigues, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° North in Alto Do Rodrigues, Brazil

To maximize your solar PV system's energy output in Alto Do Rodrigues, Brazil (Lat/Long -5.3476, -36.7958) throughout the year, you should tilt your panels at an angle of 5° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Alto Do Rodrigues, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Alto Do Rodrigues, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	11° North in Autumn	21° North in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Alto Do Rodrigues, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Alto Do Rodrigues, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Alto Do Rodrigues, Brazil

Topographical Features of Alto do Rodrigues Region

Alto do Rodrigues sits within the northeastern Brazilian state of Rio Grande do Norte, positioned in a landscape characterized by relatively gentle terrain typical of the Caatinga biome. The region features predominantly flat to gently rolling plains with elevations that rarely exceed 200 meters above sea level. This topography creates an expansive, open landscape with minimal natural obstructions that could cast shadows or interfere with solar installations.

The area experiences a semi-arid climate with sparse vegetation consisting mainly of drought-resistant shrubs and small trees. The natural vegetation is relatively low-growing, which means that land clearing for solar installations would typically require minimal effort. The soil composition includes sandy and clay-based soils that drain well, reducing concerns about waterlogging during the brief rainy seasons.

Nearby river valleys, including tributaries of the Açu River system, create subtle depressions in the landscape but maintain the generally flat character of the region. These water features are often seasonal, flowing primarily during the wet season and leaving dry beds during extended dry periods.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie on the elevated plateaus and mesa-like formations that extend northwest and southwest of Alto do Rodrigues. These areas offer consistent elevation with minimal slope variation, providing stable foundations for large solar arrays while maintaining excellent exposure to direct sunlight throughout the day.

The open plains extending eastward toward the coast present another excellent opportunity for solar development. These areas benefit from consistent wind patterns that help cool solar panels naturally, potentially improving their efficiency. The relatively uniform topography across these plains allows for standardized installation techniques and reduces construction complexity.

Areas with gentle southern-facing slopes, particularly those found in the undulating terrain west of the municipality, offer natural advantages for solar panel positioning. These locations combine favorable angles for solar collection with the practical benefits of natural drainage and reduced maintenance requirements.

The region's distance from major urban centers means that large tracts of suitable land remain available for development without competing with residential or commercial uses. The existing road network, while basic, provides adequate access for construction and maintenance activities. Power transmission infrastructure connecting to the national grid already exists in the area, supporting the integration of new solar installations into the broader electrical system.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
