Alvorada, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, presents a variable environment for solar energy production throughout the year. This location experiences significant seasonal fluctuations in potential solar electricity generation that are worth considering for anyone planning a solar installation.

Seasonal Solar Production

Solar panels in Alvorada can generate varying amounts of electricity depending on the season. During summer months, production reaches its peak at 7.25kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.79kWh/day, while autumn yields 4.61kWh/day. Winter shows the lowest production at 3.23kWh/day per kilowatt installed.

This seasonal pattern means Alvorada's solar potential more than doubles in summer compared to winter, making the warmer months from December through February particularly advantageous for solar energy generation.

Optimal Panel Installation

For fixed solar panel installations in Alvorada, Rio Grande do Sul, the ideal tilt angle to maximize year-round production is 26 degrees facing North. This specific angle has been calculated to capture the optimal amount of solar radiation throughout the year, accounting for the Earth's elliptical orbit and Alvorada's specific latitude.

Environmental and Weather Considerations

Several factors may affect solar production in this region:

• Seasonal rainfall patterns, particularly during the subtropical summer, can temporarily reduce solar output due to cloud cover
• Dust accumulation from the region's agricultural activities may gradually decrease panel efficiency
• High humidity levels may contribute to condensation on panels, especially during early morning hours
• Occasional hail storms, though rare, pose a physical risk to panel integrity

To mitigate these challenges, solar installations in Alvorada should incorporate regular cleaning schedules to remove dust buildup, especially before and after the dry season. Using hail-resistant panels with tempered glass is advisable for long-term durability. Additionally, installing panels with adequate drainage angles helps prevent water accumulation, while anti-reflective coatings can improve performance during the less sunny winter months.

Overall, while not perfect year-round, Alvorada offers good conditions for solar energy generation with proper installation considerations, particularly capitalizing on the excellent summer and spring production potential.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

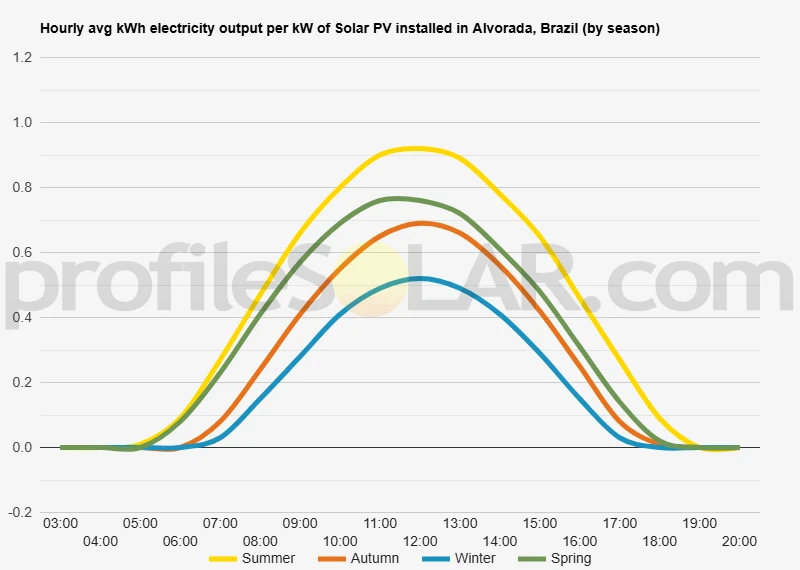

Solar output per kW of installed solar PV by season in Alvorada

Seasonal solar PV output for Latitude: -29.9854, Longitude: -51.0364 (Alvorada, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Alvorada, Brazil

To maximize your solar PV system's energy output in Alvorada, Brazil (Lat/Long -29.9854, -51.0364) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Alvorada, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Alvorada, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Alvorada, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Alvorada, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Alvorada, Brazil

The topography around Alvorada, Brazil, located in the metropolitan region of Porto Alegre in Rio Grande do Sul state, is characterized by relatively flat terrain with gentle undulations typical of the coastal lowlands of southern Brazil. The area sits at approximately 40 meters above sea level and is part of the broader geomorphological region known as the Rio Grande do Sul Coastal Plain.

Landscape Features

Alvorada's landscape is primarily defined by its position within the eastern portion of the Rio Grande do Sul state, near the western shores of the Guaíba Lake. The terrain gradually slopes from east to west, with the eastern portions being slightly more elevated. The region features a mix of open fields, scattered vegetation, and urbanized areas, with the natural landscape having been significantly modified by human settlement and agricultural activities. The soil composition in this region consists predominantly of sandy and clayey sediments, reflective of its geological history as part of a broader coastal formation. Numerous small streams and drainage channels cross the area, flowing generally westward toward the Guaíba Lake basin, which eventually connects to the Lagoa dos Patos and the Atlantic Ocean.

Suitable Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas in proximity to Alvorada present favorable conditions. The most suitable locations would be found in the eastern and northeastern outskirts of the metropolitan region, where: The terrain is flatter and more open, providing excellent exposure to the sun throughout the day. These areas typically have fewer tall structures or natural features that might cast shadows on solar arrays. Agricultural lands that are less productive or fallow fields represent prime opportunities for solar development. These areas often already have access to roads and may be near existing power infrastructure, reducing development costs. The slightly elevated areas to the east of Alvorada offer particularly good potential, as they typically experience less fog than locations closer to the Guaíba Lake. This higher ground tends to have clearer atmospheric conditions, enhancing solar irradiance reception.

Topographical Considerations

When evaluating specific sites for solar PV installations near Alvorada, several topographical factors merit consideration. The gentle slopes facing north are especially advantageous in the Southern Hemisphere, as they naturally orient toward the sun's path. Areas with minimal vegetation cover or those that can be easily cleared without significant environmental impact represent lower-cost development opportunities. The region's drainage patterns should also be considered, avoiding low-lying areas prone to seasonal flooding or water accumulation. The stable, sedimentary geology of the region generally provides good foundation conditions for solar infrastructure, though site-specific soil studies would be necessary for detailed planning. The relatively modest elevation changes throughout the region mean that most areas won't face significant challenges related to steep slopes or difficult construction conditions, making large portions of the rural and peri-urban landscape around Alvorada technically suitable for solar PV development from a purely topographical perspective.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
