Amaral Ferrador, Rio Grande do Sul, Brazil, located in the Southern Sub-Tropics, presents a moderately favorable location for year-round solar PV energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Energy Production Patterns

The solar energy output at this location shows substantial seasonal fluctuation. Summer delivers the strongest performance at 7.34 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring follows as the second-best season with 5.86 kWh per day per kW, providing solid energy production during this transitional period. Autumn sees a notable decline to 4.64 kWh per day per kW, while winter represents the most challenging period with only 3.21 kWh per day per kW of installed solar capacity. This winter reduction to less than half of summer output is typical for locations in the Southern Sub-Tropics due to the sun's lower position in the sky and shorter daylight periods.

Optimal Installation Configuration

For fixed panel installations at Amaral Ferrador, Rio Grande do Sul, the ideal tilt angle to maximize total year-round solar production is 27 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles according to daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Local Environmental and Weather Factors

Several environmental and weather factors in this Southern Sub-Tropical location could potentially impact solar energy production:

• High humidity and moisture: The subtropical climate typically brings elevated humidity levels, which can reduce solar panel efficiency and promote the accumulation of moisture-related debris on panel surfaces
• Seasonal rainfall patterns: The region likely experiences distinct wet and dry seasons, with heavy rainfall potentially reducing solar irradiance and creating cleaning challenges
• Temperature fluctuations: Significant seasonal temperature variations can affect panel efficiency, as solar panels typically perform better in cooler conditions
• Atmospheric haze and humidity: High moisture content in the air can scatter sunlight and reduce the intensity reaching solar panels

Preventative Measures for Optimal Performance

To maximize energy production despite these environmental challenges, several installation strategies should be considered: Proper panel spacing and mounting systems should allow adequate air circulation to prevent overheating and moisture buildup. Installing panels with sufficient clearance from the roof surface helps maintain cooler operating temperatures and reduces humidity-related issues. Regular cleaning schedules become particularly important in this humid environment. Installing accessible mounting systems that facilitate safe cleaning will help maintain optimal panel performance throughout the year. Consider automated cleaning systems for larger installations. Choosing high-quality panels with robust anti-reflective coatings and corrosion-resistant frames will better withstand the humid subtropical conditions. Ensure all electrical components are properly sealed and rated for high-humidity environments. Implementing proper drainage around ground-mounted systems prevents water accumulation that could create humidity pockets or promote vegetation growth that might shade panels. For roof-mounted systems, ensure adequate ventilation to prevent moisture buildup beneath the array. Overall, while Amaral Ferrador experiences notable seasonal variation in solar production, the location remains viable for solar PV installations when proper environmental considerations are incorporated into the system design and maintenance planning.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

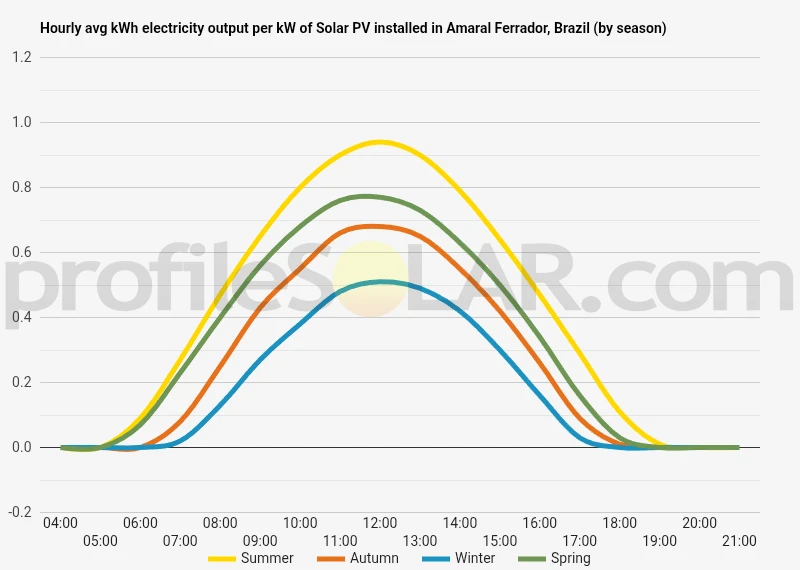

Solar output per kW of installed solar PV by season in Amaral Ferrador

Seasonal solar PV output for Latitude: -30.8069, Longitude: -52.3027 (Amaral Ferrador, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° North in Amaral Ferrador, Brazil

To maximize your solar PV system's energy output in Amaral Ferrador, Brazil (Lat/Long -30.8069, -52.3027) throughout the year, you should tilt your panels at an angle of 27° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Amaral Ferrador, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Amaral Ferrador, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
15° North in Summer	36° North in Autumn	46° North in Winter	23° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Amaral Ferrador, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Amaral Ferrador, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Amaral Ferrador, Brazil

Topography and Terrain Around Amaral Ferrador

The region surrounding Amaral Ferrador in Rio Grande do Sul, Brazil, is characterized by gently rolling hills and relatively modest elevation changes typical of the southern Brazilian landscape. This area sits within the broader Pampas biome, where the terrain consists primarily of undulating grasslands interspersed with small valleys and low ridges. The elevation in this region generally ranges from approximately 100 to 300 meters above sea level, creating a landscape that is neither completely flat nor dramatically mountainous. The topography features a series of gentle slopes and rounded hilltops, with occasional steeper inclines near water courses and drainage areas. Small streams and tributaries have carved shallow valleys through the landscape over time, creating natural drainage patterns that flow generally eastward toward the Atlantic coastal plain. The soil composition consists largely of sedimentary deposits, with areas of exposed rock formations appearing sporadically throughout the region.

Vegetation and Land Use Patterns

The natural vegetation in this area consists predominantly of native grasslands, though much of the landscape has been modified for agricultural purposes. Cattle ranching and crop cultivation are common land uses, with fields of soybeans, corn, and other crops occupying significant portions of the terrain. Small patches of gallery forest follow the watercourses, while scattered groves of trees dot the landscape, particularly on steeper slopes and areas less suitable for agriculture. The region experiences a relatively open landscape with minimal dense forest coverage, which contributes to excellent sky exposure across much of the area. This characteristic, combined with the gentle topography, creates favorable conditions for solar energy development.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be found on the broader, gently sloping hilltops and elevated plateaus throughout the region. These areas offer several advantages, including minimal shading from surrounding terrain, good drainage to prevent water accumulation around equipment, and relatively stable ground conditions for mounting systems. South-facing slopes with gradual inclines would be particularly well-suited for solar development, as they can be oriented to maximize solar exposure throughout the day. The rolling hills provide natural wind circulation that helps keep solar panels cool, potentially improving their efficiency and longevity. Areas currently used for extensive cattle grazing would present excellent opportunities for solar development, as the land use change would be relatively straightforward compared to areas with intensive agriculture or natural vegetation. The existing rural infrastructure, including roads and power transmission lines serving agricultural operations, could potentially be leveraged to support solar installations. The relatively stable geological conditions and absence of extreme topographical features such as steep cliffs, deep ravines, or flood-prone lowlands make most of the elevated areas around Amaral Ferrador technically feasible for solar development. The key consideration would be selecting sites with sufficient contiguous area to achieve economies of scale while maintaining appropriate setbacks from residential areas and environmentally sensitive zones along watercourses.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
