Andorinha, Bahia, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -10.2222, -39.8639, this area benefits from consistent sunlight throughout most of the year, with seasons typically defined by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output data for Andorinha shows strong performance across all seasons. Spring delivers the highest production at 6.48 kWh per day per kW of installed capacity, closely followed by summer at 6.29 kWh per day. Even during the lowest production period in winter, the location still generates a respectable 4.94 kWh per day per kW, while autumn produces 5.92 kWh per day. This seasonal variation demonstrates that Andorinha maintains good solar generation potential year-round, with the best performance occurring during spring and summer months. The relatively modest drop in winter production compared to peak seasons indicates the location's tropical advantage of maintaining adequate sun exposure throughout the year.

Optimal Panel Configuration

For maximum year-round solar production at this location, fixed solar panels should be tilted at 9 degrees toward the north. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental factors in Andorinha could potentially impact solar energy production and require consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the wet season potentially creating challenges for solar installations. Heavy rainfall and high humidity levels can reduce panel efficiency and create maintenance issues. Frequent cloud cover during rainy periods may temporarily reduce energy output, though the annual data suggests this impact is manageable given the overall strong production figures. High temperatures common in tropical regions can actually decrease solar panel efficiency, as photovoltaic cells perform better in cooler conditions despite needing bright sunlight. The combination of intense sun and heat may stress equipment more than in temperate climates.

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Ensure adequate ventilation around panels to promote air circulation and cooling, reducing heat-related efficiency losses
• Use high-quality mounting systems with proper drainage to handle heavy rainfall and prevent water accumulation
• Select panels and equipment rated for high humidity and temperature conditions typical of tropical climates
• Install panels with easy access for regular cleaning to remove dust, debris, and any organic matter that may accumulate
• Consider slightly elevated mounting to improve airflow underneath panels for better cooling

Regular maintenance becomes particularly important in tropical locations like Andorinha. Establishing a cleaning schedule to remove accumulated dust, pollen, or other debris will help maintain optimal energy production. Additionally, periodic inspection of electrical connections and mounting hardware can prevent humidity-related corrosion or degradation. Despite these considerations, Andorinha's consistently strong solar output across all seasons makes it a highly suitable location for solar energy generation, with proper installation techniques easily addressing the environmental challenges present in this tropical setting.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

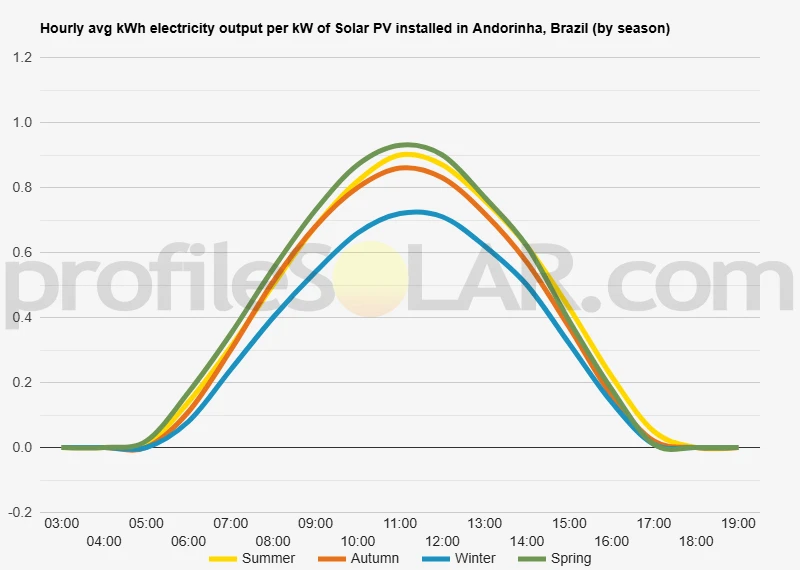

Solar output per kW of installed solar PV by season in Andorinha

Seasonal solar PV output for Latitude: -10.2222, Longitude: -39.8639 (Andorinha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° North in Andorinha, Brazil

To maximize your solar PV system's energy output in Andorinha, Brazil (Lat/Long -10.2222, -39.8639) throughout the year, you should tilt your panels at an angle of 9° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Andorinha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Andorinha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	16° North in Autumn	26° North in Winter	4° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Andorinha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Andorinha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Andorinha, Brazil

Topographical Features of the Andorinha Region

Andorinha is located in the state of Bahia in northeastern Brazil, positioned within the Caatinga biome that characterizes much of the region's interior. The topography around this area is predominantly characterized by gently rolling hills and elevated plateaus, with the landscape gradually transitioning from the coastal lowlands toward the interior highlands of the Brazilian Northeast.

The terrain exhibits a semi-arid character typical of the Caatinga region, with elevations generally ranging from 200 to 600 meters above sea level. The landscape features undulating plains interspersed with low mountain ranges and isolated hills called "inselbergs" - rocky outcrops that rise abruptly from the surrounding terrain. These geological formations create a varied topographical profile that includes both flat expanses and moderately steep slopes.

The region experiences distinct wet and dry seasons, which have shaped the local topography through erosion patterns. During the dry season, the landscape takes on a distinctive appearance as vegetation becomes sparse and the underlying geological structure becomes more apparent. The soil composition varies from sandy to rocky, with areas of exposed bedrock common on higher elevations and steeper slopes.

Water Features and Drainage Patterns

The drainage pattern around Andorinha is characterized by seasonal streams and intermittent watercourses that flow during the rainy season but often dry up completely during extended dry periods. These watercourses have carved shallow valleys and depressions throughout the landscape, creating a network of temporary drainage channels that influence the local topography.

Small reservoirs and artificial lakes have been constructed throughout the region to capture and store water during the rainy season. These water bodies are typically situated in natural depressions or valleys where the topography naturally channels water flow, creating localized areas of different elevation and land use patterns.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations around Andorinha would be the extensive flat to gently sloping plateaus that dominate much of the surrounding landscape. These elevated areas offer several advantages for solar development, including minimal grading requirements, excellent drainage characteristics, and reduced risk of flooding during the rainy season.

The broad, open plains located to the north and east of Andorinha present particularly favorable conditions for solar installations. These areas feature relatively uniform topography with gentle slopes that rarely exceed 5 degrees, making them ideal for standard solar mounting systems without requiring extensive site preparation or specialized tracking equipment designed for steep terrain.

Areas with sandy or well-drained soils on stable geological formations would be preferable to rocky outcrops or areas with heavy clay soils that might present foundation challenges. The slightly elevated plateaus also offer natural advantages in terms of air circulation, which can help maintain optimal operating temperatures for solar panels while providing clear sight lines that minimize shading from surrounding terrain features.

Locations that avoid the immediate vicinity of seasonal drainage channels and temporary water bodies would be most suitable, as these areas could experience periodic flooding or erosion that might compromise solar infrastructure. The drier, more stable upland areas provide the most reliable foundation conditions for long-term solar installations while maintaining accessibility for construction and maintenance activities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
