Solar Energy Potential in Andradas, Minas Gerais, Brazil

Andradas, Minas Gerais, Brazil, located in the tropical region at coordinates -22.0661, -46.5725, offers promising conditions for solar energy generation throughout the year. This location benefits from the tropical climate where sunlight remains relatively consistent, though the area experiences seasonal variations defined more by wet and dry periods rather than temperature extremes. The solar energy production potential shows notable seasonal patterns. During summer months, Andradas achieves its peak performance with an impressive 6.60 kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season, generating 6.08 kWh daily per kilowatt installed. Autumn production decreases slightly to 5.49 kWh/day, while winter represents the annual low point with 4.83 kWh/day per kilowatt of installed capacity. For those considering solar installation in Andradas, Minas Gerais, it's worth noting that for fixed panel systems, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This specific angle has been calculated by analyzing solar elevation patterns at this latitude, weighted by daily photovoltaic potential to optimize annual electricity generation.

Seasonal Considerations

The summer-spring period (roughly November through April) represents the prime solar harvesting window in Andradas, Minas Gerais, when daily production consistently exceeds 6 kWh per kilowatt installed. This coincides with the region's wet season, which despite bringing more cloud cover and precipitation, still delivers strong solar radiation levels due to the high sun position and longer daylight periods. Winter months (June through August) show the lowest production figures but remain reasonably productive at 4.83 kWh/day. This approximately 27% reduction from summer values is less dramatic than what would be experienced in non-tropical regions, highlighting the benefit of Andradas' tropical location for year-round solar viability.

Environmental and Weather Factors

Several environmental factors warrant consideration for solar installations in Andradas. The region experiences a distinct rainy season that can temporarily reduce solar efficiency through cloud cover and direct rainfall. To mitigate this impact, installations should include proper drainage systems and panels with anti-reflective coatings that perform better in diffuse light conditions during cloudy days. Dust accumulation presents another challenge in this agricultural region. Regular cleaning schedules or self-cleaning panel technologies can help maintain optimal performance, particularly during the dry season when dust build-up accelerates. High humidity levels in this tropical location may accelerate weathering of system components if not properly protected. Installations should utilize corrosion-resistant materials and quality waterproof junction boxes to ensure longevity of the system in these conditions. Despite these considerations, Andradas' consistent solar radiation throughout the year makes it a highly suitable location for solar energy investment, with relatively minor seasonal fluctuations compared to locations further from the equator.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

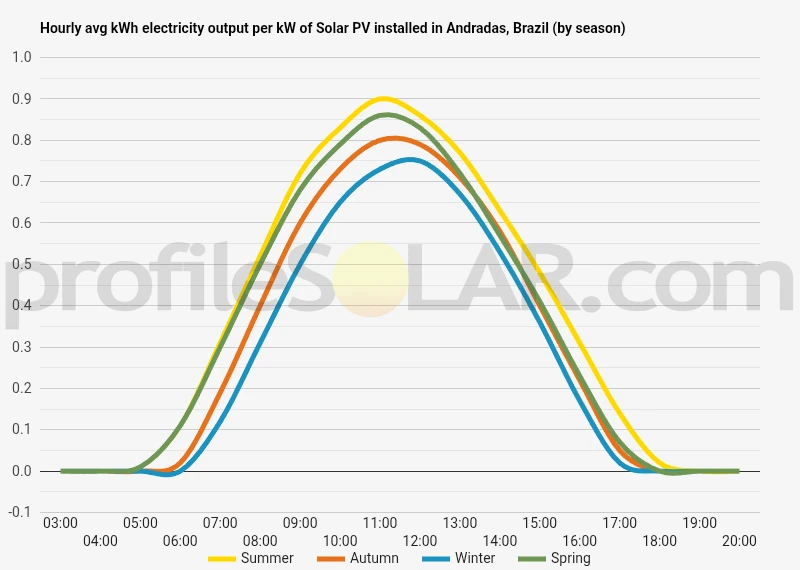

Solar output per kW of installed solar PV by season in Andradas

Seasonal solar PV output for Latitude: -22.0661, Longitude: -46.5725 (Andradas, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Andradas, Brazil

To maximize your solar PV system's energy output in Andradas, Brazil (Lat/Long -22.0661, -46.5725) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Andradas, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Andradas, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Andradas, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Andradas, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Andradas, Brazil

Andradas, located in the state of Minas Gerais in Brazil, sits within a topographically diverse region characterized by rolling hills, valleys, and mountainous terrain. The city is positioned at approximately 920 meters above sea level on the southeastern edge of the Mantiqueira Mountain Range, part of the larger Serra do Mar coastal mountains that run along Brazil's Atlantic coast. The landscape around Andradas features significant elevation changes, with hills rising gradually from the central urban area toward more pronounced mountains in the surrounding countryside. The terrain is marked by undulating slopes rather than sharp, dramatic peaks, creating a gently rolling landscape that has been shaped over millennia by erosion processes. Several small rivers and streams cut through the area, creating natural valleys and drainage patterns that further define the local topography.

Surrounding Topographical Features

To the north and northeast of Andradas, the terrain becomes somewhat less rugged, transitioning toward the more moderate hills that characterize much of southern Minas Gerais. These areas maintain elevation but with gentler slopes compared to the southern and western regions. The southern and southwestern boundaries of the Andradas municipality feature more pronounced mountainous terrain, with some elevations exceeding 1,300 meters. These higher elevations form part of the natural border between the states of Minas Gerais and São Paulo. The region experiences a humid subtropical climate with distinct wet and dry seasons, which has influenced the erosion patterns visible in the landscape today. Natural vegetation consists primarily of Atlantic Forest remnants and secondary growth, though much of the original forest cover has been converted to agricultural use, coffee plantations, and pastureland.

Optimal Areas for Solar PV Development

The northern and northeastern sectors surrounding Andradas present the most favorable conditions for large-scale solar photovoltaic installations. These areas offer several advantages: The gentler slopes reduce construction challenges and minimize the need for extensive grading work, which can significantly impact project economics. The moderate terrain in these directions allows for larger continuous installations without the fragmentation that steep topography would necessitate. Additionally, these northern areas typically have fewer complications from morning fog that can sometimes collect in the lower valleys to the south. The slightly lower elevation areas with good southern exposure receive consistent solar radiation throughout the year, maximizing potential energy generation. The northwestern quadrant, extending toward the municipality of Caldas, contains several plateaus and wide ridgelines that would be particularly suitable for solar development. These natural features provide relatively flat areas at higher elevations, reducing concerns about shadowing from adjacent terrain features. Areas to avoid would include the steeper southern mountain slopes where installation would be technically challenging and environmentally disruptive. Similarly, the narrow valley bottoms, particularly along waterways, would be suboptimal due to potential shadowing from surrounding hills during significant portions of the day. The ideal solar PV locations would balance accessibility (proximity to existing transmission infrastructure and roads) with topographical advantages, favoring gently sloping terrain with southern or southeastern exposure, minimal vegetation clearing requirements, and reduced visual impact on the scenic landscape that characterizes this region of Minas Gerais.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
