Angatuba, São Paulo, Brazil presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should consider carefully.

Seasonal Energy Production Performance

The solar energy output at this location shows significant seasonal fluctuation. Summer delivers the strongest performance at 6.70 kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best period with 5.86 kWh per day per kW, while autumn drops to 5.18 kWh per day per kW. Winter represents the challenging period, producing only 4.38 kWh per day per kW of installed solar capacity. This seasonal pattern means that summer and spring are the ideal times for maximum solar energy production, while winter performance drops to roughly 65% of summer levels. The annual variation of over 2 kWh per day per kW between peak and low seasons is quite substantial and should factor into energy planning decisions.

Optimal Panel Installation

For fixed panel installations at Angatuba, São Paulo, the ideal tilt angle to maximize total year-round solar production is 21 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these angles according to actual solar irradiance data while accounting for Earth's elliptical orbit patterns.

Environmental and Weather Challenges

Several local factors could potentially impede solar production at this location and require consideration during installation:

• Heavy rainfall during wet seasons can reduce solar irradiance and create debris accumulation on panels
• High humidity levels typical of tropical regions may lead to increased soiling and potential corrosion issues
• Dust and particulate matter during dry periods can significantly reduce panel efficiency
• Tropical storms and strong winds pose structural risks to solar installations

Preventative Measures for Enhanced Production

To maximize energy production despite these challenges, several installation strategies prove beneficial:

• Install panels with adequate drainage systems and slight tilting to prevent water pooling
• Use anti-corrosive mounting materials and protective coatings suitable for high-humidity environments
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation peaks
• Design robust mounting systems engineered for tropical wind loads and weather extremes
• Consider automated cleaning systems for larger installations to maintain optimal panel performance

Regular maintenance becomes particularly crucial at this location to ensure panels operate at peak efficiency throughout the varying seasonal conditions that characterize this tropical region.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

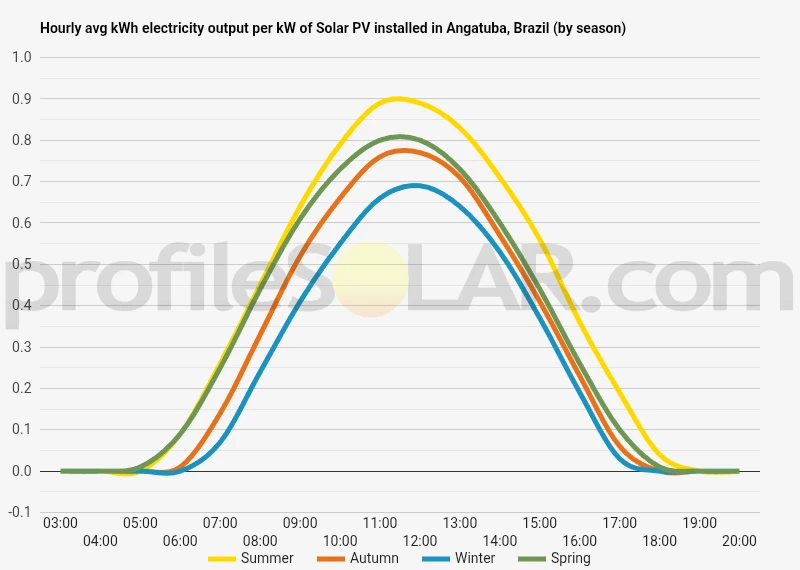

Solar output per kW of installed solar PV by season in Angatuba

Seasonal solar PV output for Latitude: -23.4708, Longitude: -48.424 (Angatuba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Angatuba, Brazil

To maximize your solar PV system's energy output in Angatuba, Brazil (Lat/Long -23.4708, -48.424) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Angatuba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Angatuba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	39° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Angatuba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Angatuba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Angatuba, Brazil

Topography Around Angatuba

Angatuba is situated in the interior of São Paulo state, Brazil, within a region characterized by gently rolling hills and relatively moderate elevation changes. The surrounding landscape features the typical topography of the Brazilian Plateau, with elevations ranging from approximately 600 to 800 meters above sea level. The terrain consists primarily of undulating plains interspersed with low hills and shallow valleys, creating a landscape that is neither completely flat nor dramatically mountainous.

The area exhibits the geological characteristics of the Paraná Basin, with sedimentary rock formations underlying much of the region. This has resulted in relatively stable soils and gentle slope gradients that rarely exceed 15-20 degrees. The topography has been shaped by centuries of erosion, creating broad, sweeping valleys separated by low ridges and hills. Water drainage follows natural contours, with small streams and seasonal watercourses meandering through the lower-lying areas.

The landscape around Angatuba is predominantly rural, with extensive areas currently used for agriculture, particularly sugarcane cultivation and cattle ranching. The natural vegetation has been largely modified by human activity, though remnants of cerrado savanna and Atlantic Forest can still be found in some areas. The terrain's moderate relief means that most areas are accessible by conventional vehicles and agricultural machinery.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Angatuba would be the elevated plateau areas and gentle south-facing slopes that dominate the regional landscape. These areas offer several advantages including minimal shading from topographical features, good air circulation for cooling panels, and relatively stable ground conditions for mounting systems.

The broad, gently sloping hillsides that characterize much of the region provide excellent opportunities for solar development. These areas typically have gradients of less than 10 degrees, which allows for efficient panel placement while still providing adequate drainage. The elevated positions also tend to have fewer issues with fog and morning mist compared to valley bottoms, ensuring clearer atmospheric conditions throughout the day.

Areas to the north and east of Angatuba's urban center appear particularly promising, where the landscape opens up into extensive gently rolling plains. These locations benefit from minimal obstruction from hills or vegetation, while still maintaining good access to existing road networks and electrical infrastructure. The stable geological conditions in these areas also reduce concerns about ground movement or settling that could affect large solar installations.

Valley floors and lower-lying areas would be less suitable for solar development due to potential issues with seasonal flooding, higher humidity levels, and possible morning fog accumulation. Additionally, the steeper hillsides, while uncommon in the region, would present challenges for installation and maintenance access. The most practical locations remain the moderate elevations with gentle slopes that allow for optimal panel orientation while maintaining reasonable construction and operational costs.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
