Solar Energy Potential in Angra dos Reis, Brazil

Angra dos Reis, Brazil, located at latitude -23.0286 and longitude -44.3341, offers generally favorable conditions for solar PV energy generation throughout the year. This coastal location in the tropics benefits from consistent sunlight patterns that make it suitable for solar energy production, though with some seasonal variations. The solar energy production potential shows moderate seasonal fluctuations. During summer months, solar panels can generate approximately 6.67kWh per day for each kilowatt of installed capacity, representing the peak production period. This drops to 5.25kWh/day during autumn and decreases further to 4.11kWh/day in winter, which marks the lowest production season. Spring brings a recovery in generation potential with 5.16kWh/day. For maximizing year-round solar energy production in Angra dos Reis, fixed solar panels should be installed at a tilt angle of 21 degrees facing North. This specific angle has been calculated to optimize annual energy capture based on the location's position relative to the sun's path throughout the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar production in Angra dos Reis:

• High humidity and coastal fog can reduce solar irradiance, particularly during early morning hours
• The region's tropical climate includes a pronounced rainy season, which can significantly reduce solar output during wet periods
• The mountainous terrain surrounding Angra dos Reis may create localized shading issues depending on specific installation sites
• Salt spray from the nearby ocean can accelerate corrosion of solar equipment

To mitigate these challenges, solar installations in Angra dos Reis should incorporate several preventative measures. Marine-grade components with enhanced corrosion resistance should be selected for all hardware. Regular cleaning schedules are essential to remove salt deposits and other debris that can accumulate on panel surfaces. Additionally, micro-inverters or power optimizers can help minimize the impact of partial shading from mountains or clouds. The installation should also include proper drainage systems to handle heavy tropical rainfall, and lightning protection is advisable given the frequency of thunderstorms in this tropical region. Despite these challenges, with proper system design and maintenance, Angra dos Reis remains a viable location for solar energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

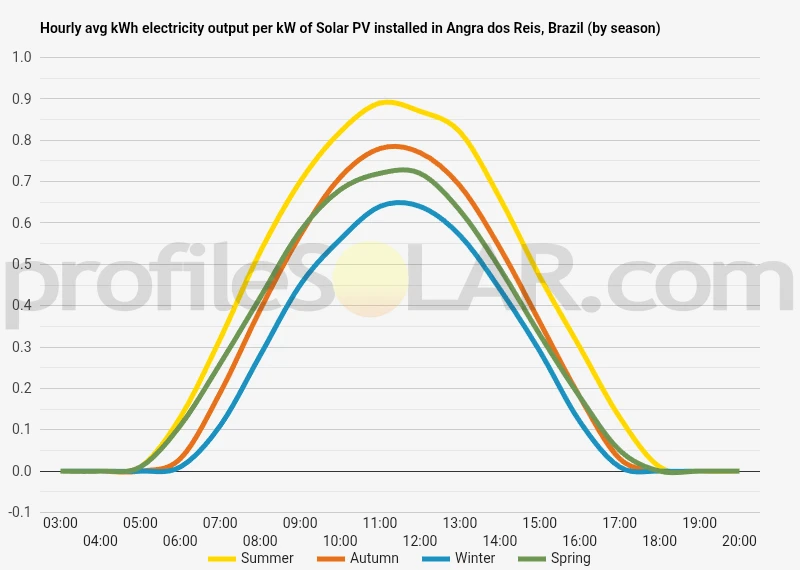

Solar output per kW of installed solar PV by season in Angra Dos Reis

Seasonal solar PV output for Latitude: -23.0286, Longitude: -44.3341 (Angra Dos Reis, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Angra Dos Reis, Brazil

To maximize your solar PV system's energy output in Angra Dos Reis, Brazil (Lat/Long -23.0286, -44.3341) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Angra Dos Reis, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Angra Dos Reis, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Angra Dos Reis, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Angra Dos Reis, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Angra Dos Reis, Brazil

Angra dos Reis sits nestled along Brazil's Costa Verde (Green Coast), a region characterized by dramatic topographical features that create a stunning landscape where mountains meet the sea. The area showcases a rugged terrain dominated by the Serra do Mar mountain range, which runs parallel to the Atlantic Ocean coastline. These mountains rise steeply from the sea, creating numerous bays, coves, and approximately 365 islands scattered throughout the region. The topography of Angra dos Reis presents a complex interplay of steep slopes, dense Atlantic Forest vegetation, and coastal plains. The mountains surrounding the city reach elevations of over 1,000 meters in some places, with slopes often exceeding 30 degrees. This mountainous backdrop creates a natural amphitheater effect, with the urban areas concentrated primarily along the narrow coastal strips where the terrain flattens out before meeting the ocean.

Topographical Challenges for Solar Development

The predominant topographical features around Angra dos Reis create significant challenges for large-scale solar photovoltaic (PV) installations. The steep mountain slopes that characterize much of the region limit the availability of flat, open spaces typically ideal for solar farms. Additionally, the dense forest cover that blankets much of the Serra do Mar mountains restricts potential development areas without substantial land clearing, which would raise environmental concerns given the ecological importance of the Atlantic Forest biome. The coastal areas, while more level, are mostly occupied by urban development, tourism infrastructure, and the region's nuclear power plants. The numerous islands that dot the bay, though picturesque, generally lack sufficient flat terrain for large-scale solar installations.

Potential Areas for Solar PV Development

Despite these challenges, certain areas near Angra dos Reis could potentially accommodate solar PV installations. The most suitable locations would be found inland, moving away from the immediate coastal zone toward the broader valleys between mountain ridges. Specifically, areas along the BR-101 highway corridor where some land has already been cleared for agriculture or other development might offer more favorable topography. The municipality of Paraty, located approximately 45 kilometers to the southwest of Angra dos Reis, contains some inland valleys with gentler slopes that could potentially support solar infrastructure. Similarly, moving northeast toward Mangaratiba and eventually the outskirts of Rio de Janeiro state, the terrain occasionally opens up to provide more suitable conditions. Elevated plateaus found at various points in the Serra do Mar, where the topography flattens before rising again, could also offer potential sites for solar development. These areas would benefit from reduced shadowing effects that plague developments in deep valleys.

Balancing Development with Environmental Considerations

Any solar development in the region would need to carefully balance energy production goals with the preservation of the Atlantic Forest ecosystem. The unique topography that makes this region so visually striking also creates a complex set of constraints for renewable energy development. Smaller, distributed solar installations on existing buildings and developed areas might ultimately prove more practical than large-scale solar farms given the topographical limitations. The most promising approach might involve identifying brownfield sites or previously disturbed lands where the environmental impact of development would be minimized. Areas formerly used for industrial purposes or degraded pastureland could provide the relatively flat terrain needed for solar installations without requiring further forest clearance. The topographical characteristics of Angra dos Reis, while challenging for traditional large-scale solar development, ultimately reflect the region's natural beauty and ecological significance. Any renewable energy development would need to work within these constraints while respecting the unique landscape that defines this portion of Brazil's coast.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
