Araguaiana, Mato Grosso, Brazil represents an excellent location for year-round solar energy generation. Located in the tropical region of central Brazil, this area benefits from consistent sunlight throughout the year, with seasonal variations primarily driven by wet and dry periods rather than significant changes in daylight hours.

Solar Energy Production Potential

The solar energy output data for Araguaiana demonstrates remarkably consistent performance across all seasons. Summer produces 5.81 kWh per day per kW of installed solar capacity, while autumn shows a slight improvement to 5.85 kWh per day. Winter performance increases further to 6.13 kWh per day, with spring delivering the highest output at 6.26 kWh per day per kW installed. This seasonal pattern is typical for locations in the Southern Hemisphere tropics, where winter and spring months often provide clearer skies and optimal solar conditions. The relatively small variation between seasons - only about 8% difference between the lowest and highest performing seasons - makes this location highly reliable for consistent solar energy production throughout the year. For fixed panel installations at this location, the ideal tilt angle to maximize total year-round production is 15 degrees facing North. This relatively shallow angle is appropriate for the tropical latitude and helps optimize solar collection across all seasons.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production in Araguaiana and require consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the wet season typically featuring increased cloud cover, frequent afternoon thunderstorms, and higher humidity levels. These conditions can temporarily reduce solar output and create challenges for equipment maintenance. Dust accumulation presents another significant concern, particularly during the dry season when fine particles from agricultural activities and natural sources can settle on solar panels, reducing their efficiency. The region's agricultural landscape means that seasonal farming activities may contribute to airborne dust and debris. High humidity levels throughout much of the year can accelerate corrosion of metal components and electrical connections if not properly protected. Additionally, the intense tropical sun, while beneficial for energy production, can cause thermal stress on equipment and accelerate degradation of certain materials.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production in this tropical environment:

• Install panels with adequate spacing and ventilation to prevent overheating and allow air circulation
• Use corrosion-resistant mounting systems and electrical components rated for high-humidity environments
• Implement regular cleaning schedules, particularly during dust-heavy periods
• Choose panels with anti-reflective coatings that resist dust accumulation
• Install proper drainage systems to handle heavy rainfall and prevent water pooling

Regular maintenance becomes particularly important in this climate. Establishing a cleaning routine during dry seasons and conducting thorough inspections after severe weather events will help maintain optimal performance. Using monitoring systems can also help identify performance issues quickly, allowing for prompt maintenance responses. Despite these considerations, Araguaiana's consistent high solar output throughout the year makes it an highly suitable location for solar energy projects, with proper installation and maintenance practices ensuring reliable long-term performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

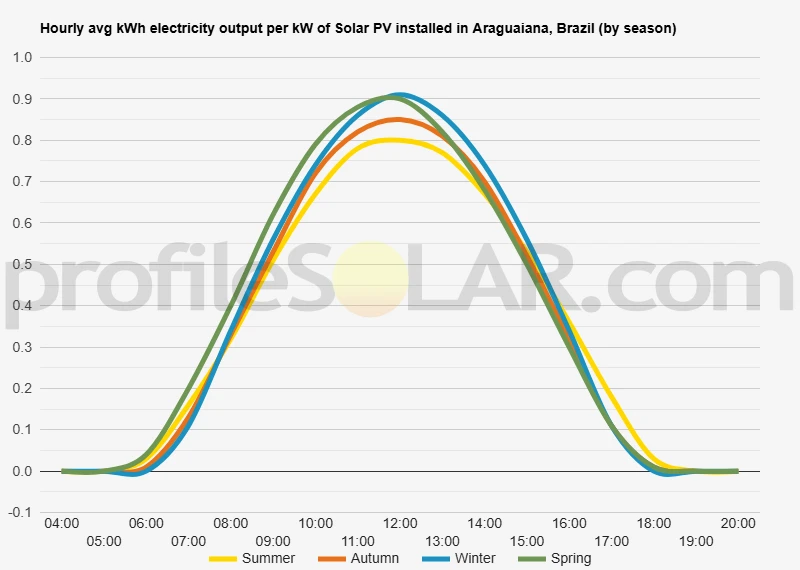

Solar output per kW of installed solar PV by season in Araguaiana

Seasonal solar PV output for Latitude: -14.9946, Longitude: -51.8005 (Araguaiana, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 15° North in Araguaiana, Brazil

To maximize your solar PV system's energy output in Araguaiana, Brazil (Lat/Long -14.9946, -51.8005) throughout the year, you should tilt your panels at an angle of 15° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Araguaiana, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Araguaiana, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 15° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	21° North in Autumn	31° North in Winter	9° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Araguaiana, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Araguaiana, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Araguaiana, Brazil

Topographical Features of the Araguaiana Region

The area around Araguaiana in Mato Grosso, Brazil, sits within the vast Central Brazilian Plateau, characterized by relatively flat to gently rolling terrain that forms part of the Brazilian Highlands. This region represents a transitional zone between the Amazon Basin to the north and the Pantanal wetlands to the southwest, creating a landscape dominated by extensive plains punctuated by low hills and mesas.

The topography consists primarily of elevated tablelands known as chapadas, which rise between 300 to 800 meters above sea level. These flat-topped formations are remnants of ancient geological processes and provide stable, well-drained surfaces across much of the landscape. Between these elevated areas lie broad valleys and gentle slopes that drain toward the Araguaia River system, which flows northward through the region.

The terrain exhibits minimal variation in elevation across large distances, with gradual undulations rather than steep gradients. This characteristic makes the region particularly suitable for large-scale development projects, as the relatively uniform topography reduces construction complexity and infrastructure costs. The underlying geology consists mainly of sedimentary rocks and crystalline formations that provide stable foundations.

Climate and Vegetation Patterns

The landscape around Araguaiana falls within the Cerrado biome, Brazil's tropical savanna ecoregion. This environment features a distinct wet and dry seasonal pattern that has shaped both the natural vegetation and land use patterns. The native Cerrado vegetation includes scattered trees, shrublands, and grasslands adapted to the region's climate conditions.

Much of the original vegetation has been converted to agricultural use, particularly cattle ranching and soybean cultivation. These land use changes have created vast open areas with minimal tree cover, further enhancing the region's potential for solar energy development. The cleared agricultural lands provide extensive flat spaces with few obstructions to solar radiation.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Araguaiana would be the elevated chapada formations and converted agricultural lands. These areas offer several key advantages including stable, level ground that minimizes earthwork requirements and reduces installation costs. The elevated plateaus provide excellent drainage, reducing concerns about flooding during the wet season.

Former cattle ranching areas present particularly attractive opportunities, as they typically feature minimal vegetation, established access roads, and proximity to existing infrastructure. These cleared lands often span thousands of hectares in continuous blocks, allowing for the development of utility-scale solar farms with significant generating capacity.

Areas with gentle south-facing slopes would be especially well-suited for solar installations, as they can be optimally oriented to maximize energy capture throughout the day. The stable geological conditions across most of the region provide reliable foundations for mounting systems and support structures.

The proximity to existing agricultural infrastructure, including roads and power transmission lines, makes many locations around Araguaiana practical for solar development. The relatively sparse population density in rural areas also reduces potential land use conflicts while providing ample space for large-scale installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
