Arantina, Minas Gerais, Brazil presents a good location for year-round solar energy generation, with its tropical climate providing consistent sunlight throughout most of the year. The location shows solid solar production potential across all seasons, though with some notable seasonal variation.

Seasonal Solar Performance

The solar energy output at this location varies significantly between seasons. Summer delivers the highest production at 6.38 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows as the second-best season with 5.81 kWh per day per kW, while autumn produces 5.53 kWh per day per kW. Winter represents the lowest production period at 4.93 kWh per day per kW of installed capacity. This seasonal drop of about 23% from summer peak is typical for locations in the Southern Hemisphere tropics, where winter months experience reduced solar intensity.

Optimal Installation Configuration

For maximum year-round energy production at Arantina, Minas Gerais, solar panels should be installed at a fixed tilt angle of 21 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this tropical location:

• Wet season rainfall: Heavy tropical rains can reduce solar output during cloudy periods and leave water spots or debris on panels
• High humidity: Can cause moisture buildup and potential corrosion of electrical components over time
• Dust and debris: Dry periods may lead to dust accumulation on panel surfaces, reducing efficiency
• Vegetation growth: The tropical climate promotes rapid plant growth that could create shading issues

Preventative Installation Measures

To maximize energy production despite these challenges, several preventative measures should be implemented. Installing panels with adequate drainage and using corrosion-resistant mounting hardware will help combat moisture issues. Regular cleaning schedules become particularly important in tropical locations to remove dust, debris, and organic matter. Careful site selection and ongoing vegetation management around the installation area will prevent shading problems. Using high-quality inverters and electrical components rated for tropical conditions will ensure long-term reliability in the humid environment. Overall, Arantina offers favorable conditions for solar energy generation year-round, with the main considerations being proper installation techniques and maintenance practices suited to the tropical climate.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

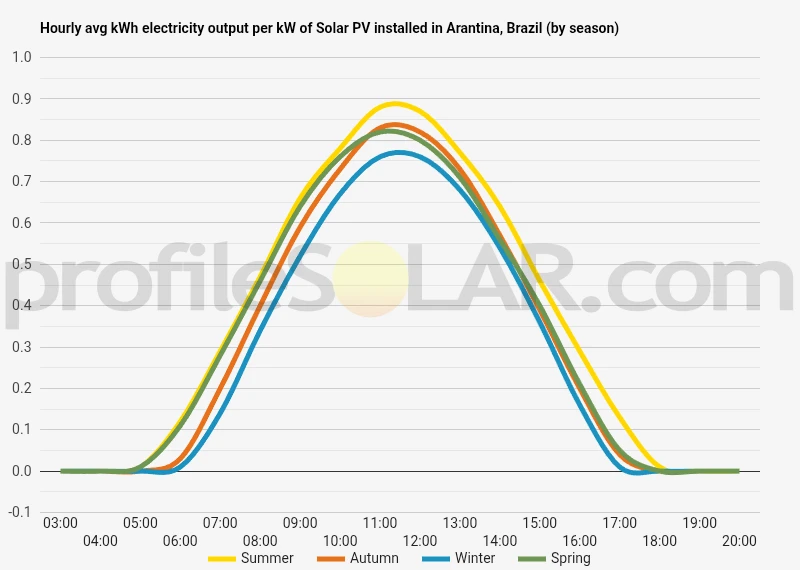

Solar output per kW of installed solar PV by season in Arantina

Seasonal solar PV output for Latitude: -21.8946, Longitude: -44.2298 (Arantina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Arantina, Brazil

To maximize your solar PV system's energy output in Arantina, Brazil (Lat/Long -21.8946, -44.2298) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Arantina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Arantina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Arantina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Arantina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Arantina, Brazil

Topographical Features Around Arantina

Arantina sits within the southeastern region of Minas Gerais state in Brazil, positioned in an area characterized by rolling hills and moderate elevation changes typical of the Brazilian Highlands. The terrain around this municipality features a mix of gentle slopes and undulating landscapes, with elevations generally ranging from approximately 800 to 1,200 meters above sea level. The region forms part of the larger Serra da Mantiqueira mountain system, though Arantina itself occupies a relatively moderate position within this mountainous zone.

The local topography includes numerous small valleys and ridgelines that create a varied landscape of natural drainage patterns. These geographical features result from the underlying geological structure of the Brazilian Shield, which has been shaped by millions of years of weathering and erosion. The terrain tends to be more stable and less prone to extreme slopes compared to areas closer to the main mountain peaks, making it generally suitable for development and infrastructure projects.

Water features in the area include several small streams and tributaries that flow through the valleys, contributing to the natural drainage system. The soil composition varies across the region, with areas of both fertile agricultural land and more rocky, mineral-rich zones that reflect the geological diversity of the broader Mantiqueira range.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Arantina would be the relatively flat or gently sloping plateaus and ridge tops that offer minimal shading from surrounding terrain features. These elevated areas typically provide the best exposure to direct sunlight throughout the day while avoiding the shadows cast by hills and valleys during morning and evening periods.

South-facing slopes with gradual inclines present excellent opportunities for solar development, as they can be oriented to maximize solar exposure while remaining accessible for construction and maintenance activities. The moderate elevation of these areas also helps with natural cooling, which can improve the efficiency of solar panels by preventing excessive heat buildup.

Areas with minimal vegetation or those currently used for extensive agriculture would be particularly well-suited for solar farms, as they require less environmental clearing and may face fewer regulatory challenges. The relatively stable geological conditions in the flatter sections around Arantina provide good foundation conditions for mounting systems and electrical infrastructure.

The proximity to existing electrical transmission infrastructure should also be considered when selecting sites. Areas closer to the main population centers and existing power lines would offer cost advantages for grid connection. The moderate terrain in these locations typically allows for easier access roads and reduces the complexity of installing heavy equipment during construction phases.

Valley floors should generally be avoided for large-scale installations due to potential shading from surrounding hills, higher moisture levels, and possible flooding risks during heavy rainfall periods. Similarly, the steepest slopes and most heavily forested areas would present significant challenges for both installation and long-term maintenance of solar arrays.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
