Solar Potential in Arcos, Minas Gerais, Brazil

Arcos, Minas Gerais, Brazil, located at latitude -20.2457 and longitude -45.566, offers a promising location for solar energy generation throughout the year. Situated in the tropics, this location benefits from relatively consistent sunlight patterns compared to regions at higher latitudes, making it potentially valuable for solar photovoltaic (PV) installations. The seasonal energy output shows a moderate variation throughout the year. During summer months, solar panels can generate approximately 6.49 kWh per day for each kilowatt of installed capacity. This production decreases slightly to 5.86 kWh/day during autumn and reaches its lowest point in winter at 5.29 kWh/day. Spring sees a recovery to 6.10 kWh/day as daylight increases again. What makes this location particularly attractive is the relatively small difference between the highest and lowest seasonal outputs—only about 1.2 kWh/day separates the peak summer production from the winter minimum. This consistency allows for more reliable year-round energy planning compared to locations with extreme seasonal variations.

Optimal Panel Installation

For fixed solar panel installations in Arcos, Minas Gerais, the ideal tilt angle to maximize year-round energy production is 19 degrees facing North. This specific angle has been calculated taking into account the location's latitude, the sun's position throughout the year, and the weighted potential solar generation at different times. The northern orientation is crucial since Arcos is in the Southern Hemisphere, where the sun appears in the northern portion of the sky. This optimal angle allows panels to capture the maximum possible sunlight across all seasons, though seasonal adjustments could further optimize production if adjustable mounts are used.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Arcos:

• Seasonal rainfall patterns may reduce solar efficiency during the wet season due to cloud cover and direct rain on panels
• Dust and pollen accumulation, particularly during dry seasons, can gradually reduce panel efficiency if not addressed
• Potential for occasional hailstorms in this region could pose a physical risk to panel integrity

To mitigate these challenges, several preventative measures are recommended. Installing panels with self-cleaning technologies or implementing regular cleaning schedules can address dust accumulation. Using hail-resistant panels with tempered glass can provide protection against extreme weather events. Additionally, incorporating a slight additional tilt beyond the optimal 19 degrees can help with natural cleaning during rainfall. A monitoring system that tracks real-time performance can also help identify when environmental factors are reducing efficiency, allowing for prompt intervention. These measures, combined with the region's favorable solar conditions, can help ensure that solar installations in Arcos achieve their maximum potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

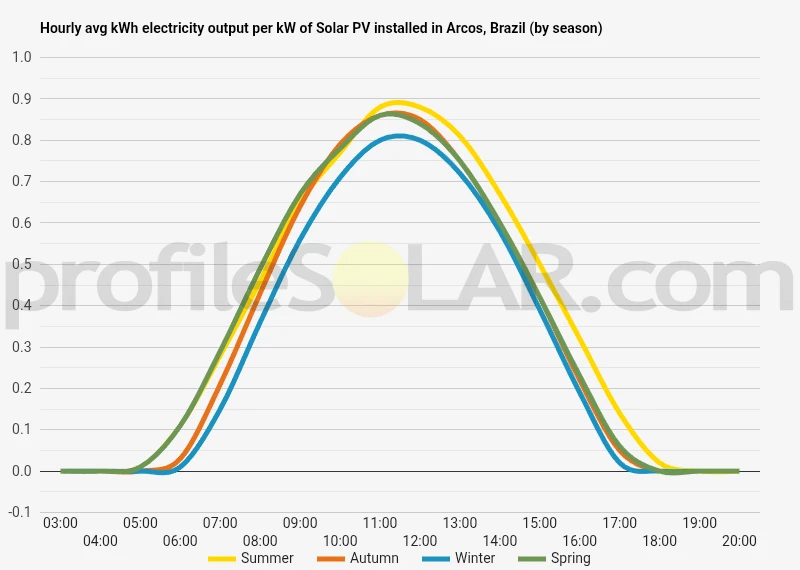

Solar output per kW of installed solar PV by season in Arcos

Seasonal solar PV output for Latitude: -20.2457, Longitude: -45.566 (Arcos, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Arcos, Brazil

To maximize your solar PV system's energy output in Arcos, Brazil (Lat/Long -20.2457, -45.566) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Arcos, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Arcos, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Arcos, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Arcos, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Arcos, Brazil

Topography of Arcos, Brazil

Arcos is situated in the state of Minas Gerais in southeastern Brazil, characterized by a diverse and undulating topography. The region features rolling hills, plateaus, and valleys typical of Brazil's interior highlands. The terrain around Arcos is part of the broader Brazilian Highlands, with elevations generally ranging between 700 and 900 meters above sea level. The landscape is marked by distinctive karst formations, as the area sits atop significant limestone deposits. This geological feature has created a terrain with occasional caves, sinkholes, and exposed rock formations. The São Francisco River basin influences the broader regional topography, with various smaller waterways and tributaries carving through the landscape. Vegetation in the region transitions between the Cerrado (tropical savanna) and Atlantic Forest biomes, with grasslands interspersed with woodland areas. This mixed vegetation pattern reflects the transitional nature of the local climate and topography. The natural contours of the land have historically influenced settlement patterns and agricultural development in the region.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development near Arcos, several topographical factors merit consideration. The most suitable areas would be the gently sloping plateaus and elevated flatlands that receive consistent solar exposure throughout the year. These areas benefit from reduced shadowing effects that might otherwise occur in more rugged terrain. The northwestern and western approaches to Arcos offer particularly promising conditions for solar installations. These areas feature more open terrain with fewer forested regions, providing clearer access to sunlight. The slightly elevated positions of these plateaus also benefit from reduced morning fog and mist that can sometimes accumulate in lower-lying areas. Areas to avoid would include the steeper hillsides with eastern or western aspects, which receive uneven solar radiation throughout the day. Similarly, the densely vegetated valleys and areas near water bodies would require significant clearing and present potential environmental concerns. The limestone-rich soils in some areas might offer good stability for ground-mounted systems, though careful geotechnical assessment would be necessary to avoid karst-related ground stability issues. The moderately elevated terrain throughout the region generally experiences less cloud cover than coastal areas of Brazil, making the general vicinity favorable for solar energy capture. Local infrastructure considerations are also important, with proximity to existing transmission lines and transportation networks making certain areas more economically viable for development. The relatively accessible terrain in much of the region simplifies construction logistics compared to more mountainous regions elsewhere in Minas Gerais.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
