Areal, Rio de Janeiro, Brazil presents a reasonably good location for year-round solar energy generation, though it experiences notable seasonal variation in solar output. Located in the tropics where sunlight remains fairly consistent throughout the year, this area sees seasons characterized more by wet and dry periods rather than the dramatic temperature changes found in other regions.

Seasonal Solar Performance

The solar energy production at Areal varies significantly across the seasons. Summer delivers the strongest performance at 6.36kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 4.98kWh per day per kW, while autumn produces 5.19kWh per day per kW. Winter shows the lowest output at 4.23kWh per day per kW of installed capacity. For optimal year-round energy production from a fixed panel installation at this location, solar panels should be tilted at 20 degrees facing north. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the Earth's elliptical orbit around the sun.

Environmental Challenges and Solutions

Several local factors in Areal could potentially impact solar energy production. The tropical climate brings distinct wet and dry seasons, with the rainy season likely contributing to reduced solar output during certain months due to increased cloud cover and atmospheric moisture. High humidity levels common in tropical regions can lead to moisture buildup on solar panels, reducing their efficiency. Additionally, the warm, humid environment creates ideal conditions for biological growth such as algae, moss, or lichen on panel surfaces, which can significantly decrease energy production over time. Dust and debris accumulation may also pose challenges, particularly during drier periods when particles can settle on panels and create a film that blocks sunlight.

Preventative Installation Measures

To maximize solar energy production despite these challenges, several preventative measures should be implemented during installation:

• Install panels with adequate spacing and ventilation to promote air circulation and reduce moisture buildup
• Use high-quality mounting systems with proper drainage to prevent water pooling around equipment
• Apply anti-reflective coatings that also have self-cleaning properties to help shed water and reduce debris adhesion
• Establish regular cleaning and maintenance schedules, particularly important during and after the rainy season
• Consider slightly steeper panel angles than the optimal 20 degrees if cleaning access is limited, as this can help with natural water runoff

Regular monitoring of system performance will help identify when cleaning or maintenance is needed to maintain optimal energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

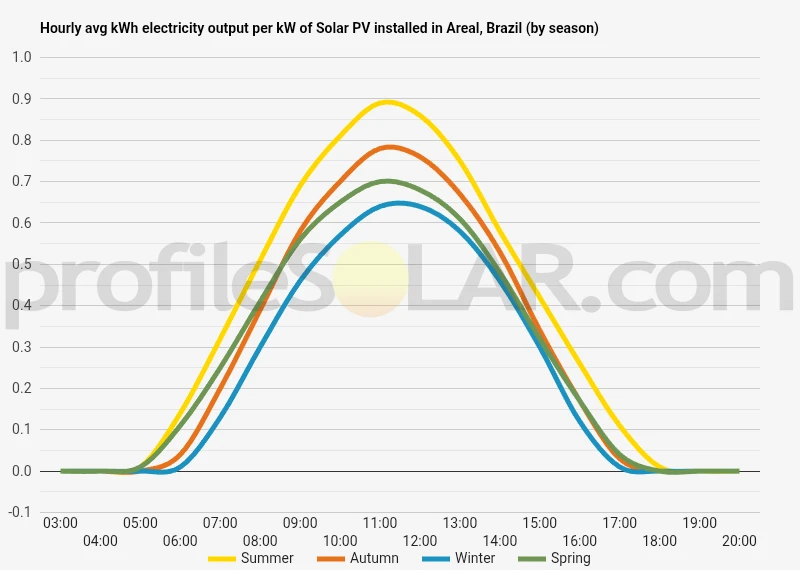

Solar output per kW of installed solar PV by season in Areal

Seasonal solar PV output for Latitude: -22.2309, Longitude: -43.1244 (Areal, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Areal, Brazil

To maximize your solar PV system's energy output in Areal, Brazil (Lat/Long -22.2309, -43.1244) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Areal, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Areal, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Areal, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Areal, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Areal, Brazil

Topographical Features of Areal, Brazil

Areal is situated in the mountainous region of Rio de Janeiro state, nestled within the Serra do Mar mountain range. The town sits at an elevation of approximately 400 meters above sea level, surrounded by rolling hills and steep-sided valleys that characterize this part of southeastern Brazil. The landscape is dominated by the Atlantic Forest biome, with dense vegetation covering much of the surrounding terrain.

The topography in this region is quite varied, featuring a combination of gentle slopes, moderate inclines, and some more dramatic elevation changes. The Serra do Mar creates a series of ridges and valleys that run roughly parallel to the Atlantic coast, approximately 100 kilometers inland. These mountains form part of the Brazilian Highlands, creating a landscape of undulating terrain with elevations ranging from 200 to over 1,000 meters in the immediate vicinity.

Water features play a significant role in shaping the local topography, with several small rivers and streams cutting through the valleys. The Paraíba do Sul River valley lies to the north of Areal, creating a broader, flatter corridor between the mountain ranges. This river system has carved out more level terrain over geological time, contrasting with the steeper slopes found in the immediate vicinity of the town.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Areal region would be the gentler slopes and plateaus found on the broader ridgelines of the surrounding hills. These elevated areas typically offer better exposure to sunlight throughout the day, as they are less likely to be shaded by adjacent terrain features. The moderate slopes of 5-15 degrees on these ridges would be ideal for solar panel installation, providing good solar exposure while remaining manageable for construction and maintenance activities.

The Paraíba do Sul River valley to the north presents another excellent opportunity for solar development. This area features relatively flat terrain with fewer topographical obstacles, making it easier to construct large solar arrays. The valley floor and lower terraces would be particularly well-suited for utility-scale installations, as the level ground would minimize grading requirements and reduce construction costs.

Areas to the east and southeast of Areal, where the terrain becomes more gently rolling before descending toward the coastal plain, would also be favorable for solar development. These locations benefit from southern exposure on north-facing slopes, which is optimal for solar collection in the Southern Hemisphere. The gradual topographical transitions in these areas would allow for larger, more contiguous solar installations compared to the steeper terrain immediately surrounding the town center.

Cleared agricultural land and pasturelands scattered throughout the region represent additional opportunities for solar development. Many of these areas have already been leveled or terraced for farming activities, reducing the site preparation required for solar installations. The existing road network serving these agricultural areas would also facilitate access for construction and ongoing maintenance of solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
