Solar Energy Potential in Arroio do Sal, Brazil

Arroio do Sal, a location in southern Brazil, offers reasonably good conditions for solar energy generation throughout the year, though with notable seasonal variations. This coastal town in the Southern Sub Tropics experiences its highest solar production during summer months, with an impressive 6.96kWh per day for each kilowatt of installed solar capacity. The seasonal pattern shows a clear fluctuation in energy production. Spring performs quite well with 5.75kWh/day, while autumn drops to 4.53kWh/day. Winter represents the lowest production period with 3.25kWh/day per installed kilowatt. This winter reduction is significant but still provides usable energy output.

Optimal Panel Installation

For fixed solar panel installations in Arroio do Sal, the ideal tilt angle to maximize year-round energy production is 26 degrees facing North. This specific angle has been calculated to optimize annual solar capture based on the location's position in the Southern Hemisphere.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Arroio do Sal:

• Salt air exposure from the coastal location can accelerate corrosion of solar equipment and mounting hardware
• Occasional strong coastal winds may stress mounting systems
• Seasonal fog or mist in morning hours, particularly in winter months
• Sand accumulation from nearby beaches can reduce panel efficiency

To mitigate these challenges, several preventative measures are recommended:

Preventative Installation Measures

Using marine-grade stainless steel mounting hardware and corrosion-resistant components is essential for this coastal environment. Regular cleaning schedules should be implemented to remove salt deposits and sand buildup on panel surfaces. Additionally, robust mounting systems designed to withstand coastal wind conditions should be selected. Solar inverters and electrical components should be installed in sealed, weather-resistant enclosures to protect against salt air infiltration. Finally, slightly increasing the recommended tilt angle may help with natural cleaning from rainfall, reducing maintenance requirements in this sandy coastal environment.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

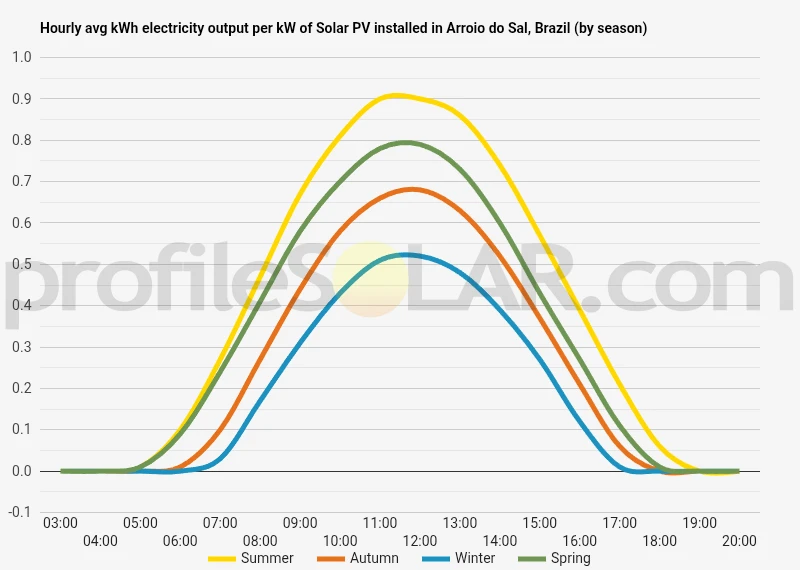

Solar output per kW of installed solar PV by season in Arroio Do Sal

Seasonal solar PV output for Latitude: -29.5274, Longitude: -49.8896 (Arroio Do Sal, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Arroio Do Sal, Brazil

To maximize your solar PV system's energy output in Arroio Do Sal, Brazil (Lat/Long -29.5274, -49.8896) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Arroio Do Sal, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Arroio Do Sal, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Arroio Do Sal, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Arroio Do Sal, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Arroio Do Sal, Brazil

Arroio do Sal is located in the southern Brazilian state of Rio Grande do Sul, nestled along the Atlantic coastline. The topography of this region is characterized primarily by coastal lowlands with extensive sandy beaches and dune systems that define the immediate shoreline. Moving inland from the coast, the terrain gradually transitions to a mix of low-lying plains and gentle rolling hills.

Coastal Features

The immediate coastal area of Arroio do Sal features long stretches of sandy beaches backed by natural dune formations. These dunes vary in height but typically range from a few meters to approximately 20 meters above sea level. The dune ecosystem is dynamic, with wind-shaped formations that have developed over centuries of coastal processes. Behind these primary dunes lies a relatively flat coastal plain with occasional wetland areas and lagoons.

Inland Topography

Moving westward from the coast, the landscape transitions to a more varied terrain. The coastal plain extends several kilometers inland before beginning to rise into the foothills of the Serra Geral mountain range. This transition zone features increasingly undulating terrain with elevations gradually increasing from near sea level to approximately 100-200 meters. The soil composition changes from predominantly sandy coastal soils to more fertile clay and loam mixtures as one moves inland.

Regional Landforms

The broader region surrounding Arroio do Sal includes significant water bodies such as the Lagoa dos Patos to the south, which is one of the largest lagoons in Brazil. To the west, the terrain becomes more pronounced as it approaches the Serra Geral, a mountain range that forms part of the Great Escarpment of southern Brazil. This escarpment rises dramatically from the coastal plains, reaching heights of over 900 meters in some areas.

Vegetation and Land Cover

The natural vegetation varies considerably across the topographic gradient. The immediate coastal areas feature typical beach and dune vegetation adapted to sandy, saline conditions. Moving inland, the vegetation transitions to coastal shrublands and eventually to patches of Atlantic Forest remnants in the higher elevation areas. Much of the original vegetation has been modified by agricultural activities, particularly cattle ranching and crop production in the flatter inland areas.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas near Arroio do Sal present favorable conditions:

Inland Plains

The relatively flat plains located 5-15 kilometers inland from the coast offer promising conditions for solar PV development. These areas benefit from stable ground conditions, minimal flooding risk, and reduced exposure to salt spray from the ocean. The topography here features gentle slopes with predominantly south-facing aspects (in the Southern Hemisphere, north-facing slopes receive more direct sunlight, but the gentle nature of the terrain in this region means aspect is less critical than in more mountainous regions).

Elevated Plateaus

As the terrain begins to rise toward the Serra Geral, there are several elevated plateau areas with favorable conditions for solar installations. These higher elevation sites often experience less coastal fog than locations directly on the shoreline, potentially increasing solar exposure. The plateaus typically have good drainage characteristics and stable geological foundations suitable for supporting solar array infrastructure.

Agricultural Transition Zones

The transitional zones between agricultural lands and less productive areas offer opportunities for solar development with minimal disruption to prime agricultural production. These areas often feature slightly undulating terrain with well-drained soils and existing access to transportation infrastructure. Many of these transition zones are already partially cleared, reducing the environmental impact of new solar installations.

Considerations for Solar Development

When evaluating specific sites within these broader areas, several topographic factors merit consideration. Gentle slopes facing north (between northeast and northwest) typically receive optimal solar radiation in this Southern Hemisphere location. Areas with minimal shading from nearby hills or tall vegetation will maximize energy production potential. Additionally, locations with natural wind protection may reduce maintenance requirements and structural stress on solar arrays while still maintaining good ventilation to prevent overheating of panels. The region's proximity to existing electrical transmission infrastructure also influences ideal siting, with the most practical development areas often being those that balance optimal topographic conditions with reasonable connection distances to the grid.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
