Atibaia, São Paulo, Brazil, located at latitude -23.1156 and longitude -46.5461, offers a favorable environment for solar energy generation throughout the year. This tropical location benefits from consistent sunlight, with seasonal variations primarily characterized by wet and dry periods rather than significant temperature fluctuations.

Seasonal Solar Performance

The solar energy output in Atibaia demonstrates a relatively stable pattern across the seasons: Summer: 6.02 kWh/day Autumn: 5.11 kWh/day Winter: 4.21 kWh/day Spring: 5.31 kWh/day These figures represent the expected daily electricity output per kilowatt of installed solar capacity. The highest production occurs during the summer months, while winter sees a slight dip in output. However, the difference between the highest and lowest seasonal outputs is not as dramatic as in locations farther from the equator.

Optimal Panel Positioning

For fixed solar panel installations in Atibaia, São Paulo, the ideal tilt angle to maximize year-round production is 21 degrees facing North. This angle takes into account the location's latitude and the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Environmental Considerations

While Atibaia's climate is generally conducive to solar energy production, there are a few factors to consider: 1. Rainfall: The region experiences a wet season, typically from October to March. Heavy cloud cover during this period may temporarily reduce solar output. 2. Dust and pollen: The area's vegetation and occasional dry spells can lead to dust and pollen accumulation on solar panels. To mitigate these factors, consider implementing the following measures:

• Install panels at the recommended 21-degree tilt to facilitate natural cleaning during rainfall.
• Implement a regular cleaning schedule, especially during drier periods.
• Use anti-soiling coatings on panels to reduce dust and pollen adhesion.
• Consider a tracking system to maximize energy capture, particularly during cloudy periods.

Overall, Atibaia presents an excellent location for solar PV installations, with consistent year-round production and manageable environmental challenges. With proper planning and maintenance, solar energy systems in this area can provide reliable and efficient power generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

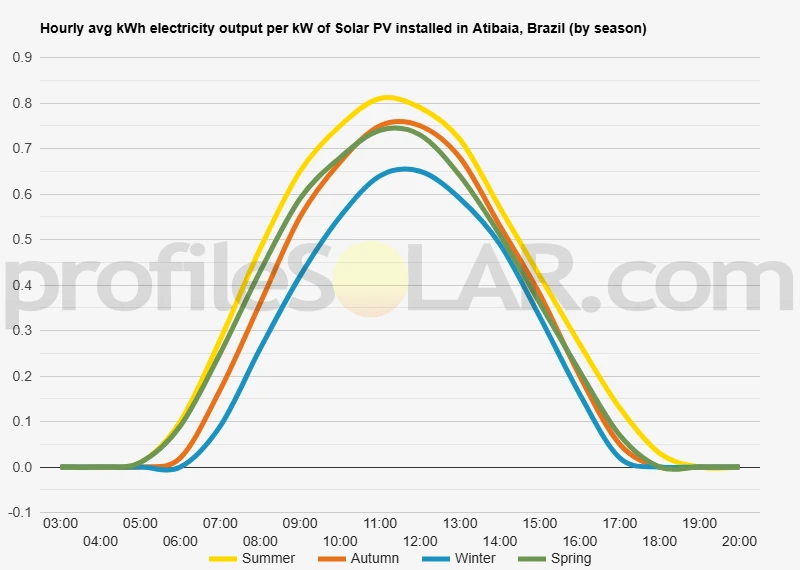

Solar output per kW of installed solar PV by season in Atibaia

Seasonal solar PV output for Latitude: -23.1156, Longitude: -46.5461 (Atibaia, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Atibaia, Brazil

To maximize your solar PV system's energy output in Atibaia, Brazil (Lat/Long -23.1156, -46.5461) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Atibaia, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Atibaia, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Atibaia, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Atibaia, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Atibaia, Brazil

The topography around Atibaia, Brazil, is characterized by a diverse landscape that combines rolling hills, valleys, and some more mountainous terrain. Located in the southeastern part of São Paulo state, Atibaia sits at an elevation of approximately 800 meters above sea level. The region is part of the Serra da Mantiqueira mountain range, which influences its topographical features. The area surrounding Atibaia is known for its undulating terrain, with gentle slopes and rounded hills interspersed with small valleys. These hills are often covered with lush vegetation, including patches of Atlantic Forest remnants and areas of reforestation. The landscape is dotted with numerous streams and small rivers, which have carved out shallow valleys over time. To the north and east of Atibaia, the terrain becomes more rugged and mountainous, with higher elevations and steeper slopes. This area is part of the Serra da Mantiqueira proper, where peaks can reach heights of over 1,000 meters. The mountains in this region create a picturesque backdrop and contribute to the area's mild climate.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar PV projects would typically be: Areas with relatively flat or gently sloping terrain are preferable, as they require less land preparation and are easier to develop. Some of the rolling hills to the south and west of Atibaia might offer suitable sites, provided they have the right orientation to maximize sun exposure. Regions with minimal shading from surrounding mountains or tall vegetation would be advantageous. The more open areas away from the denser forested regions and outside of the deeper valleys would likely be more suitable. Locations with good road access for construction and maintenance would be ideal. Areas closer to existing infrastructure and away from the more remote mountainous regions would be practical choices. It's important to note that while the topography around Atibaia offers some potential for solar PV development, any large-scale project would need to carefully consider environmental impacts, land use regulations, and the preservation of the region's natural beauty. Additionally, detailed site-specific studies would be necessary to determine the most optimal locations for solar PV installations in this area.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
