Solar Energy Potential in Barbacena, Minas Gerais, Brazil

Barbacena, Minas Gerais, Brazil, located at latitude -21.2528 and longitude -43.8394, offers a promising location for solar photovoltaic (PV) energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations defined more by wet and dry periods rather than extreme temperature fluctuations. The solar energy production potential shows moderate seasonal variation. During summer months, solar panels can generate approximately 6.08 kWh per day for each kilowatt of installed capacity. This drops slightly to 5.25 kWh/day during autumn and reaches its lowest point in winter at 4.56 kWh/day. Production rebounds in spring to 5.18 kWh/day per installed kilowatt.

Optimal Panel Positioning

For fixed solar panel installations in Barbacena, Minas Gerais, the ideal tilt angle is 20 degrees facing North. This specific angle maximizes year-round energy production by optimizing the capture of available sunlight throughout the changing seasons. Unlike locations in the Northern Hemisphere where panels typically face south, Barbacena's position in the Southern Hemisphere means north-facing panels receive optimal sunlight exposure.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Barbacena:

• Seasonal rainfall: The region experiences a distinct wet season that can reduce solar efficiency due to cloud cover and rainfall. Installing panels with good drainage systems and water-resistant components is advisable.
• Dust accumulation: During dry seasons, dust can accumulate on panels, reducing efficiency by up to 10-15%. Regular cleaning maintenance or automated cleaning systems can mitigate this issue.
• Occasional hail: Though not frequent, hail storms can occur and potentially damage panels. Selecting impact-resistant panels and ensuring proper insurance coverage is recommended.

Maximizing Solar Potential

Despite these challenges, Barbacena's solar potential remains strong. The relatively small difference between winter (4.56 kWh/day) and summer (6.08 kWh/day) production indicates good year-round generation capabilities. The most productive period is clearly summer, making this an excellent time for energy-intensive activities if consumption patterns can be adjusted seasonally. To maximize production, consider installing panels with high-temperature tolerance, as tropical locations can experience heat that reduces panel efficiency. Additionally, monitoring systems can help identify when panels require cleaning or maintenance to maintain optimal performance throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

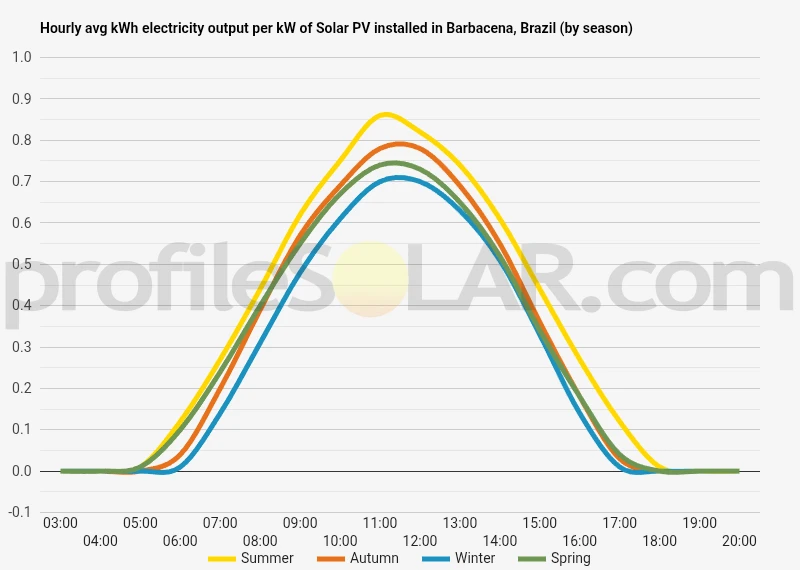

Solar output per kW of installed solar PV by season in Barbacena

Seasonal solar PV output for Latitude: -21.2528, Longitude: -43.8394 (Barbacena, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Barbacena, Brazil

To maximize your solar PV system's energy output in Barbacena, Brazil (Lat/Long -21.2528, -43.8394) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barbacena, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barbacena, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barbacena, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barbacena, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barbacena, Brazil

Barbacena, situated in the state of Minas Gerais, Brazil, presents a diverse topographical landscape characterized by rolling hills, valleys, and elevated plateaus. The region forms part of the larger Serra da Mantiqueira mountain range, which contributes to its undulating terrain. The elevation around Barbacena averages approximately 1,160 meters (3,800 feet) above sea level, making it significantly higher than many other Brazilian municipalities. The landscape surrounding Barbacena features a combination of steep slopes and gentler inclines, creating a mosaic of terrain types. Numerous small rivers and streams cut through the area, forming natural drainage systems that have, over time, carved valleys between the hills. This hilly topography has historically influenced human settlement patterns and agricultural practices in the region.

Soil and Vegetation Characteristics

The soils around Barbacena are predominantly lateritic in nature, with varying degrees of fertility. Natural vegetation in the region consists of a transition between Atlantic Forest remnants and cerrado (savanna-like) formations, though much of the original vegetation has been modified by agricultural activities, particularly coffee cultivation and dairy farming, which have shaped the landscape for generations.

Potential Areas for Solar PV Development

When considering large-scale solar photovoltaic (PV) installations near Barbacena, several topographical factors become important. The most suitable areas would be: The elevated plateaus to the east and southeast of Barbacena offer relatively flat expanses with minimal shading from surrounding terrain. These areas benefit from good solar exposure throughout the day and have fewer competing land uses than the more fertile valleys. The gently sloping hillsides facing north receive more direct sunlight in the Southern Hemisphere and would maximize solar energy capture. Areas with slopes between 5-15 degrees oriented northward present optimal conditions for solar panel placement without requiring excessive grading or terrain modification. The drier regions southwest of Barbacena, where the terrain transitions toward a more cerrado-like environment, offer advantages for solar development. These areas typically have less agricultural value and more consistent solar exposure due to reduced cloud formation compared to the more humid eastern sections.

Topographical Challenges

Despite these favorable areas, the region does present certain topographical challenges for large-scale solar development. The pronounced relief in many parts means that morning and afternoon shading from adjacent hills could reduce overall energy production in some locations. Additionally, some of the steeper slopes would require significant earthwork to create suitable foundations for solar arrays, potentially increasing installation costs and environmental impacts. The numerous water courses throughout the region create natural divisions in the landscape that would need to be accommodated in any large-scale development plans. These waterways are also associated with areas of higher biodiversity and may be subject to environmental protection measures. In conclusion, while the topography around Barbacena presents some challenges for solar PV development, the region does contain several promising areas, particularly on the northern-facing gentle slopes and higher plateaus where solar exposure is maximized and land-use conflicts are minimized.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
