Barbalha, Ceará, Brazil represents an excellent location for year-round solar energy generation. Located in the tropical region of northeastern Brazil, this area benefits from consistent sunlight throughout the year, with seasonal variations driven more by wet and dry periods than by dramatic changes in sun angle or daylight hours.

Solar Energy Performance

The solar energy output at Barbalha demonstrates remarkably consistent performance across all seasons. A solar installation can expect to generate 5.83 kWh per day per kW of installed capacity during summer, 5.87 kWh/day per kW in autumn, and 5.99 kWh/day per kW during winter months. Spring emerges as the peak production season, delivering an impressive 7.27 kWh per day per kW of installed solar capacity. This seasonal pattern makes spring the ideal time for maximum solar generation, likely coinciding with clearer skies and optimal atmospheric conditions. The relatively minor variation between the lowest performing season (summer) and highest (spring) demonstrates the location's reliability for consistent solar energy production throughout the year.

Optimal Installation Configuration

For fixed solar panel installations at Barbalha, Ceará, the ideal tilt angle is 7 degrees facing north. This shallow angle reflects the location's proximity to the equator, where the sun travels high overhead throughout the year. This optimal angle is calculated by analyzing daily solar elevation angles, accounting for Earth's elliptical orbit and weighting the angles based on actual solar irradiance data to maximize total annual energy production.

Environmental and Weather Challenges

Several significant environmental factors could impact solar production at this tropical location and require careful consideration during installation:

• Seasonal rainfall and humidity: The wet season brings heavy rains and high humidity levels that can reduce solar panel efficiency and create maintenance challenges
• Dust and particulate accumulation: Dry seasons often generate significant dust that settles on solar panels, reducing their light absorption capacity
• Tropical storms and high winds: The region may experience intense weather events that could damage improperly secured installations
• High temperatures: Consistent tropical heat can reduce solar panel efficiency and accelerate equipment degradation

Preventative Measures for Optimal Performance

To maximize energy production and system longevity at this location, several preventative measures should be implemented:

• Regular cleaning schedules: Establish frequent panel cleaning routines, particularly during dry seasons when dust accumulation is heaviest
• Enhanced mounting systems: Install robust mounting hardware designed to withstand high winds and potential storm conditions common in tropical regions
• Improved ventilation: Design installations with adequate airflow beneath panels to combat efficiency losses from high ambient temperatures
• Corrosion-resistant materials: Use marine-grade or tropical-rated components to resist degradation from high humidity and occasional salt air
• Drainage considerations: Ensure proper water runoff during heavy rainfall periods to prevent standing water and potential electrical issues

Despite these environmental challenges, Barbalha's consistent solar output and minimal seasonal variation make it a highly suitable location for solar energy generation, provided proper installation techniques and maintenance practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

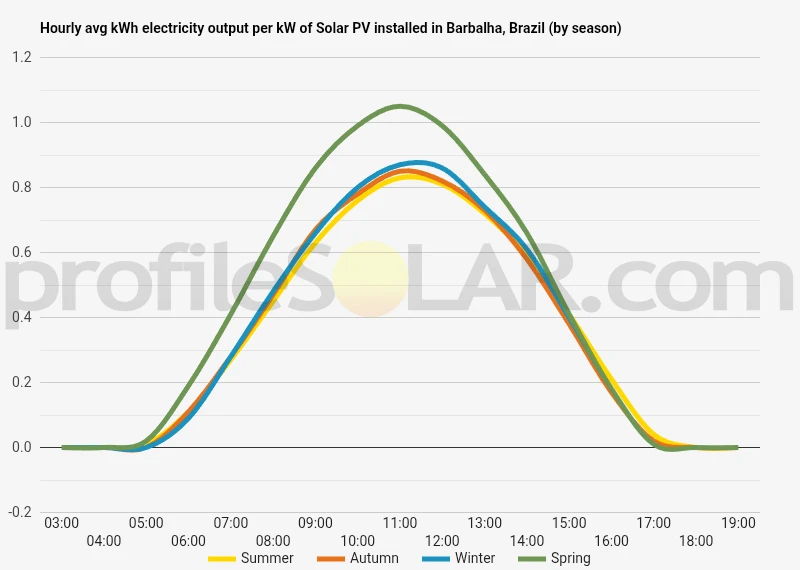

Solar output per kW of installed solar PV by season in Barbalha

Seasonal solar PV output for Latitude: -7.3111, Longitude: -39.3042 (Barbalha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Barbalha, Brazil

To maximize your solar PV system's energy output in Barbalha, Brazil (Lat/Long -7.3111, -39.3042) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barbalha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barbalha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	23° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barbalha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barbalha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barbalha, Brazil

Topographical Features Around Barbalha

Barbalha sits in the Cariri Valley of southern Ceará state, positioned within a distinctive geographical depression known as the Araripe Basin. The city lies at the foot of the impressive Chapada do Araripe, a prominent sedimentary plateau that rises dramatically from the surrounding lowlands. This ancient geological formation creates a striking contrast between the elevated plateau above and the relatively flat valley floor where Barbalha is located. The immediate area around Barbalha is characterized by gently undulating terrain with elevations typically ranging from 400 to 500 meters above sea level. The landscape features a mix of flat to moderately sloping areas interspersed with small hills and ridges. To the south, the terrain gradually rises toward the base of the Chapada do Araripe escarpment, which towers several hundred meters above the valley floor. The region benefits from a unique microclimate created by the orographic effect of the plateau, which helps trap moisture and creates more favorable conditions than the surrounding semi-arid Caatinga environment. This topographical arrangement has resulted in areas of relatively dense vegetation and agricultural activity, particularly in the lower elevations near water sources.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie in the flatter portions of the Cariri Valley, particularly to the north and northeast of Barbalha. These areas offer the ideal combination of minimal topographical obstacles, reduced grading requirements, and sufficient space for large arrays. The gentle slopes in these directions provide excellent drainage while maintaining the relatively level terrain essential for cost-effective solar farm construction. The valley floor areas extending toward neighboring municipalities like Juazeiro do Norte and Crato present particularly attractive opportunities. These locations feature expansive flat to gently rolling terrain with minimal vegetation coverage, reducing both land preparation costs and environmental impact concerns. The sedimentary geology of the basin provides stable foundation conditions suitable for supporting large-scale solar infrastructure. Areas closer to the Chapada do Araripe escarpment, while scenic, present challenges for large solar installations due to increased slope angles and potential shading effects from the plateau's imposing presence. The terrain becomes more complex as it approaches the base of the escarpment, with steeper grades and more pronounced topographical variation that would complicate construction and reduce overall efficiency. The eastern and western extensions of the valley also offer promising locations, where the terrain remains relatively flat but moves away from the more densely populated and agriculturally intensive areas immediately surrounding Barbalha. These peripheral locations provide the space needed for utility-scale developments while maintaining the favorable topographical conditions that make the Cariri Valley attractive for solar energy projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
