Barbosa Ferraz, Paraná, Brazil presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations that property owners should consider when planning solar installations.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant seasonal fluctuation. Summer provides the strongest performance at 7.03kWh per day per kW of installed solar capacity, making it the peak season for energy production. Spring follows as the second-best period with 6.05kWh daily output per kW. Autumn sees a moderate decline to 5.42kWh per day per kW, while winter represents the lowest production period at 4.18kWh daily per kW. Despite this winter dip, the location maintains reasonable solar generation throughout the year, with winter production still reaching about 60% of summer levels.

Optimal Panel Configuration

For maximum year-round energy production at Barbosa Ferraz, Paraná, solar panels should be installed at a fixed tilt angle of 21 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for daily solar potential based on actual irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in this region could impact solar energy generation:

• High humidity levels common in subtropical climates can reduce panel efficiency and create more frequent cleaning requirements
• Heavy rainfall during certain seasons may temporarily reduce output and necessitate proper drainage systems
• Potential for severe weather events including strong winds and hail that could damage installations
• Dust and pollen accumulation during dry periods that can coat panels and reduce efficiency

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies prove beneficial:

• Install panels with adequate spacing for air circulation to combat humidity-related efficiency losses
• Design mounting systems with proper drainage channels to prevent water accumulation
• Use reinforced mounting hardware rated for high wind loads and impact resistance
• Implement regular cleaning schedules, particularly during dusty seasons
• Consider anti-soiling coatings on panels to reduce maintenance frequency
• Ensure proper grounding and surge protection for electrical safety during storms

Overall, Barbosa Ferraz offers solid potential for solar energy generation, particularly during the warmer months, making it a viable location for both residential and commercial solar installations when properly designed and maintained.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

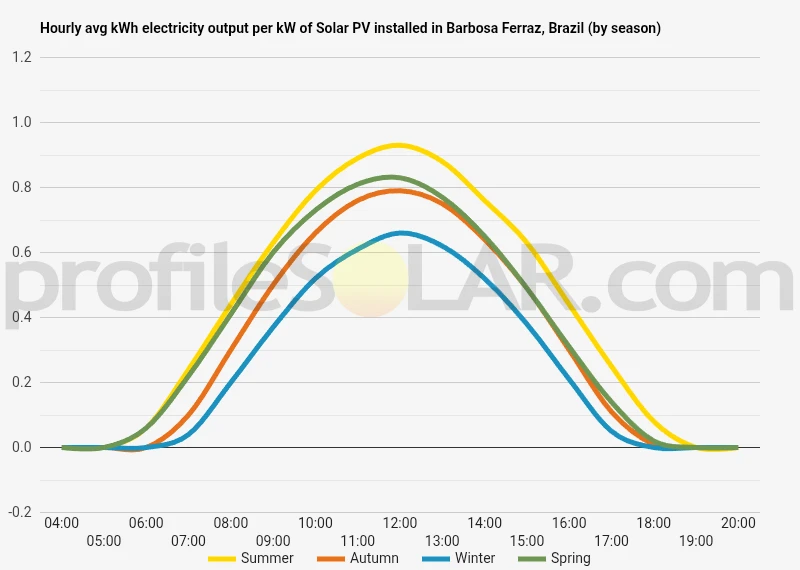

Solar output per kW of installed solar PV by season in Barbosa Ferraz

Seasonal solar PV output for Latitude: -24.0607, Longitude: -52.0592 (Barbosa Ferraz, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Barbosa Ferraz, Brazil

To maximize your solar PV system's energy output in Barbosa Ferraz, Brazil (Lat/Long -24.0607, -52.0592) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barbosa Ferraz, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barbosa Ferraz, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	30° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barbosa Ferraz, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barbosa Ferraz, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barbosa Ferraz, Brazil

Topography Around Barbosa Ferraz

Barbosa Ferraz sits in the northwestern region of Paraná state, Brazil, within a landscape characterized by gently rolling hills and relatively modest elevation changes. The terrain around this municipality features the typical topography of the Paraná Plateau, with elevations generally ranging between 400 and 600 meters above sea level. The area displays a predominantly agricultural character, with expansive farmlands stretching across undulating plains that are punctuated by shallow valleys carved by small streams and tributaries.

The region's topography is notably gentle, with gradual slopes and broad, open spaces that have been extensively cleared for agricultural purposes, particularly soybean and corn cultivation. Small patches of Atlantic Forest remnants can be found scattered throughout the landscape, typically occupying steeper slopes or areas less suitable for farming. The drainage pattern consists of numerous small waterways that flow generally westward toward the Paraná River system, creating a network of shallow valleys separated by low ridges.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Barbosa Ferraz would be the elevated plateaus and gentle south-facing slopes that dominate the regional landscape. These areas offer several advantages, including relatively flat to gently sloping terrain that minimizes grading requirements and construction costs while providing excellent solar exposure throughout the day.

The extensive agricultural plains surrounding the municipality present ideal conditions for solar development, as they are already cleared of vegetation and offer large, contiguous parcels of land. These areas typically feature stable soils and good drainage, which are essential for supporting solar panel mounting systems. The gentle topography also facilitates easier access for construction equipment and maintenance vehicles.

Areas slightly elevated above the immediate flood plains of local streams would be particularly well-suited for solar installations, as they combine good solar exposure with reduced risk of flooding during heavy rainfall periods. The rolling hills to the east and south of Barbosa Ferraz offer especially favorable conditions, with their combination of cleared agricultural land, stable terrain, and optimal orientation for capturing solar radiation.

The existing agricultural infrastructure in the region, including farm roads and proximity to electrical transmission lines, would support the development of solar facilities. Many of the current farmland areas could potentially be converted to solar use or developed as agrivoltaic systems that combine solar energy production with continued agricultural activities beneath the panels.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
