Barbosa, São Paulo, Brazil presents a highly favorable location for year-round solar PV energy generation. Positioned in the tropics at coordinates -21.2989, -49.9231, this location benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Performance

The solar energy output at Barbosa demonstrates strong year-round performance with notable seasonal variation. Summer delivers the highest production at 6.99kWh per day per kW of installed solar capacity, making it the peak generation season. Spring follows closely with 6.52kWh/day per kW, representing the second-best period for solar energy production. Autumn sees a moderate decrease to 5.73kWh/day per kW, while winter represents the lowest production period at 4.98kWh/day per kW. Despite this seasonal dip, winter production still maintains a respectable output level, indicating that solar installations remain viable throughout the entire year. For optimal performance, fixed solar panels at this location should be tilted at 20 degrees North to maximize total year-round production. This angle has been calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data to account for Earth's elliptical orbit.

Environmental and Weather Challenges

Several significant environmental factors could impact solar production efficiency in Barbosa. The tropical climate brings intense rainfall during wet seasons, which can reduce solar irradiance and potentially cause water damage to inadequately protected systems. High humidity levels throughout much of the year can accelerate corrosion of metal components and reduce electrical efficiency. The region's agricultural activities may contribute to dust accumulation on solar panels, particularly during dry seasons when soil particles become airborne. Additionally, the tropical environment supports rapid vegetation growth that could create shading issues if not properly managed during installation planning.

Preventative Installation Measures

To maximize energy production despite these challenges, several preventative measures should be implemented during solar installation:

• Install high-quality weatherproofing and drainage systems to protect against heavy tropical rainfall
• Use corrosion-resistant materials and coatings specifically designed for high-humidity environments
• Implement regular cleaning schedules to remove dust and debris accumulation
• Ensure adequate spacing between panels for air circulation to reduce moisture buildup
• Plan installation sites away from fast-growing vegetation or include vegetation management in maintenance plans

Proper grounding systems become especially critical in this tropical environment due to increased lightning risk during wet seasons. Additionally, selecting panels and inverters rated for high-temperature and high-humidity operation will ensure consistent performance throughout the year's varying conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

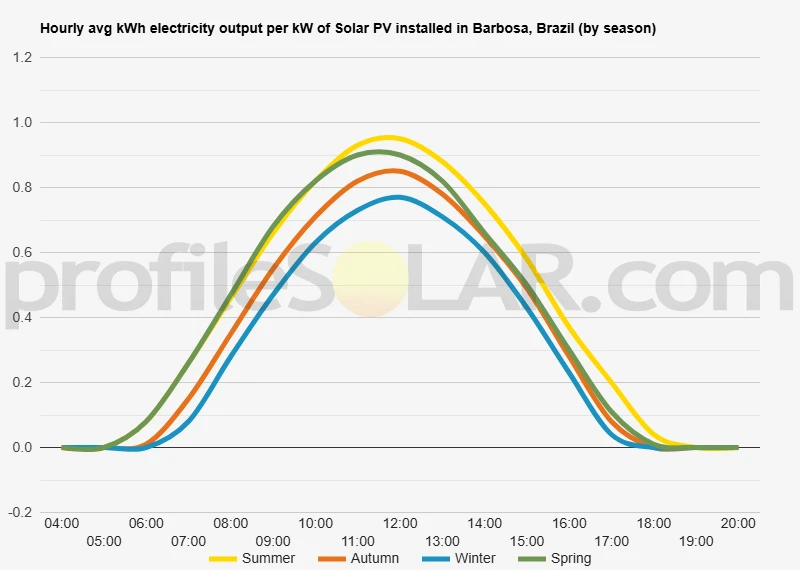

Solar output per kW of installed solar PV by season in Barbosa

Seasonal solar PV output for Latitude: -21.2989, Longitude: -49.9231 (Barbosa, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Barbosa, Brazil

To maximize your solar PV system's energy output in Barbosa, Brazil (Lat/Long -21.2989, -49.9231) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barbosa, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barbosa, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barbosa, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barbosa, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barbosa, Brazil

Topographical Features Around Barbosa

The region surrounding Barbosa in São Paulo state features gently rolling hills and undulating terrain typical of the western interior of Brazil. The landscape is characterized by broad, sweeping valleys interspersed with low ridges and modest elevations that rarely exceed 200 meters above the surrounding plains. This area sits within the Paraná River basin, where the topography has been shaped by ancient geological processes and erosion patterns that have created relatively stable, well-drained terrain.

The local geography consists primarily of sedimentary formations with gradual slopes and wide plateaus. Agricultural activities have historically dominated this landscape, with extensive areas of cleared farmland creating open expanses across the rolling countryside. The terrain generally slopes in a northwestern direction toward the Paraná River system, with numerous small tributaries and seasonal waterways carving shallow channels through the landscape.

Elevation changes throughout the region are gradual rather than dramatic, with most areas experiencing gentle transitions between high and low points. The soil composition includes fertile clay and sandy loam deposits that have supported decades of intensive farming, particularly sugar cane cultivation, which has resulted in large cleared areas with minimal tree coverage.

Optimal Areas for Large-Scale Solar Development

The most promising locations for major solar installations lie on the broad, elevated plateaus that stretch across the western and southwestern portions of the area. These elevated plains offer several advantages, including consistent exposure to sunlight throughout the day and minimal shading from topographical features. The gentle, uniform slopes across these plateaus provide excellent drainage while maintaining stable ground conditions suitable for mounting large arrays of photovoltaic panels.

Particularly well-suited areas include the expansive cleared agricultural lands that extend northwest of Barbosa toward the Tietê River corridor. These locations combine favorable topographical conditions with existing infrastructure access and minimal environmental obstacles. The terrain in these areas typically features slopes of less than five degrees, which is ideal for solar panel installation and maintenance operations.

The elevated ridges running roughly east-west through the region also present excellent opportunities for solar development. These ridge systems offer natural wind exposure that can help cool solar panels and improve efficiency, while their elevation provides clear sightlines in all directions. The consistent elevation across these ridge tops eliminates concerns about shadows from adjacent hills or valleys.

Areas near existing agricultural clearings benefit from established road networks and electrical infrastructure, reducing the complexity and cost of connecting large solar installations to the power grid. The stable geological conditions throughout most of the region, combined with good drainage characteristics, minimize foundation requirements and reduce long-term maintenance concerns for large-scale solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
