Solar Energy Potential in Barra Mansa, Brazil

Barra Mansa, Brazil, located in the tropical region at latitude -22.5423, longitude -44.1702, offers promising conditions for solar energy generation throughout the year. This location benefits from the tropical positioning where sunlight remains relatively consistent across seasons, though with notable variations between wet and dry periods. The solar energy production potential at this location shows a moderate seasonal fluctuation. During summer months, solar panels can generate approximately 6.15 kWh per day for each kilowatt of installed capacity, representing the peak production period. As autumn arrives, the generation capacity decreases slightly to 5.24 kWh per day. Winter brings the lowest production at 4.54 kWh per day, before climbing back to 5.32 kWh per day during spring. For maximizing solar energy capture at this Barra Mansa location, fixed solar panels should be installed at a tilt angle of 21 degrees facing North. This specific angle has been calculated to optimize year-round energy production based on the site's latitude and seasonal solar patterns.

Seasonal Considerations

The most productive period for solar generation in Barra Mansa occurs during the summer months when daily output reaches 6.15 kWh per installed kilowatt. This represents approximately 35% more energy production compared to winter months, which see the lowest generation at 4.54 kWh per day. Spring and autumn serve as transitional periods with moderate production levels. Despite the winter showing reduced output, it's worth noting that even during this "low" season, the production remains substantial compared to many non-tropical locations globally. This highlights Barra Mansa's favorable position for year-round solar energy generation.

Environmental and Weather Factors

Several environmental factors could potentially impact solar production in Barra Mansa. The region experiences a tropical climate with distinct wet and dry seasons. During the wet season (typically summer), increased cloud cover and rainfall may occasionally reduce solar radiation reaching the panels, despite this being the period with highest potential output. The area may also experience dust accumulation during dry periods, which can gradually decrease panel efficiency if not addressed. Additionally, Barra Mansa's location in an industrial region of Rio de Janeiro state means air pollution could potentially reduce solar irradiance reaching the panels.

Preventative Measures

To maximize energy production in Barra Mansa, several preventative measures can be implemented:

• Install an automated cleaning system or establish a regular manual cleaning schedule to remove dust and debris, particularly during dry seasons
• Consider slightly elevated mounting structures to minimize dust accumulation and improve natural cleaning from rainfall
• Use high-quality panels with anti-reflective coatings that perform better in diffuse light conditions during cloudy periods
• Implement a robust lightning protection system, as thunderstorms are common in tropical regions
• Consider a small degree of oversizing the solar array to compensate for reduced production during cloudier periods

With these considerations addressed, Barra Mansa represents a favorable location for solar PV installations with good year-round production potential and relatively modest seasonal variations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

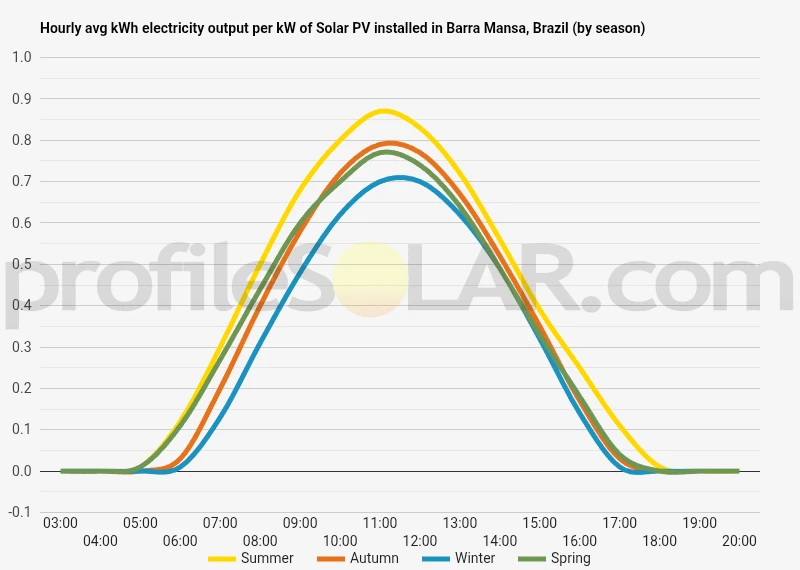

Solar output per kW of installed solar PV by season in Barra Mansa

Seasonal solar PV output for Latitude: -22.5423, Longitude: -44.1702 (Barra Mansa, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Barra Mansa, Brazil

To maximize your solar PV system's energy output in Barra Mansa, Brazil (Lat/Long -22.5423, -44.1702) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barra Mansa, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barra Mansa, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barra Mansa, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barra Mansa, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barra Mansa, Brazil

The topography of Barra Mansa, Brazil, is characterized by its location in a valley surrounded by rolling hills and mountains. Situated in the state of Rio de Janeiro, the city lies within the Paraíba Valley, with the Paraíba do Sul River flowing through it. This region forms part of the Serra da Mantiqueira mountain range system, creating a diverse landscape with varying elevations.

Valley and Riverine Features

Barra Mansa occupies a relatively flat area within the valley, but is encircled by more pronounced topographical features. The valley floor where the urban center is located sits at approximately 380 meters above sea level. The Paraíba do Sul River, which crosses the municipality, has shaped much of the local landscape through centuries of erosion, creating fertile plains along its banks.

Surrounding Elevations

Moving outward from the city center, the terrain gradually rises into hills and eventually into more substantial mountains. These elevations range from gentle slopes to steeper inclines, particularly toward the northwest and southeast. Some of the surrounding peaks reach heights of over 1,000 meters above sea level, creating significant topographical contrast within relatively short distances from the urban center.

Vegetation and Land Cover

The natural vegetation of the region belongs to the Atlantic Forest biome, though much of the original forest has been modified by human activity. The hillsides that remain less developed often feature secondary forest growth, while the flatter areas have largely been converted to urban use, pasture, or agricultural land. This pattern of land use follows the topographical contours, with development concentrated in the flatter valley areas.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several areas around Barra Mansa offer promising conditions based on topographical considerations:

Northwestern Plateaus

The elevated plateaus to the northwest of Barra Mansa present favorable conditions for solar farms. These areas feature relatively flat terrain at higher elevations, which reduces the risk of shading from surrounding features. The plateaus offer good exposure to the northern sun path (important in the Southern Hemisphere), and their elevation often places them above morning fog that can sometimes form in the valley.

Southeastern Slopes

The gentle slopes facing north and northeast in the southeastern part of the region also offer good potential for solar development. While these areas have more varied topography, they include many north-facing inclines that naturally optimize solar exposure throughout the day. The gradual nature of many of these slopes makes them accessible for development while maintaining good solar orientation.

Converted Agricultural Land

Some of the former agricultural areas on the periphery of Barra Mansa, particularly those on slightly elevated ground away from the flood-prone riverbanks, represent practical options for solar development. These lands often feature cleared, relatively level terrain with established access routes, reducing development costs while providing adequate solar exposure.

Topographical Challenges

Despite these opportunities, certain topographical features around Barra Mansa present challenges for solar development. The steeper mountain slopes, particularly those facing south or those in deep valleys, experience significant shading during parts of the day. Additionally, areas closest to the Paraíba do Sul River may be subject to periodic flooding and higher humidity levels, which are less ideal for solar infrastructure. The varied topography ultimately creates a mosaic of suitability for solar development, with the most promising areas being those that combine relatively flat or gently sloping terrain, northern exposure, elevation above potential valley fog, and accessibility for construction and maintenance equipment.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
