Barra da Estiva, Brazil represents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates -13.7178, -41.0838, this area benefits from consistent sunlight throughout most of the year, with seasons typically defined by wet and dry periods rather than significant temperature variations.

Solar Energy Production Performance

The solar energy output at Barra da Estiva shows remarkably strong performance across all seasons. Spring delivers the highest energy production at 6.38 kWh per day per kW of installed solar capacity, closely followed by autumn at 6.20 kWh per day. Summer maintains strong output at 6.06 kWh per day, while winter shows the lowest but still substantial production at 5.26 kWh per day. This seasonal pattern indicates that the location experiences optimal solar generation during the transitional seasons of spring and autumn, when atmospheric conditions are particularly favorable. Even during the winter months, the production remains robust due to the tropical latitude ensuring adequate sun exposure year-round.

Optimal Panel Installation

For maximum energy production from a fixed solar panel installation at Barra da Estiva, panels should be tilted at an angle of 13 degrees North. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining daily optimal panel positioning, and weighting these angles according to photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location, though most can be effectively managed with proper installation practices. The tropical climate brings significant rainfall during wet seasons, which can reduce solar output temporarily due to cloud cover and atmospheric moisture. However, this same rainfall provides a natural cleaning effect for solar panels, helping maintain their efficiency by washing away dust and debris. Dust accumulation during dry seasons represents a more persistent challenge, as the semi-arid characteristics of the region can lead to particles settling on panel surfaces and reducing light transmission. High humidity levels typical of tropical climates may also contribute to faster degradation of electrical components if not properly protected.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to prevent overheating and allow air circulation
• Use anti-soiling coatings on panel surfaces to reduce dust adhesion and make cleaning more effective
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Select electrical components rated for high humidity and temperature variations
• Ensure proper sealing and weatherproofing of all electrical connections and junction boxes

The consistent solar resource availability and relatively minor environmental challenges make Barra da Estiva a highly suitable location for solar energy projects. With appropriate installation techniques and maintenance practices, solar installations can achieve excellent long-term performance and energy production reliability throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

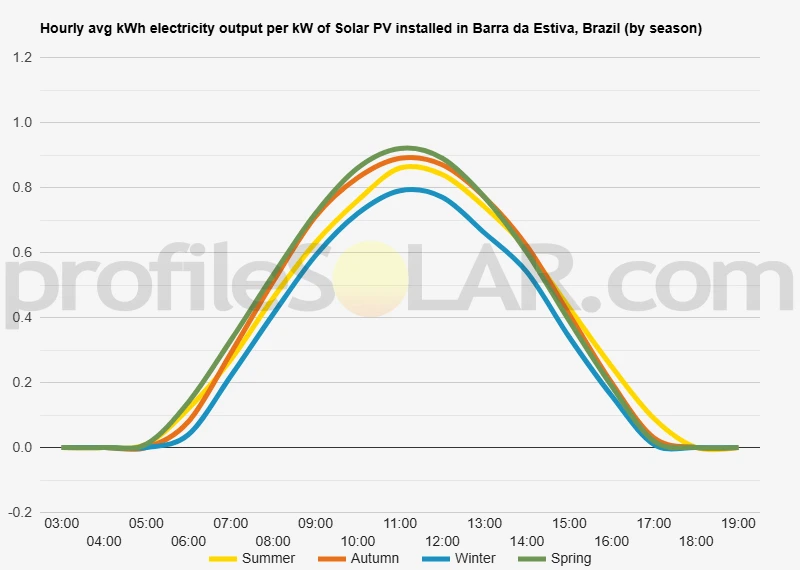

Solar output per kW of installed solar PV by season in Barra Da Estiva

Seasonal solar PV output for Latitude: -13.7178, Longitude: -41.0838 (Barra Da Estiva, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 13° North in Barra Da Estiva, Brazil

To maximize your solar PV system's energy output in Barra Da Estiva, Brazil (Lat/Long -13.7178, -41.0838) throughout the year, you should tilt your panels at an angle of 13° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barra Da Estiva, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barra Da Estiva, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° South in Summer	19° North in Autumn	29° North in Winter	8° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barra Da Estiva, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barra Da Estiva, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barra Da Estiva, Brazil

Topography of Barra da Estiva Region

Barra da Estiva sits in the heart of Bahia state's mountainous interior, positioned within the Chapada Diamantina highlands at an elevation of approximately 1,200 meters above sea level. This elevated location places the municipality on a plateau characterized by rolling hills, scattered rock outcroppings, and gentle undulations typical of the Brazilian highlands. The terrain around Barra da Estiva features a mix of open grasslands, sparse woodland, and agricultural areas that have been cleared over generations of farming activity.

The landscape is dominated by the broader Chapada Diamantina formation, an ancient geological structure that creates a relatively stable foundation with minimal seismic activity. The region experiences a semi-arid climate with distinct wet and dry seasons, contributing to the sparse vegetation cover that leaves much of the terrain exposed to direct sunlight throughout the year. The elevated plateau position provides excellent drainage, preventing waterlogging issues that might affect ground-mounted installations.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie on the flatter portions of the plateau extending northeast and southwest of Barra da Estiva. These areas offer gentle slopes of less than 5 degrees, which are ideal for minimizing grading costs while maintaining optimal panel orientation. The northeastern sector, in particular, presents large contiguous parcels of relatively unused land with minimal tree cover and good accessibility via existing rural roads.

Areas to the south and southeast of the municipality center show excellent potential due to their combination of flat topography and proximity to existing electrical infrastructure. The terrain in these zones consists primarily of natural grassland and low scrub vegetation, requiring minimal clearing for development. The stable geological conditions of the underlying bedrock provide solid foundations for mounting systems without concerns about subsidence or shifting.

The western approaches to Barra da Estiva also merit consideration, particularly where the plateau levels out into broad, open spaces suitable for utility-scale installations. These locations benefit from natural wind patterns that help keep panels cool, while the sparse population density minimizes potential conflicts with residential or commercial development. The existing road network provides adequate access for construction equipment and ongoing maintenance operations, though some improvements to secondary roads might be necessary for the largest installations.

Environmental considerations favor development in areas that have already been modified by agricultural activity rather than pristine natural habitats. Former pastureland and areas previously used for crop cultivation represent the most environmentally responsible choices for large-scale solar development, as they avoid disrupting native ecosystems while making productive use of underutilized agricultural land.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
