Barra, Bahia, Brazil represents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates -11.3183, -43.4688, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature changes seen in temperate climates.

Solar Energy Production Potential

The solar energy output data for Barra demonstrates remarkably consistent performance across all seasons. Winter produces the lowest output at 6.32 kWh per day per kW of installed solar capacity, while spring delivers the highest at 6.97 kWh per day per kW. Summer and autumn fall in between at 6.55 kWh and 6.44 kWh respectively. This consistency makes Barra highly suitable for solar installations, as there are no dramatic seasonal drops in production that might affect energy reliability. The variation between the best and worst performing seasons is only about 10%, which is exceptionally good for solar energy planning.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 11 degrees facing North. This calculation accounts for the Earth's elliptical orbit and weights the optimal angles based on daily solar irradiance potential throughout the year.

Environmental and Weather Factors

Several environmental factors could potentially impact solar energy production in Barra and require consideration during installation:

• Heavy rainfall during wet seasons - Can reduce solar irradiance and create temporary shading
• High humidity levels - May cause moisture-related issues with electrical components
• Dust and debris accumulation - Particularly during dry seasons when dust can settle on panels
• Tropical vegetation growth - Fast-growing plants may create shading issues over time

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Proper drainage systems - Install panels with adequate spacing and drainage to prevent water pooling
• Regular cleaning schedules - Establish routine maintenance to remove dust, debris, and organic matter
• Weatherproof electrical components - Use high-quality, moisture-resistant inverters and wiring systems rated for tropical conditions
• Strategic site selection - Choose locations with minimal vegetation interference and maintain clear zones around installations
• Elevated mounting systems - Install panels at sufficient height to allow air circulation and reduce ground-level moisture effects

Overall, Barra's tropical location provides excellent conditions for solar energy generation, with the main considerations being proper installation techniques to handle the tropical climate rather than any fundamental limitations in solar potential.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

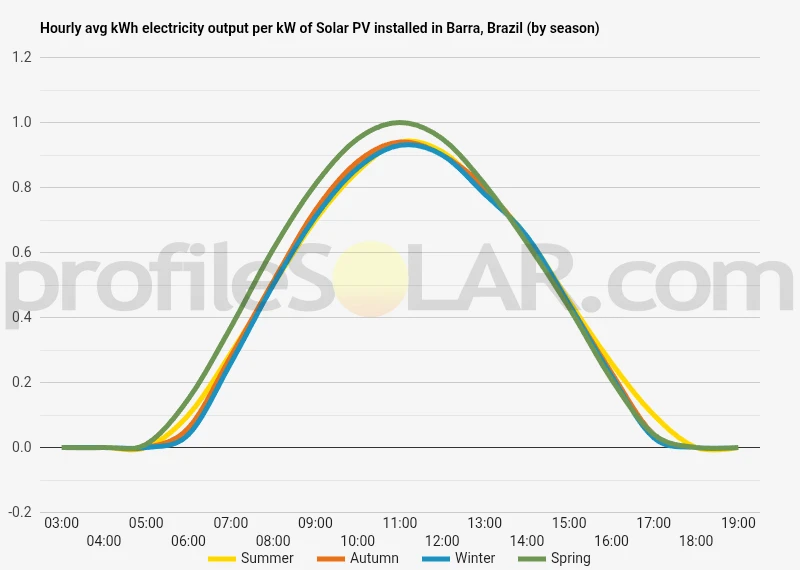

Solar output per kW of installed solar PV by season in Barra

Seasonal solar PV output for Latitude: -11.3183, Longitude: -43.4688 (Barra, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° North in Barra, Brazil

To maximize your solar PV system's energy output in Barra, Brazil (Lat/Long -11.3183, -43.4688) throughout the year, you should tilt your panels at an angle of 11° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barra, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barra, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	17° North in Autumn	27° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barra, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barra, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barra, Brazil

Topographical Features of Barra, Brazil

Barra is situated in the interior of Bahia state, within Brazil's semi-arid region known as the Caatinga. The landscape around this municipality is characterized by gently rolling hills and broad plateaus that form part of the Brazilian Highlands. The terrain consists primarily of flat to moderately undulating plains with elevations typically ranging between 400 and 600 meters above sea level.

The region displays the classic features of Brazil's northeastern sertão, with extensive areas of relatively level ground interrupted by low ridges and shallow valleys. Rocky outcrops and scattered inselbergs (isolated hills) dot the landscape, though these formations are generally not extensive enough to significantly impact large development projects. The underlying geology consists mainly of crystalline rocks from the Precambrian period, creating stable foundation conditions.

Water features in the area include seasonal streams and small rivers that flow intermittently, primarily during the rainy season. The São Francisco River system influences the broader regional hydrology, though Barra itself sits on higher ground away from major flooding zones. The natural vegetation consists of thorny scrubland typical of the Caatinga biome, with sparse tree cover and drought-resistant shrubs.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Barra would be the broad, flat plateau areas that extend to the north and east of the municipality. These elevated plains offer several advantages including minimal slope variations, which reduces grading and construction costs while maximizing the efficiency of panel arrays. The stable geological foundation in these areas provides excellent support for mounting systems without requiring extensive site preparation.

The relatively sparse vegetation cover across much of this terrain means that land clearing requirements would be minimal compared to more densely forested regions. The absence of significant water bodies or wetlands in the prime plateau areas eliminates most environmental complications that might restrict development. Additionally, the elevated position of these plateaus provides natural drainage, preventing water accumulation that could damage equipment or create maintenance challenges.

Areas to the southwest of Barra also present good opportunities, particularly where the terrain opens into broader valleys with gentle slopes. These locations combine reasonable accessibility with the flat topography essential for efficient solar installations. The key consideration for any large-scale development would be avoiding the scattered rocky outcrops and ensuring adequate distance from the few permanent water courses to respect environmental buffer zones.

Transportation access represents another crucial factor, and the areas closest to existing road infrastructure while maintaining optimal topographical conditions would be most practical for development. The region's generally stable weather patterns and low risk of extreme topographical challenges make it well-suited for the long-term infrastructure requirements of major solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
