Barras, Piauí, Brazil represents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates -4.1322, -42.3136, this area benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than the traditional temperature variations seen in temperate climates.

Solar Energy Production Potential

The solar energy output data for Barras shows remarkably consistent performance across all seasons. During summer months, solar panels can generate 5.91 kWh per day for each kilowatt of installed capacity. This output actually improves as the year progresses, with autumn producing 6.03 kWh/day per kW, winter reaching 6.44 kWh/day per kW, and spring delivering the highest output at 6.82 kWh/day per kW. Spring emerges as the optimal season for solar generation at this location, followed closely by winter. This pattern is typical for tropical locations where the sun's angle and atmospheric conditions create favorable conditions during these periods.

Optimal Panel Installation

For maximum year-round energy production at Barras, Piauí, solar panels should be installed at a fixed tilt angle of 5 degrees facing North. This relatively shallow angle is calculated to optimize total annual solar output by accounting for the sun's path throughout the year, daily solar elevation angles, and weighting these factors against actual solar irradiance data for the location.

Environmental and Weather Challenges

Several significant environmental factors could impact solar energy production in Barras:

• Heavy rainfall during wet seasons - Can reduce solar irradiance and create maintenance challenges
• High humidity levels - May lead to corrosion of equipment and reduced efficiency
• Dust and vegetation growth - Tropical conditions promote rapid plant growth and dust accumulation on panels
• Intense UV exposure - Can degrade panel materials more quickly than in temperate climates

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Use corrosion-resistant mounting systems - Aluminum or stainless steel components with proper coatings
• Ensure adequate drainage - Design installations to prevent water pooling around equipment
• Install panels with sufficient ground clearance - Allows air circulation and reduces humidity-related issues
• Plan for regular cleaning schedules - Monthly panel cleaning during dry seasons, more frequent during dusty periods
• Select high-quality panels rated for tropical conditions - Choose equipment specifically designed to withstand high UV exposure and humidity
• Implement vegetation management - Regular clearing of plants that could shade panels or interfere with equipment

Despite these environmental considerations, Barras remains an excellent location for solar energy generation due to its consistent high solar output throughout the year and relatively minor seasonal variation in energy production.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

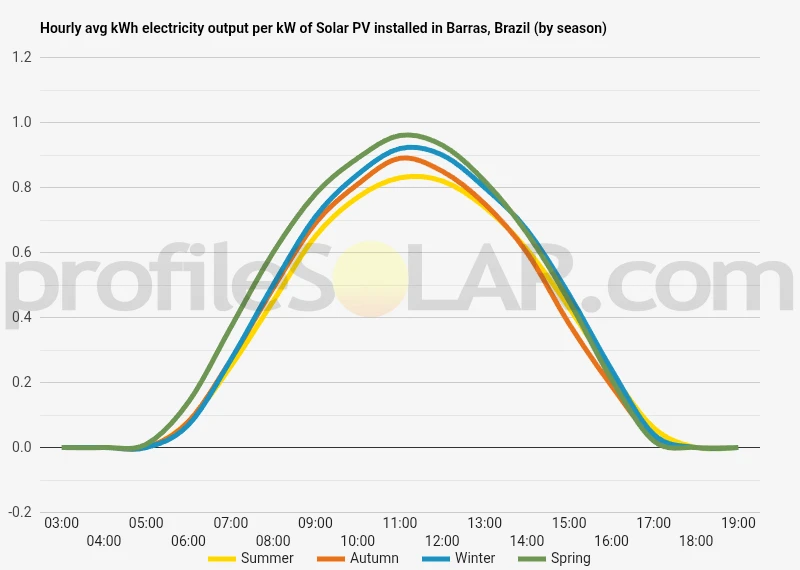

Solar output per kW of installed solar PV by season in Barras

Seasonal solar PV output for Latitude: -4.1322, Longitude: -42.3136 (Barras, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° North in Barras, Brazil

To maximize your solar PV system's energy output in Barras, Brazil (Lat/Long -4.1322, -42.3136) throughout the year, you should tilt your panels at an angle of 5° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Barras, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Barras, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	11° North in Autumn	20° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Barras, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Barras, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Barras, Brazil

Topographical Features Around Barras

The region surrounding Barras in Piauí state presents a relatively flat to gently undulating landscape characteristic of the Brazilian semi-arid interior. This area sits within the Caatinga biome, where the terrain consists primarily of low-lying plains interspersed with occasional small hills and ridges that rarely exceed 300 meters in elevation. The topography is generally stable and well-drained, with sparse vegetation dominated by drought-resistant shrubs and small trees that lose their leaves during dry periods. The landscape features gentle slopes and broad valleys that have been shaped by seasonal rainfall patterns over millennia. Rocky outcrops and scattered stone formations appear throughout the region, typical of the crystalline basement geology underlying much of northeastern Brazil. These geological features create a mosaic of relatively flat areas broken by low hills and occasional escarpments.

Drainage and Water Features

The area is drained by several intermittent streams and small rivers that flow primarily during the rainy season. These waterways have carved shallow valleys and depressions into the landscape, creating natural boundaries between elevated areas. During dry periods, many of these water courses become seasonal, leaving behind sandy beds and small pools. The overall drainage pattern tends to flow eastward toward larger river systems, creating a series of parallel valleys and low ridges.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broad, flat areas between the intermittent waterways, particularly those elevated slightly above the seasonal flood plains. These zones offer several advantages including stable ground conditions, minimal grading requirements, and reduced risk of flooding during intense rainfall events. The gently sloping plateaus and mesa-like formations scattered throughout the region present excellent opportunities for large solar arrays. These elevated areas typically have good drainage, stable soils, and minimal vegetation that would require clearing. The relatively uniform topography across these zones would allow for efficient panel placement and maintenance access roads. Areas with southern-facing slopes of 5-15 degrees would be particularly advantageous, as they provide natural optimization for solar panel positioning while maintaining accessibility for construction and maintenance vehicles. The rocky, well-consolidated soils in these locations offer excellent foundation conditions for mounting systems.

Infrastructure Considerations

The proximity to existing transportation networks becomes crucial when identifying the best sites for solar development. Areas within reasonable distance of the BR-230 highway and local road networks would significantly reduce development costs and improve long-term operational efficiency. The relatively flat terrain throughout most of the region means that new access roads can be constructed with minimal earthwork and engineering challenges. Large, contiguous parcels of land with minimal existing development or agricultural use would be most suitable for utility-scale solar installations. The semi-arid climate has limited intensive agriculture in many areas, leaving substantial tracts of underutilized land that could accommodate solar development while providing economic benefits to local communities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
